SERVO SELECTION AND DATA SHEETS

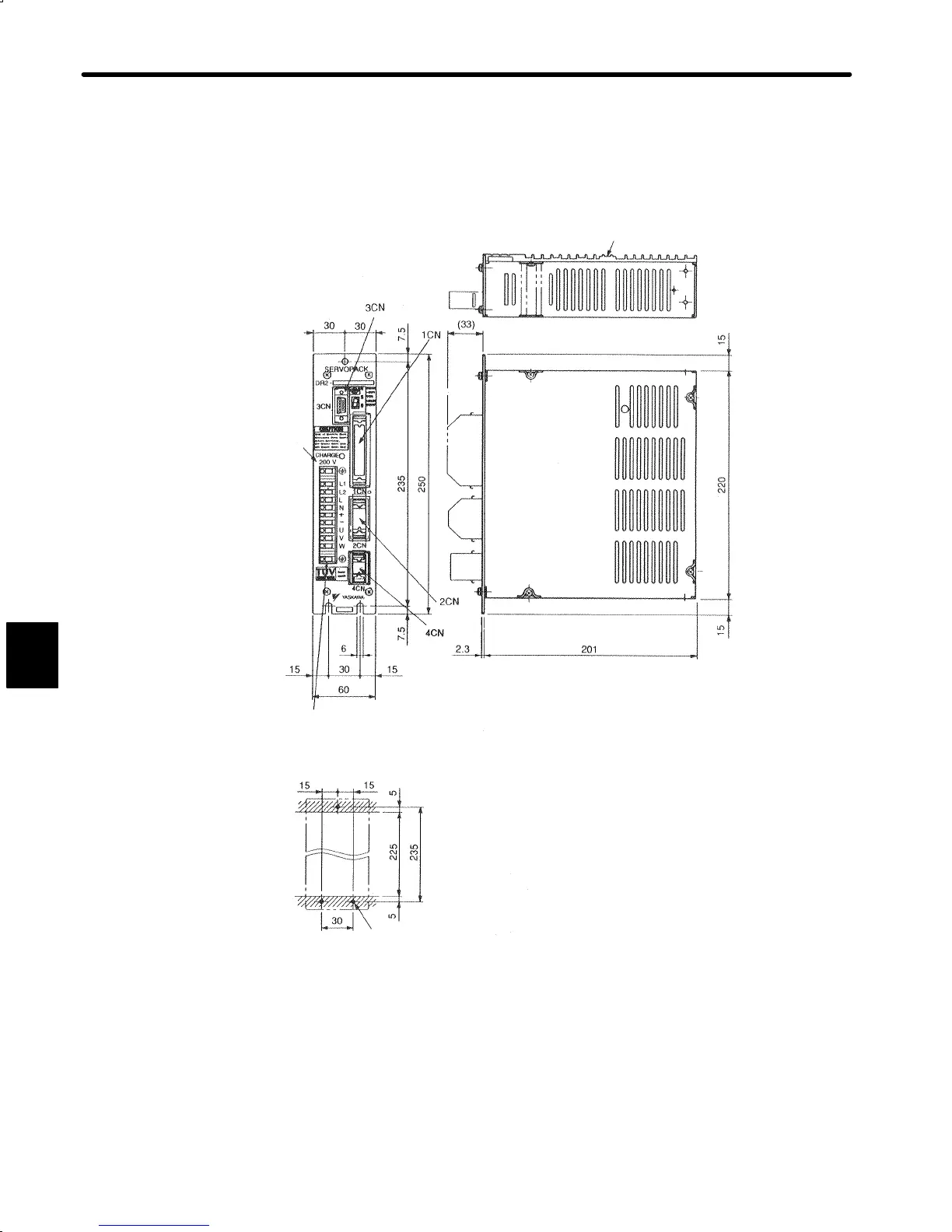

5.4.3 Servopack Dimensional Drawings cont.
332
c) Full-closed loop (option)
200V, 30W (0.04 HP) to 200W (0.27 HP) (Types: DR2-A3Aj-F to 02Aj-F)
100V, 30W (0.04 HP) to 100W (0.13 HP) (Types: DR2-A3Bj-F to 01Bj-F)
Approx. Mass: 2.5 kg (5.51 lb)
(9.25)
Heat Sink
(1.18)
(1.18)
(0.30)
(9.84)
(0.30)
(0.59) (0.59)
(0.59)
(0.59)
(0.59)
(8.66)
(0.59)
(7.91)
(0.09)
(1.30)
(0.24)
(1.18)
(2.36)
External Terminals (11P)
FRONT2.5H/SA5 (PHOENIX CONTACT)
VOLTAGE INDICATION
(8.86)
(9.25)
(0.20)
(0.20)
(1.97)
(OPENING)
3-M4 TAPPED HOLES
