2.3 Connection and Wiring
33

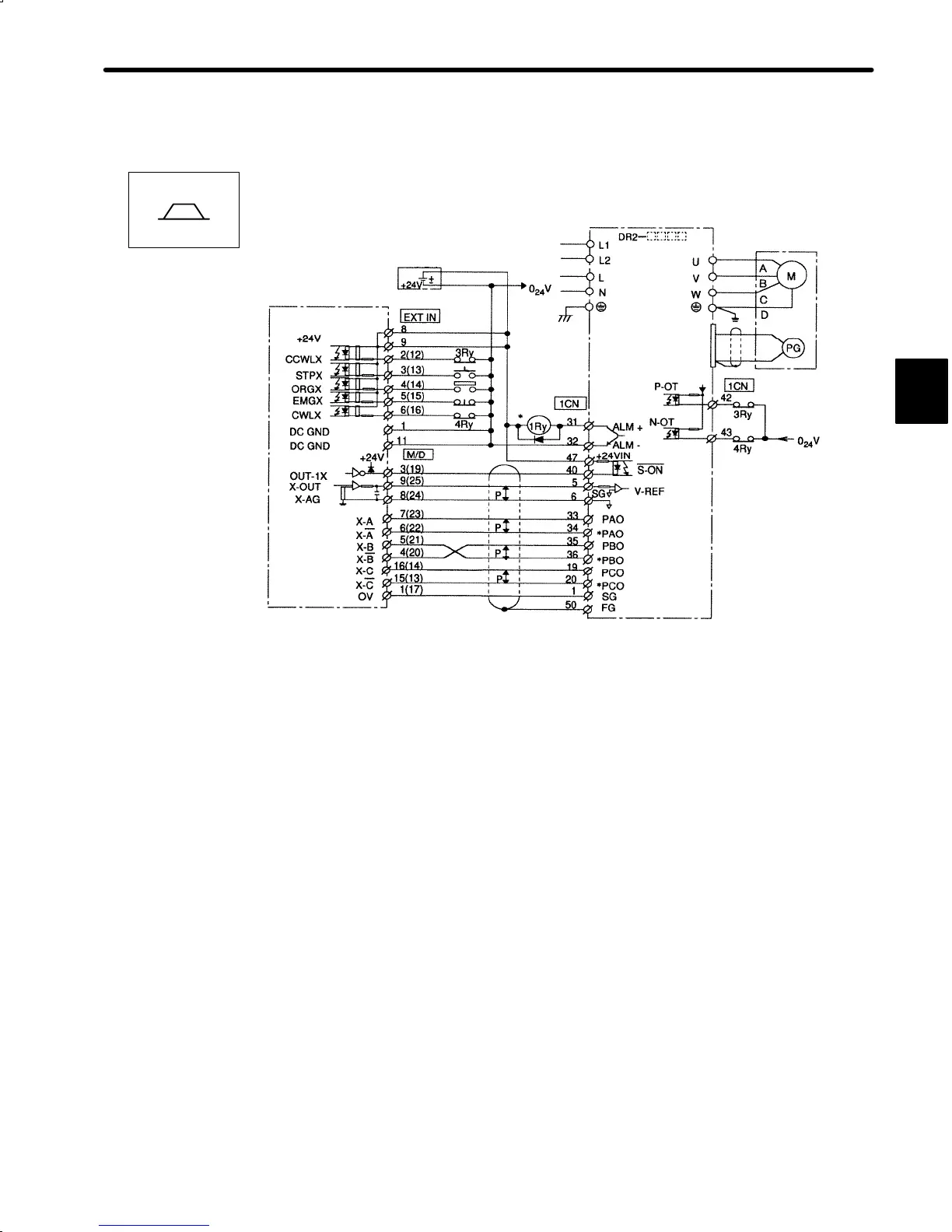

5) Example of Connecting to OMRON Position Control Unit C500-NC222
Servopack for Speed Control
* These signals are output for approximately two seconds when the power is turned
ON. Take this into consideration when designing a power ON sequence. Relay 1Ry is
used to stop main circuit power supply to Servopack.
Note The signals shown here are applicable only to OMRON Sequencer
C500-NC222 and Yaskawa Servopack DR2-VVVV.
C500-NC222
(MADE BY OMRON)
I/O POWER
SUPPLY
X-AXIS (Y-AXIS)
(ON when positioning
is stopped)
(ON when proximity
is detected)
Servopack
2
Speed
To Next Page
