3.2 Setting User Constants According to Host Controller
81

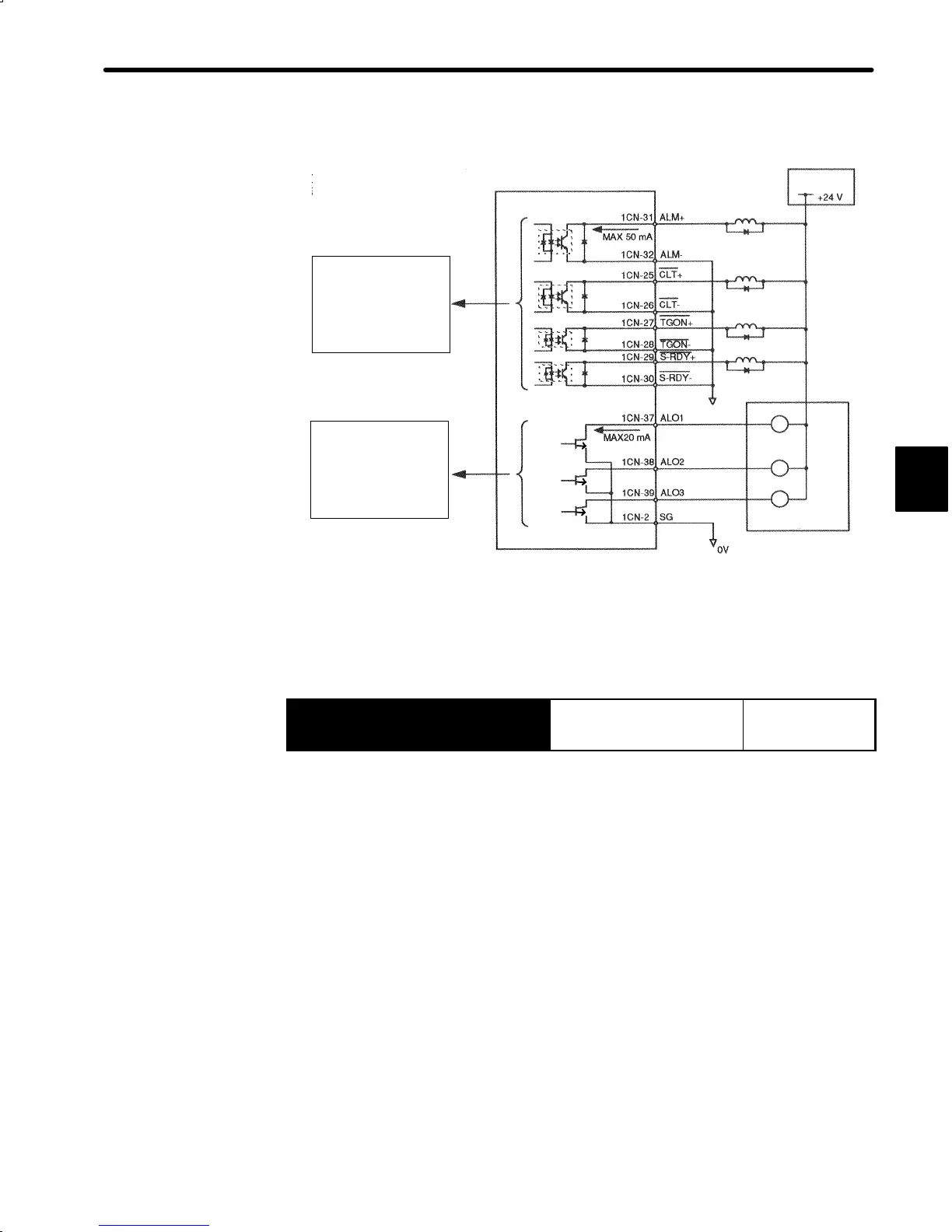

2) Contact Output Signal Terminal Connections
These output signals are used
to indicate DR2 Servopack
operation status.
Servopack
Photocoupler output
Per output
Maximum operational
voltage: 30 VDC
Maximum output
current: 50 mA DC
Open collector output
Per output
Maximum operational
voltage: 30 VDC
Maximum output
current: 20 mA DC
Photocoupler
Host controller
I/O power
supply
Note Provide an external I/O power supply separately.
There are no power terminals to which the DR2 Servopack outputs signals exter-
nally.
Yaskawa recommends that this external power supply be the same type as for the
input circuit.
Output → SG 1CN-2
Signal Ground for Alarm
Code Output Signal
For Speed/Torque
Control and
Position Control
This signal ground is used for the following output signals. Connect to 0 V on the external
power supply.
Contact Output Signals: ALO1 (1CN-37)
ALO2 (1CN-38)
ALO3 (1CN-39)
3
To Next Page
