3 Wiring and Connection
3.3.2 Output Signal Allocations
3-30

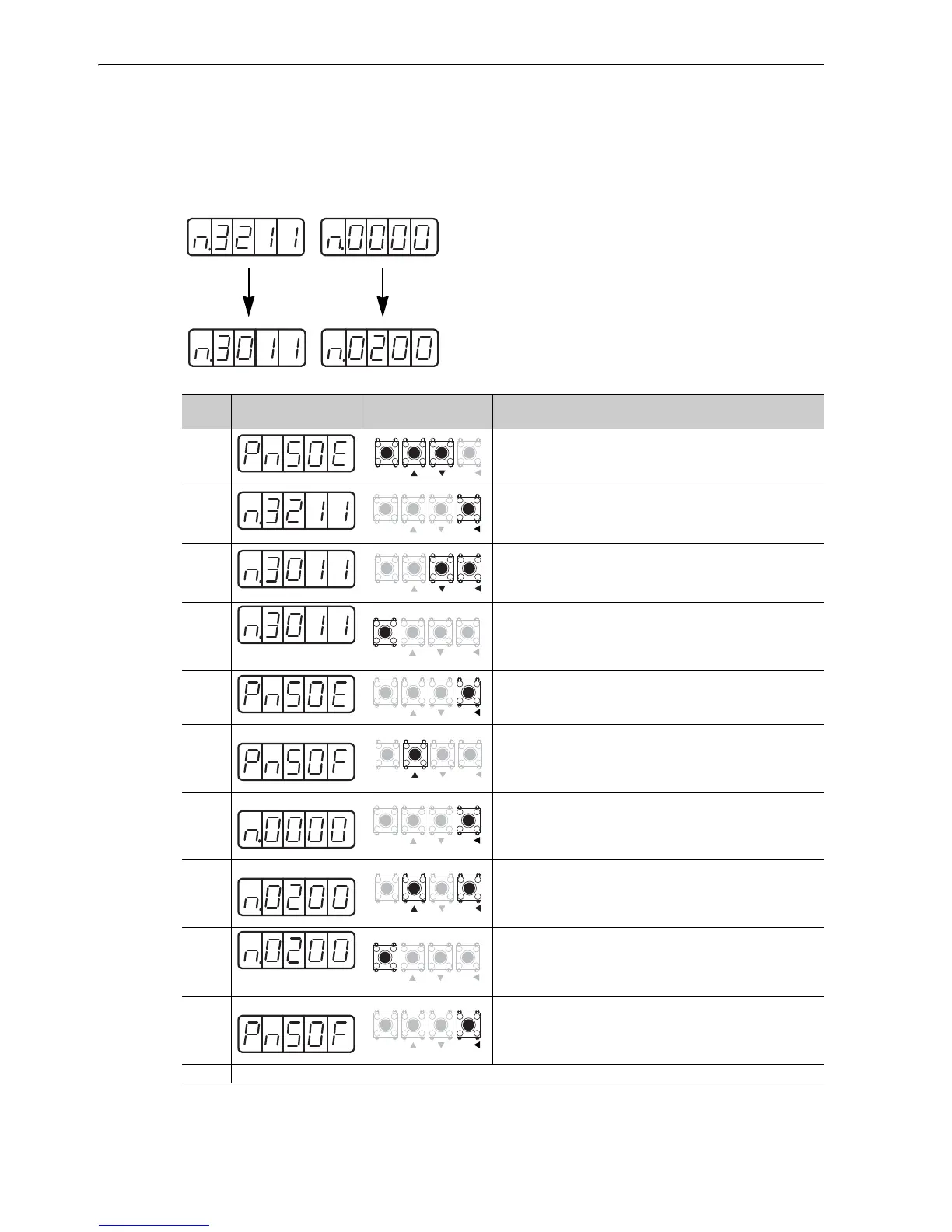

(3) Example of Output Signal Allocation
The procedure to set Rotation Detection (/TGON) signal of factory setting to "Invalid" and allocate Brake
Interlock (/BK) signal is shown below.
(4) Checking Output Signals
Output signal status can be checked using the output signal monitor (Un006). As for the output signal monitor
(Un006), refer to 8.6 Monitoring Output Signals.
Pn50E Pn50F
Before
After
Step
Display after
Operation
Keys Description
1
Press the MODE/SET Key to select the parameter setting
mode. If a parameter other than Pn50E is displayed, press
the UP or DOWN Key to select Pn50E.
2
Press the DATA/SHIFT Key for approximately one second
to display the current data of Pn50E.
(/TGON is allocated on CN1-27 (28).)
3
Press the DATA/SHIFT Key to select the third digit from
the right. Press the DOWN Key to set "0."
(Sets /TGON "Invalid.")
4
Display blinks.
Press the MODE/SET Key.
The data blinks and is saved.
5
Press the DATA/SHIFT Key for approximately one second
to return to the display Pn50E.
6
Press the UP Key to display Pn50F.
7
Press the DATA/SHIFT Key for approximately one second
to display the current data of Pn50F.
(/BK is set to "Invalid.")
8
Press the DATA/SHIFT Key to select the third digit from
the right. Press the UP Key to set "2."
(Allocates /BK to CN1-27 (28).)
9
Display blinks.
Press the MODE/SET Key.
The value blinks and is saved.
10
Press the DATA/SHIFT Key for approximately one second
to return to the display Pn50F. /TGON is set as "Invalid"
and /BK is allocated on CN1-27 (28).
11 Turn the power OFF and ON again to enable the changes of output signal selection (Pn50E and Pn50F).
