7 Utility Functions (Fn)
7-22

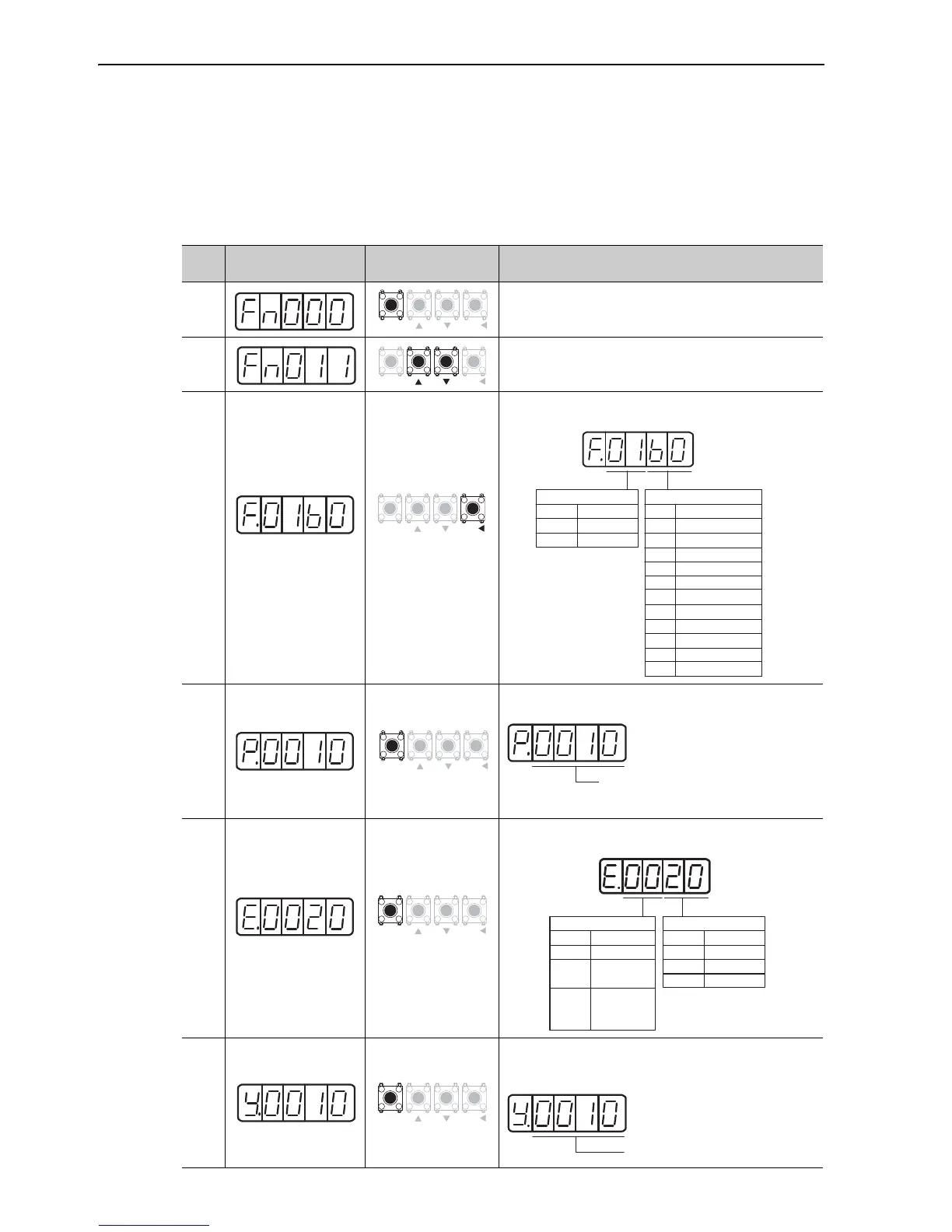

7.13 Servomotor Model Display (Fn011)
This function is used to check the servomotor model, voltage, capacity, encoder type, and encoder resolution.
If the SERVOPACK has been custom-made, you can also check the specification codes of SERVOPACKs.
Follow the steps below.
Step
Display after
Operation
Keys Operation
1
Press the MODE/SET Key to select the utility function
mode.
2 Press the UP or DOWN Key to select Fn011.
3
Press the DATA/SHIFT Key for approximately one second
to display the servomotor model and voltage code.
4
Press the MODE/SET Key to display the servomotor capac-
ity.
5
Press the MODE/SET Key, and the encoder type and reso-
lution code will be displayed.
6
Press the MODE/SET Key to display the SERVOPACK’s
code for custom orders.
* The display "y.0000" means standard model.
MODE
/
SET DATA
/
MODE
/
SET DATA
/
MODE / SET DATA /
Servomotor Voltage
Data
Type
400 VAC02
200 VAC01
Servomotor Model
Data
Model
SGMAV
SGMSV
SGMGV
SGMJV
SGMPS
SGMCS-C
SGMCS-D
SGMCS-B
SGMCS-E
SGMCS-L
SGMCS-M
60
62
63
6D
21
32
33
34
35
36
37
MODE / SET DATA /
Servomotor capacity in units of 10 W
The above example indicates 100 W
MODE / SET DATA /
Encoder Type
Data
Type
Incremental
00
Absolute
(Multi-turn)
01
02
Encoder Resolution
Data
Resolution
13-bit13
17-bit
20-bit
17
20
Absolute
(Within one
rotation)
MODE / SET DATA /
Code for custom orders
