5.6 Operating Using Speed Control with an Internal Set Speed
5-53
5
Operation

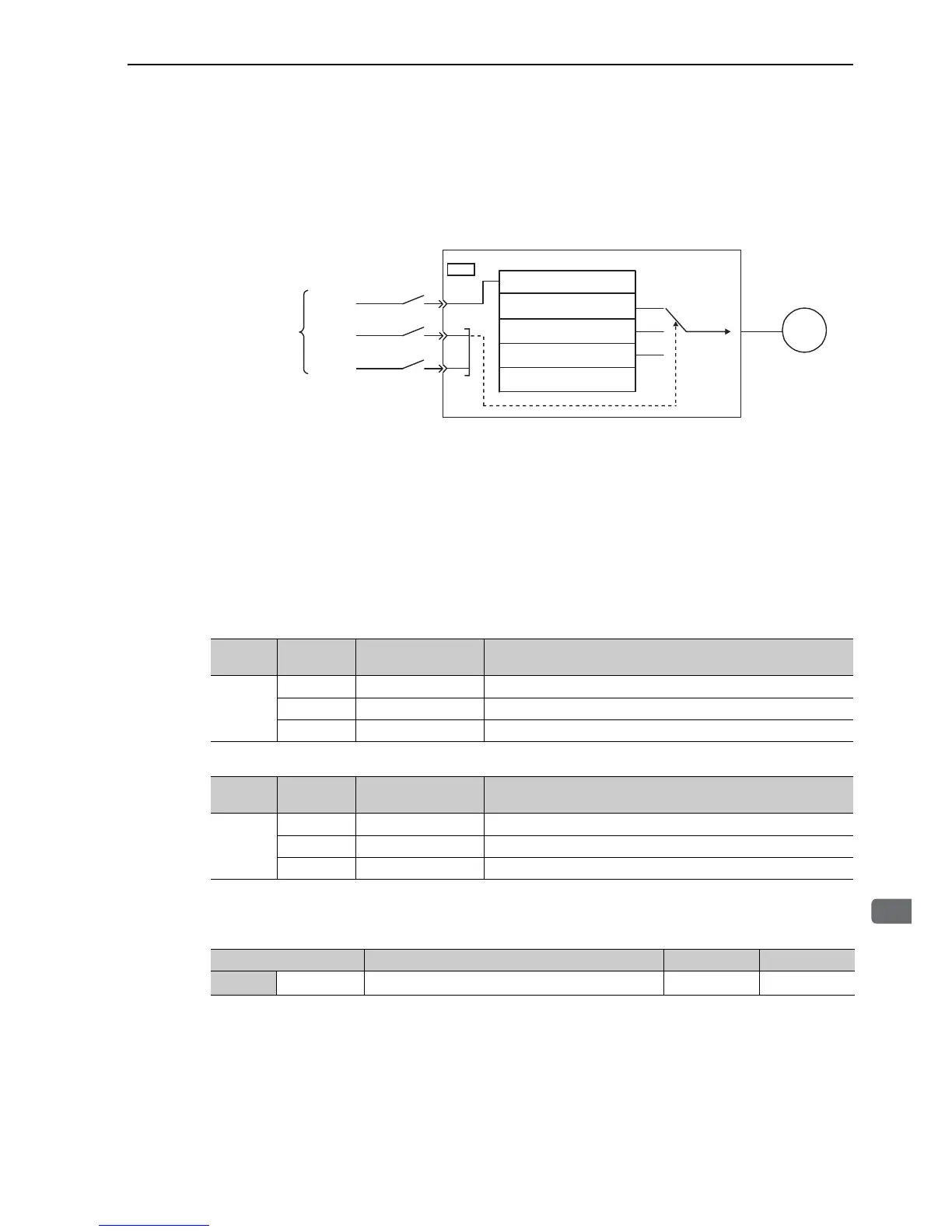

5.6 Operating Using Speed Control with an Internal Set Speed
This function allows speed control operation by externally selecting an input signal from among three servo-
motor speed settings made in advance with parameters in the SERVOPACK. Since controlling a speed with a
parameter inside the SERVOPACK, there is no need for an external speed of pulse generator.
5.6.1 Basic Settings for Speed Control with an Internal Set Speed
Set the following signal and parameter for speed control with an internal set speed.
(1) Signal Setting
The following input signals are used to switch the operating speed.
 Using Input signals /P-CON, /P-CL and /N-CL [Factory setting]
 Using Input Signals /SPD-D, /SPD-A and /SPD-B
(2) Speed Control with an Internal Set Speed Selection
Select the speed control with an internal set speed with Pn000.
SERVOPACK
Parameters for internal set speed
Motor rotation direction
(Forward/Reverse)
Speed
reference
Servomotor
Contact inputs*
* When using the external input signal pins as factory settings, the functions of /P-CON, /P-CL
and /N-CL change to the functions of /SPD-D, /SPD-A and /SPD-B respectively.
41
45
46
Pn301
Pn302
Pn303
M
/
P-CON (/SPD-D)
/
P-CL (/SPD-A)
/
N-CL (/SPD-B)
CN1
Stops
Type
Signal
Name
Connector
Pin Number
Meaning
Input
/P-CON CN1-41 Switches the servomotor rotation direction.
/P-CL CN1-45 Selects the internal set speed.
/N-CL CN1-46 Selects the internal set speed.
Type
Signal
Name
Connector
Pin Number
Meaning
Input
/SPD-D CN1-41 Switches the servomotor rotation direction.
/SPD-A CN1-45 Selects the internal set speed.
/SPD-B CN1-46 Selects the internal set speed.
Parameter Meaning When Enabled Classification
Pn000
n.3
Control mode: Internal set speed control After restart Setup
