YASKAWA V1000 - Page 206

Three-Phase 200 V / 400 V Class
C
D
H
D
I
E
J
B
F
G
A
L3
L2
L1
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
E
L1
PE
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
L3
L2
PE
A – Ground the cable shield
B – Enclosure panel
C – Metal plate
D – Grounding surface
(remove any paint or
sealant)
E – Drive
F – Motor cable (braided
shield cable, max. 20 m)
G – Motor
H – Cable clamp
I – Wiring distance as short
as possible
J – EMC noise filter

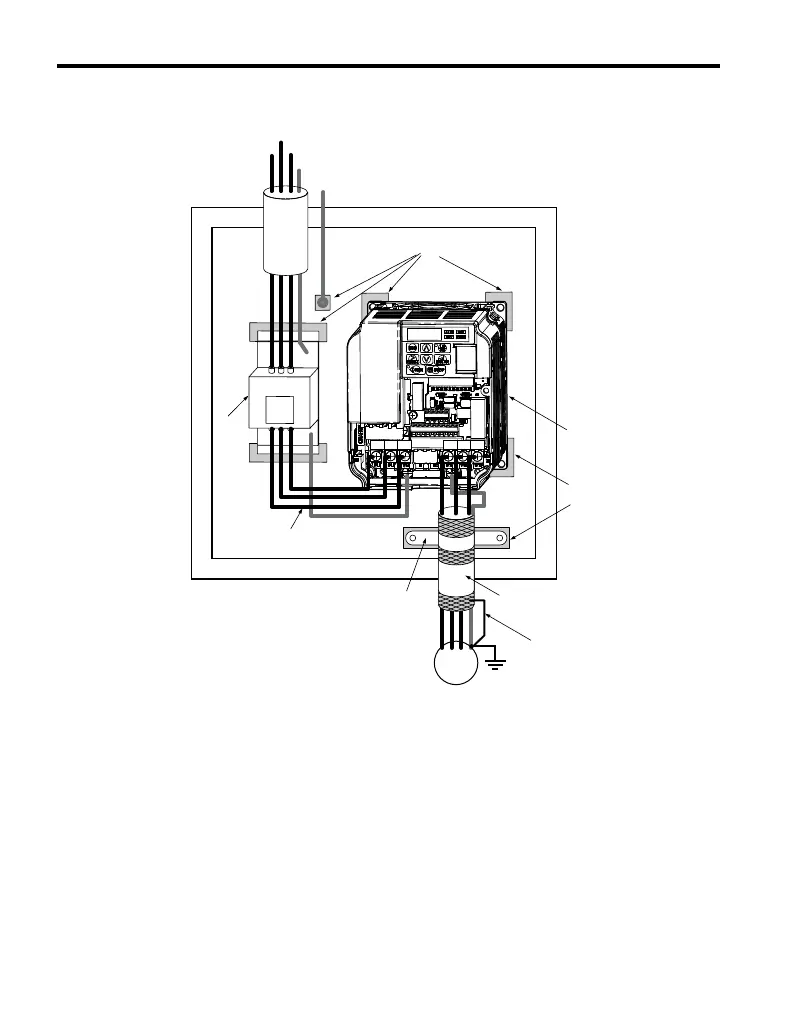

Figure C.2 EMC Filter and Drive Installation for CE Compliance
(Three-Phase 200 V / 400 V Class)
