Single-Phase 200 V Class
C
D
D
I
E
J
B
G
A
F
H
N
L1
E
N
L1
PE
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
PE
A – Ground the cable shield
B – Enclosure panel
C – Metal plate
D – Grounding surface
(remove any paint or
sealant)
E – Drive
F – Motor cable (braided
shield cable, max. 20 m)
G – Motor
H – Cable clamp
I – Wiring distance as short
as possible
J – EMC noise filter

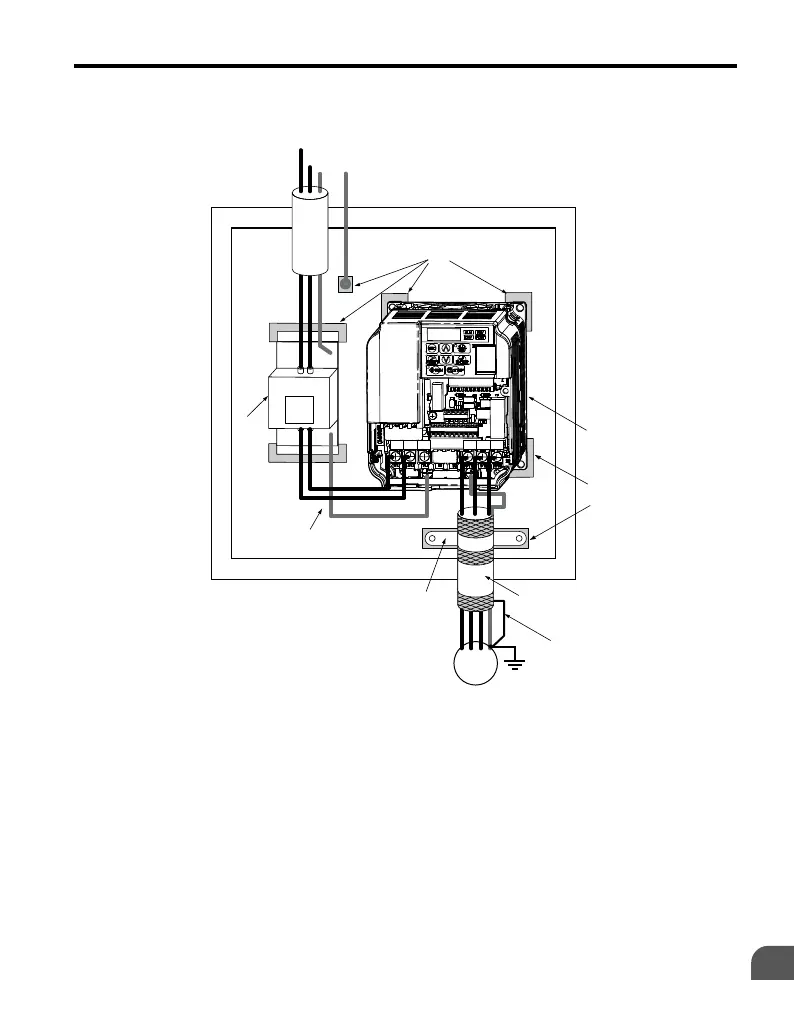

Figure C.3 EMC Filter and Drive Installation for CE Compliance (Single-Phase 200 V
Class)
n
EMC Filters
The drive should be installed with the EMC filters listed below in order to comply with the
EN 61800-3, category C1 requirements.
