YASKAWA V1000 User Manual

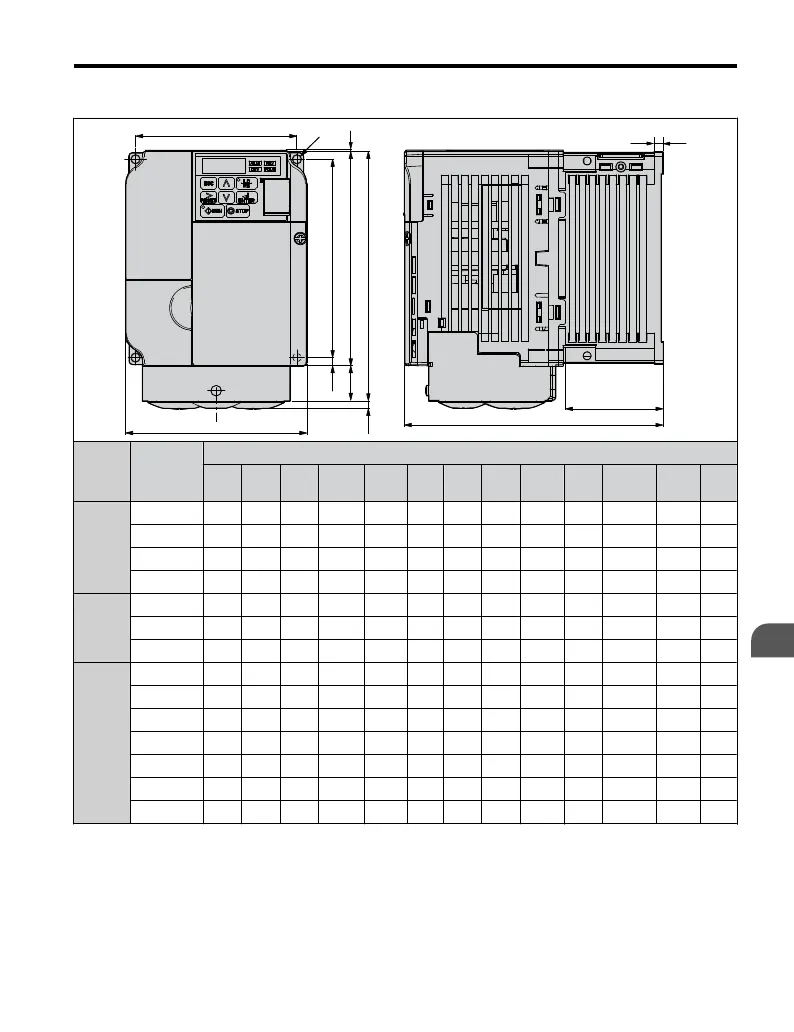

Table 2.6 IP20/NEMA Type 1 (without an EMC filter)
H6
4-M4
W1
W
H5 H2
H4
HH3
D1
D
H1
t1
Voltage
Class
Drive
Model
CIMR-Vo
Dimensions (in)
W H D W1 H1 H2 H3 H4 H5 H6 D1 t1
Wt.
(lb.)
Single-
Phase
200 V
Class
BA0006F 4.25 5.89 5.41 3.78 5.03 4.65 0.16 0.79 0.20 0.06 2.28 0.20 4.2
BA0010F 4.25 5.89 6.06 3.78 5.03 4.65 0.16 0.79 0.20 0.06 2.28 0.20 4.4
BA0012F 5.51 6.02 6.42 5.04 5.03 4.65 0.19 0.79 0.20 0.20 2.56 0.20 5.7
BA0018F 6.69 6.73 7.08 6.22 5.23 4.64 0.19 1.50 0.20 0.20 2.56 0.20 7.3
Three-
Phase
200 V
Class
2A0010F 4.25 5.89 5.08 3.78 5.03 4.65 0.16 0.79 0.20 0.06 2.28 0.20 4.2
2A0012F 4.25 5.89 5.41 3.78 5.03 4.65 0.16 0.79 0.20 0.06 2.28 0.20 4.2
2A0020F 5.51 6.02 5.63 5.04 5.03 4.65 0.19 0.79 0.20 0.20 2.56 0.20 5.7
Three-
Phase
400 V
Class
4A0001F 4.25 5.89 3.19 3.78 5.03 4.65 0.16 0.79 0.20 0.06 0.39 0.20 2.6
4A0002F 4.25 5.89 3.90 3.78 5.03 4.65 0.16 0.79 0.20 0.06 1.10 0.20 3.1
4A0004F 4.25 5.89 5.41 3.78 5.03 4.65 0.16 0.79 0.20 0.06 2.28 0.20 4.2
4A0005F 4.25 5.89 6.06 3.78 5.03 4.65 0.16 0.79 0.20 0.06 2.28 0.20 4.2
4A0007F 4.25 5.89 6.06 3.78 5.03 4.65 0.16 0.79 0.20 0.06 2.28 0.20 4.2
4A0009F 4.25 5.89 6.06 3.78 5.03 4.65 0.16 0.79 0.20 0.06 2.28 0.20 4.2
4A0011F 5.51 6.02 5.63 5.04 5.03 4.65 0.19 0.79 0.20 0.20 2.56 0.20 5.7
2.1 Mechanical Installation
YASKAWA ELECTRIC TOEP C710606 47A YASKAWA AC Drive – V1000 Quick Start Guide
47
2
Mechanical Installation

YASKAWA V1000 Specifications

General

Input Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC
Output Frequency	0-400 Hz
Control Method	V/f control
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit, Ground Fault
Communication Options	Modbus RTU
Ambient Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20°C to +65°C (-4°F to 149°F)
Humidity	95% (non-condensing)
Cooling Method	Forced Air Cooling
Enclosure	IP20
