Appendix
App.2-1
IM CA150E
1
2
3
4
5
6
7
8
9
10
11
12
App
Appendix 2

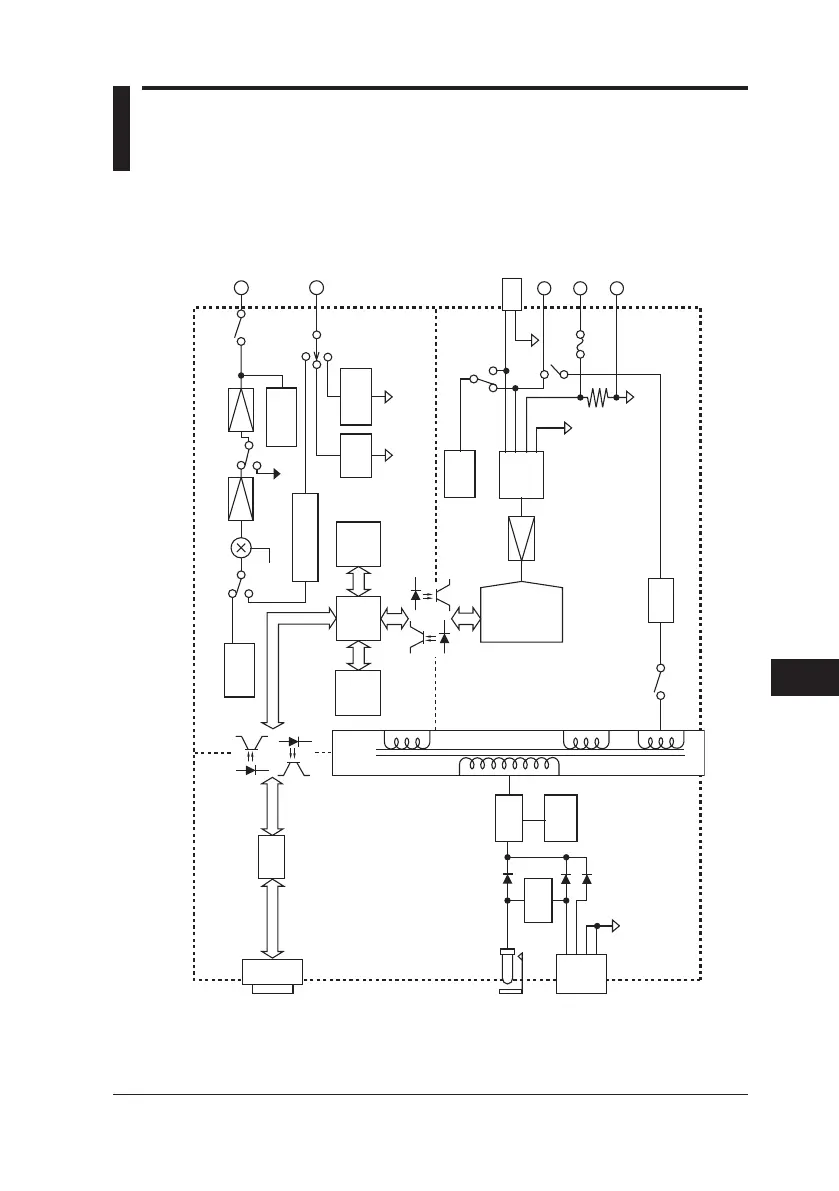

Block Diagram
■ Block Diagram
BA
TT
.
12 V DC
RS232
Power source/communication port
Charge
circuit
Power
source
control
DC/DC
converter
RS232
driver
DC/DC
converter
Reg.
24V OUT
24V OUT part
Measure part
Input
circuit
Shunt resistance
Constant
current
source
AD
converter
Source/CPU part
TC
R.J.
INPUT
H
mA
MEASURE
L
CPU
Display
Memory
DCA
DCV
Ω
Current
detection
Excess
current
protection
Current
voltage conversion
Setting
FRQ
Excess
current
protection
H
L
SOURCE
OUTPUT
DCV
DCA
Ω
Reference
voltage
source
FUSE
Ω
131
133
