YOKOGAWA CA150 User Manual

5-4
IM CA150E

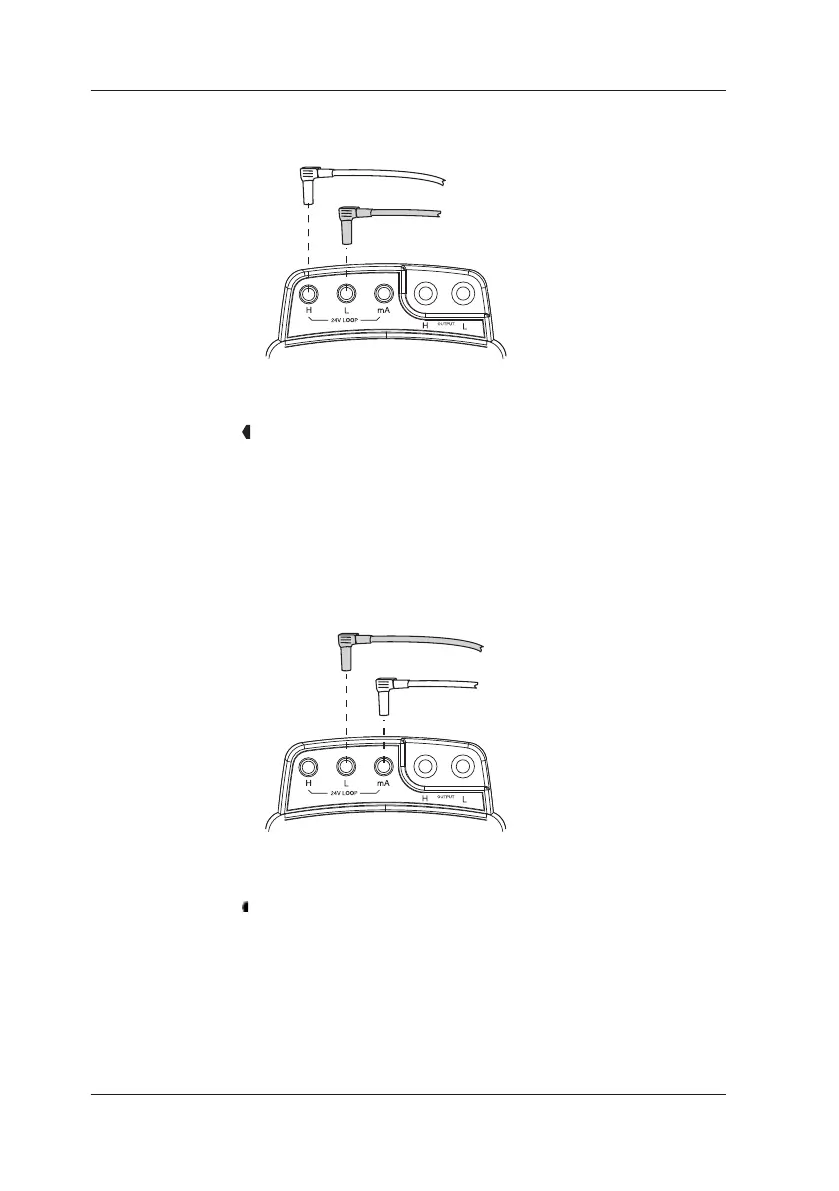

5.2 Measuring DC Voltage (DCV)
Measurement
lead cables
(RD031)
Black
Red
Measurement
input terminals
1 Connect the terminals as shown in the gure above.
2 Use the FUNCTION key on the MEASURE side to align
the measurement mark with DCV. (DC voltage selection)
3 Use the RANGE key to select a range. (35 V, 5 V, or 500 mV)
Set the range in accordance with the object to be measured.
4 The measurement value and unit (mV, V) appear.
5.3 Measuring DC Current (DCA)
5.3.1 Measuring DC Current
Measurement
lead cables
(RD031)
Black
Red
Measurement
input terminals
1 Connect the terminals as shown in the gure above.
2 Use the FUNCTION key on the MEASURE side to align
the measurement mark with DCA. (DC current selection)
3 Use the RANGE key to select a range. (100 mA, 20 mA)
Set the range in accordance with the object to be measured.
4 The measurement value and unit (mA) appear.
5.2 Measuring DC Voltage (DCV)
