4.9.1 Step Sweep Function

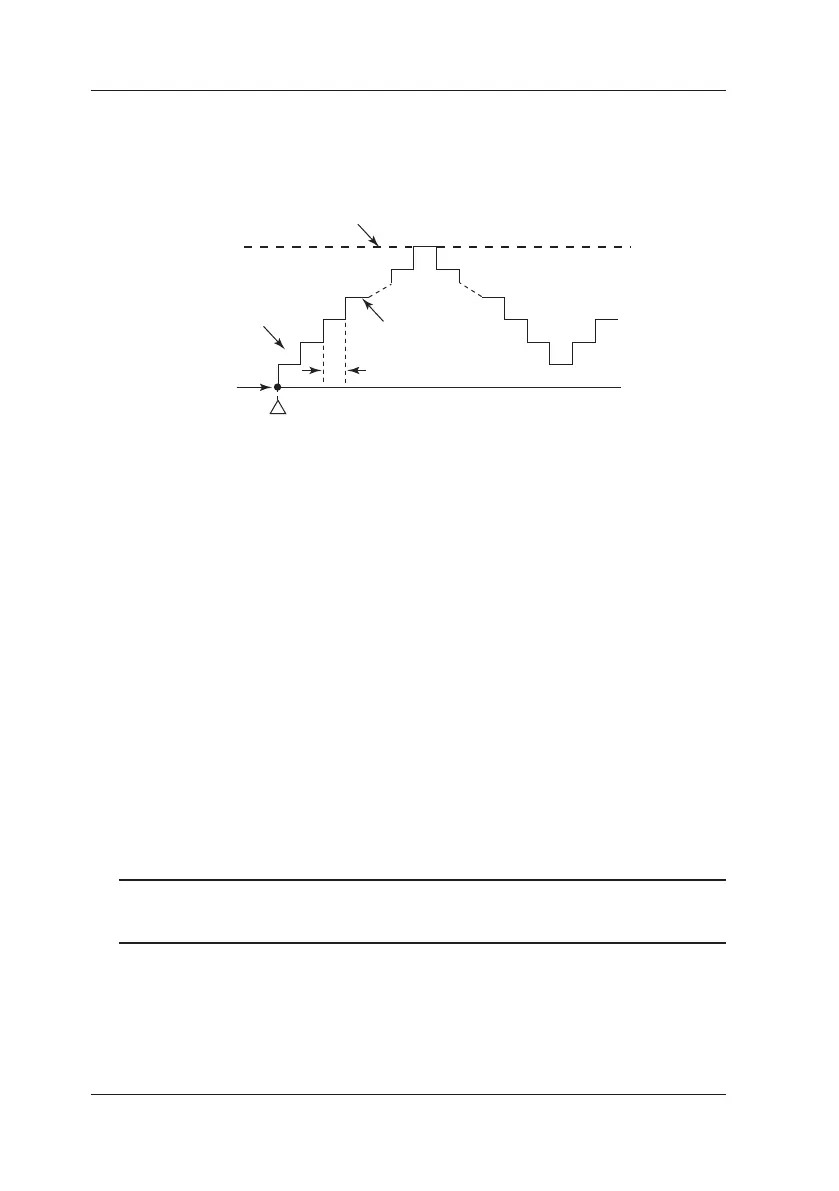

Set divided output (n/m) to be generated automatically as
shown in the gure below.
Setting value
Source value indication
Actual output
OFF
Interval time setting value
SOURCE ON
key operation
Press
(ON)
1
2 2
1
0
2
3 3
n
m
1 Set the source value to output (FUNCTION, RANGE, Setting Value).
2 Press the SWEEP SET key to select Step Sweep.
(SWEEP and n/m appear.)
3 Use the ▲ ▼ m key to set the step number.
The default value is 1. m is settable from 1 to 19.
4 Use the ▲ ▼ n key to set the generation start step.
The default value is 1. n is settable from 0 to 19.
(A value higher than the m value cannot be set.)
5 Press the SOURCE ON/OFF key to start the steps as
shown in the gure above.
6 Press the SOURCE ON/OFF key again to stop the output.
7 Press the SWEEP SET key three times to cancel
the sweep output function.
→ Linear Sweep → Program Sweep → Cancel
If you press the SOURCE ON/OFF key again after output is stopped in
Step 6 above, output resumes from the stopped step.
If you change the n and m values while output is stopped and then
press the ON/OFF key again, output restarts from the rst step.
Tip
The default setting for the interval time is 5 seconds.
For details on changing the setting, refer to the next page.
