YOKOGAWA CA150 User Manual

Source
4-15
IM CA150E
1
2
3
4
5
6
7
8
9
10
11
12
App

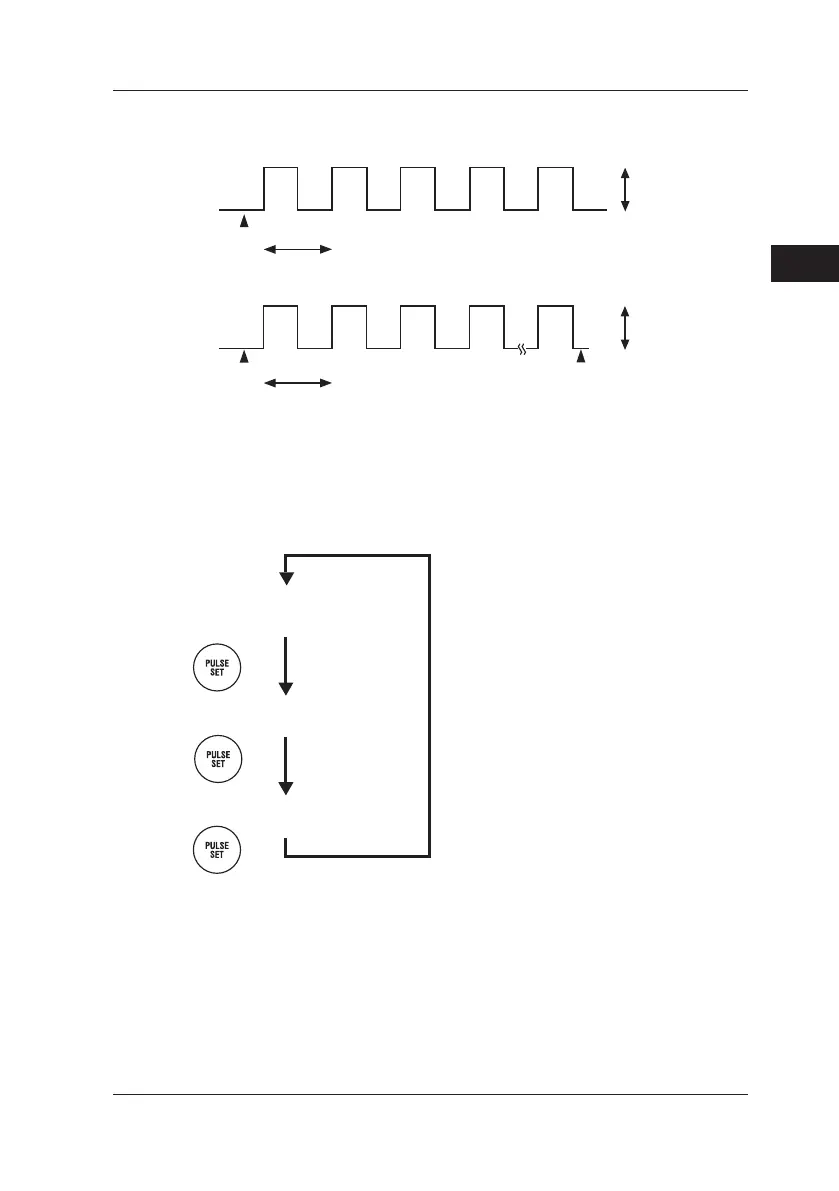

4.7 Source Frequency and Pulse (PULSE) Signals
Amplitude voltage
(setting value)
Frequency
(setting value)
Frequency
(setting value)
Frequency
(continuous)
Amplitude voltage
(setting value)
Pulse cycle
1
2
3
n
SOURCE
ON
SOURCE
ON
End
n = pulse number
(setting value)
PULSE SET Key
When the generation of frequency and pulse signals is selected with
FUNCTION of SOURCE, each press of the PULSE SET key toggles
the mode as shown below.
Frequency setting mode
Amplitude setting mode
Pulse number setting mode
Amplitude Voltage Setting Values
Default value: 0.1000 V
Upper value: 11.0000 V
Lower value: 0.0000 V
Resolution: 0.0001 V
4.7 Source Frequency and Pulse (PULSE) Signals
