YOKOGAWA CA150 User Manual

4-24
IM CA150E
4.9 Sweep Output Functions
4.9.3 Program Sweep Function

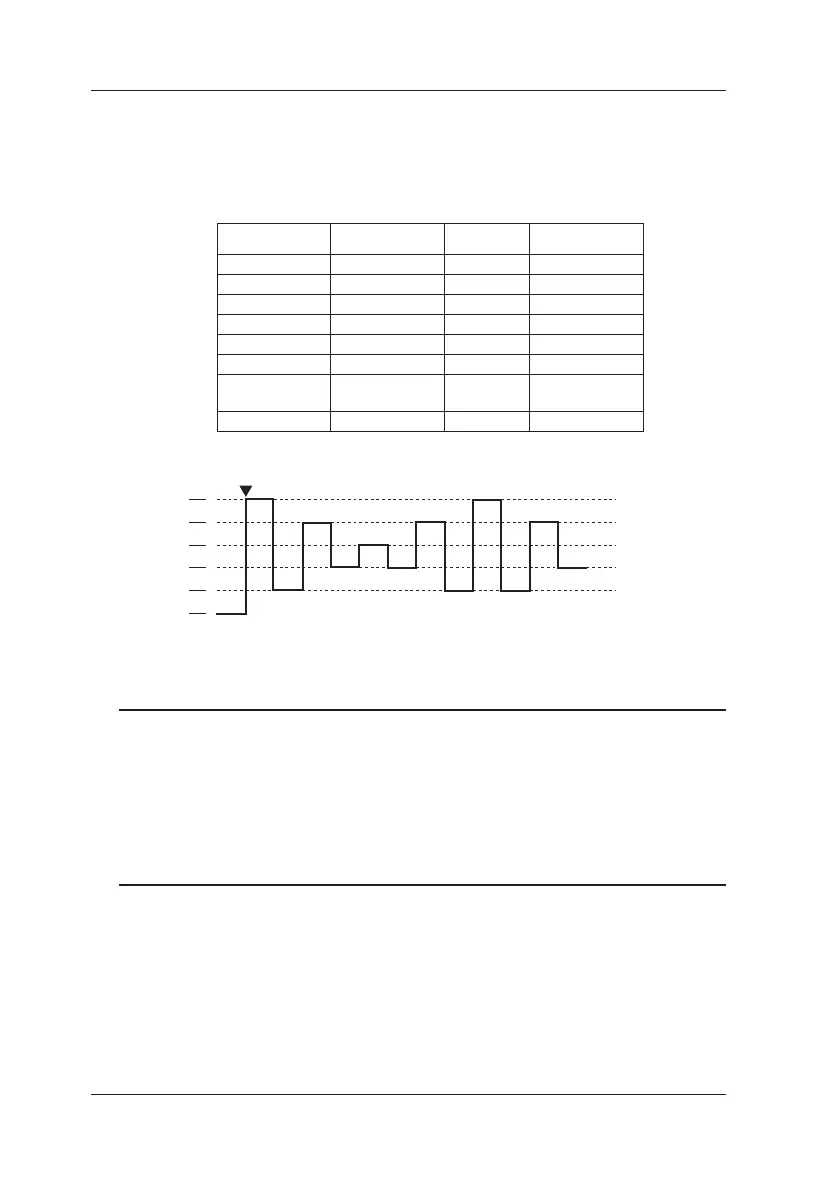

Multiple setting values saved with the SAVE key can be output in order
as shown in the gure below.
5V
0V
Memory No.
SOURCE
ON
0 1 2 3 4 3 2 1 0 1 2 •••
When the start number was set to 0
Memory Number Function Range
Source Value
(Setting Value)
0
1
2
3
4
5
•
•
•
990
DCV
DCV
DCV
DCV
DCV
Unused
•
•
•
•
10 V
10 V
10 V
10 V
10 V
Unused
•
•
•
•
5.0000V
1.0000V
4.0000V
2.0000V
3.0000V
Unused
•
•
•
•
Tip
• This is only valid for the saved data memory information of SOURCE.
(The saved information of measurement conditions is ignored.)
• If there is an unused number during the step operation or a number saved with
different FUNCTION and RANGE conditions, the step operation returns to
the starting number and repeats the step operation.
• The frequency or pulse source values saved in the data memory cannot be used
for program sweep.
You can change the sweep interval time.
The default setting (at shipment) is 5 seconds (FAST).
Set 5 seconds (FAST) or 10 seconds (SLOW) in setting mode.
The interval setting (FAST, SLOW) is also common to step sweep and
linear sweep.
When a sweep function is enabled, a setting mode cannot be selected.
Disable the sweep function by pressing the SWEEP SET key and
switch to the normal mode.
