5.5 Measuring Resistance (Ω)
5.5 Measuring Resistance (Ω)
When using the terminal adapter (model: 99022), tighten the knob by hand.
Do not use a tool or the like. Tightening the knob using a tool or the like may
damage the terminal, resulting in the disability of measurement.
Before storing the instrument in the carrying case, remove the terminal adapter
(model: 99022).
If the instrument is stored in the carrying case while the adapter is attached,
an external force may be applied to the terminal, thus causing damage to the
terminal and resulting in the disability of measurement.

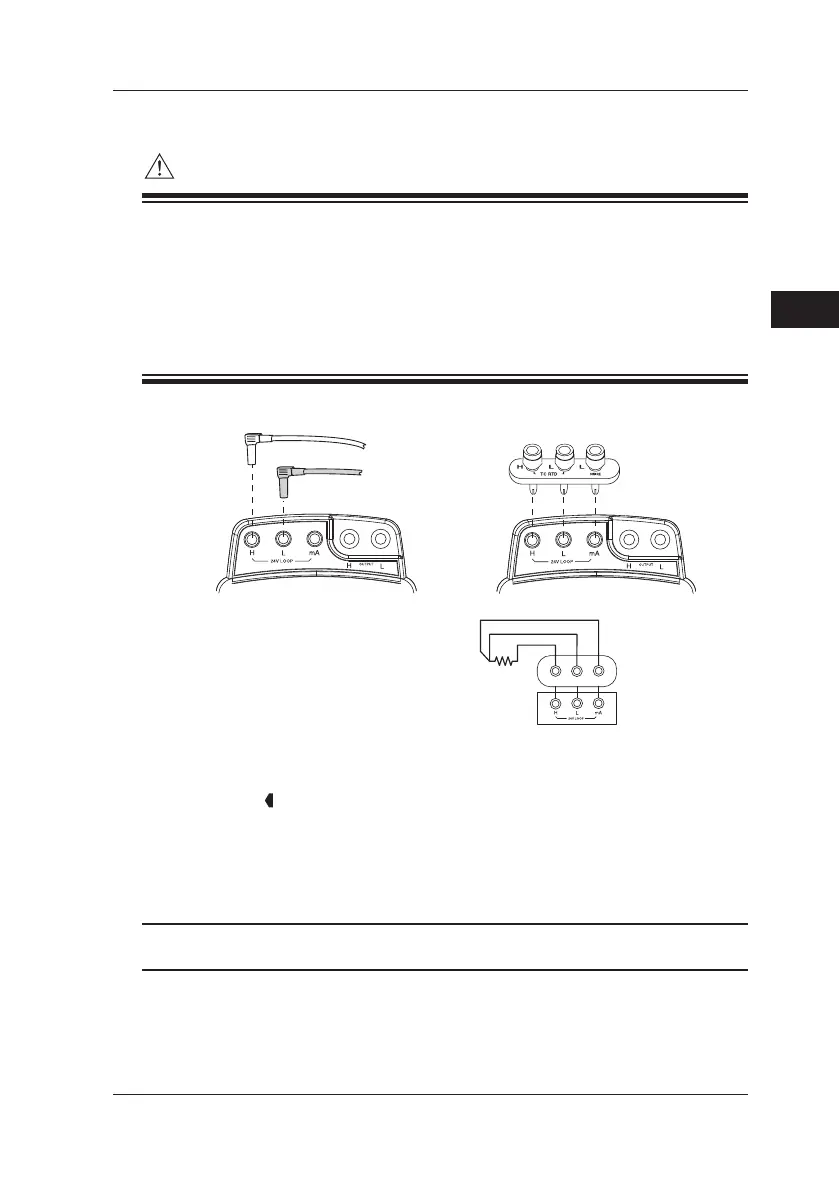

Measurement
Terminal adapter
(99022)
Measurement
lead cables
(RD031)
Black
Red
Measurement
input
terminals
Two-wire method Three-wire method
Measurement
input
terminals
(99022)
1 Connect the terminals as shown in the gure above.
2 Use the FUNCTION key on the MEASURE side to align
the measurement mark with V. (Resistance selection)
3 Use the RANGE key to select a range. (50 kΩ, 5 kΩ, 500 Ω)
Set the range in accordance with the object to be measured.
4 The measurement value and unit (Ω) appear.
Tip
For accurate measurement in the 500 Ω range, use the three-wire method.
