3.2 Connecting a Power Supply

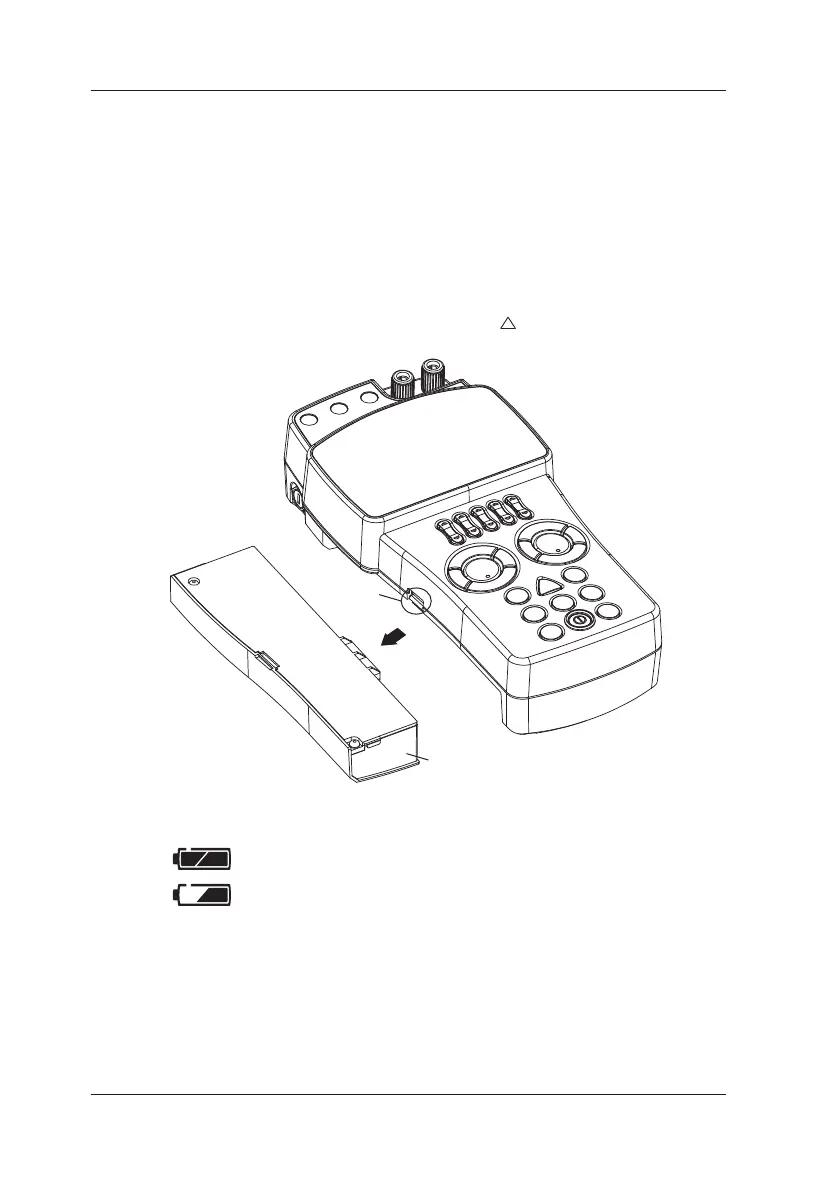

Installing the NiMH Battery
1 Make sure that the power switch of the instrument is turned off and
the lead cables and AC adapter are not connected.
2 If alkaline batteries are in use, slide up the lock switch on
the left side of the instrument and remove the alkaline battery holder
before installing the NiMH battery.
3 Insert the holder into the opening on the instrument.
Slide the holder into the opening so that the connector is aligned
properly.
4 Slide down the lock switch to x the holder in place.
(The lock switch indication changes to "
FREE.")
Battery Level Indication (Remaining Battery Power Indicator)
Indicates that the battery voltage is normal.
Indicates that the battery level is above 50%. (Lit)
Charge the battery when this mark begins ashing.
The battery takes approximately 6 hours to fully charge from the ashing state.
