9-6
IM 05P03C21-01EN
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
AL1 to AL8 Alarm-1 to -8 type EASY See the table below.
ALRM
VT1 to VT8
PV velocity alarm time
setpoint 1 to 8
EASY
00.01 to 99.59
(minute.second)
Note1: The initial values of the parmeters AL1 to AL8 and VT1 to VT8 are "8".
The number of alarms can be changed using the parameter ALNO.

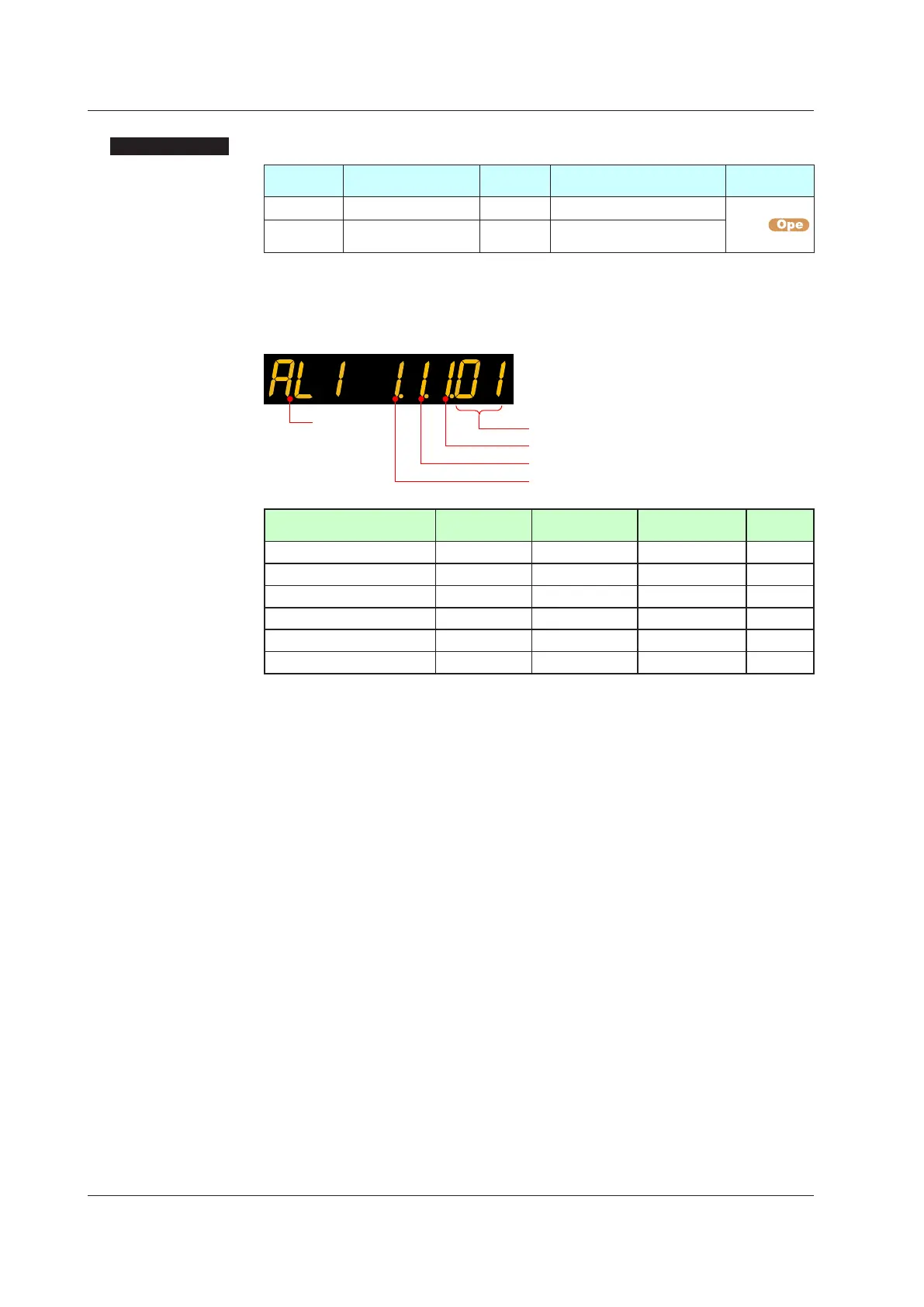

The following shows the example of setting PV high limit (01), With stand-by action (1),
De-energized (1), and Latch 1 action (1).
Alarm type
Symbol
Stand-by action
Energized/de-energized
Latch
Name
Latch action
(Note 1)
Energized (0) /
de-energized (1)
Stand-byaction
Without (0) / with (1)
Alarm
type
Disable - (Note 2) - (Note 2) - (Note 2) 00
PV high limit 0 / 1 / 2 / 3 / 4 0 / 1 0 / 1 01
PV low limit 0 / 1 / 2 / 3 / 4 0 / 1 0 / 1 02
PV velocity 0 / 1 / 2 / 3 / 4 0 / 1 - (Note 2) 29
Fault diagnosis 0 / 1 / 2 / 3 / 4 0 / 1 - (Note 2) 30
FAIL - (Note 2) - (Note 2) - (Note 2) 31
Note 1: 0: No latch function, 1: Latch 1, 2: Latch 2, 3: Latch 3, 4: Latch 4
Note 2: -: Alarm function doesn't work even if any value is set.
9.1SettingAlarmType
