16-8
IM 05P03D21-01EN
16.4.3 Contact Input Wiring
CAUTION
1) Use a no-voltage contact (relay contact etc.) for external contacts.
2) Use a no-voltage contact which has ample switching capacity for the terminal's
OFF voltage (approx. 5V) and ON current (approx 1mA).
3) When using a transistor contact, the voltage at both terminals must be 2 V or
less when the contact is ON and the leakage current must be 100 µA or less
when it is OFF.
4) If there is a risk of external lightning surges, use a lightning arrester etc.

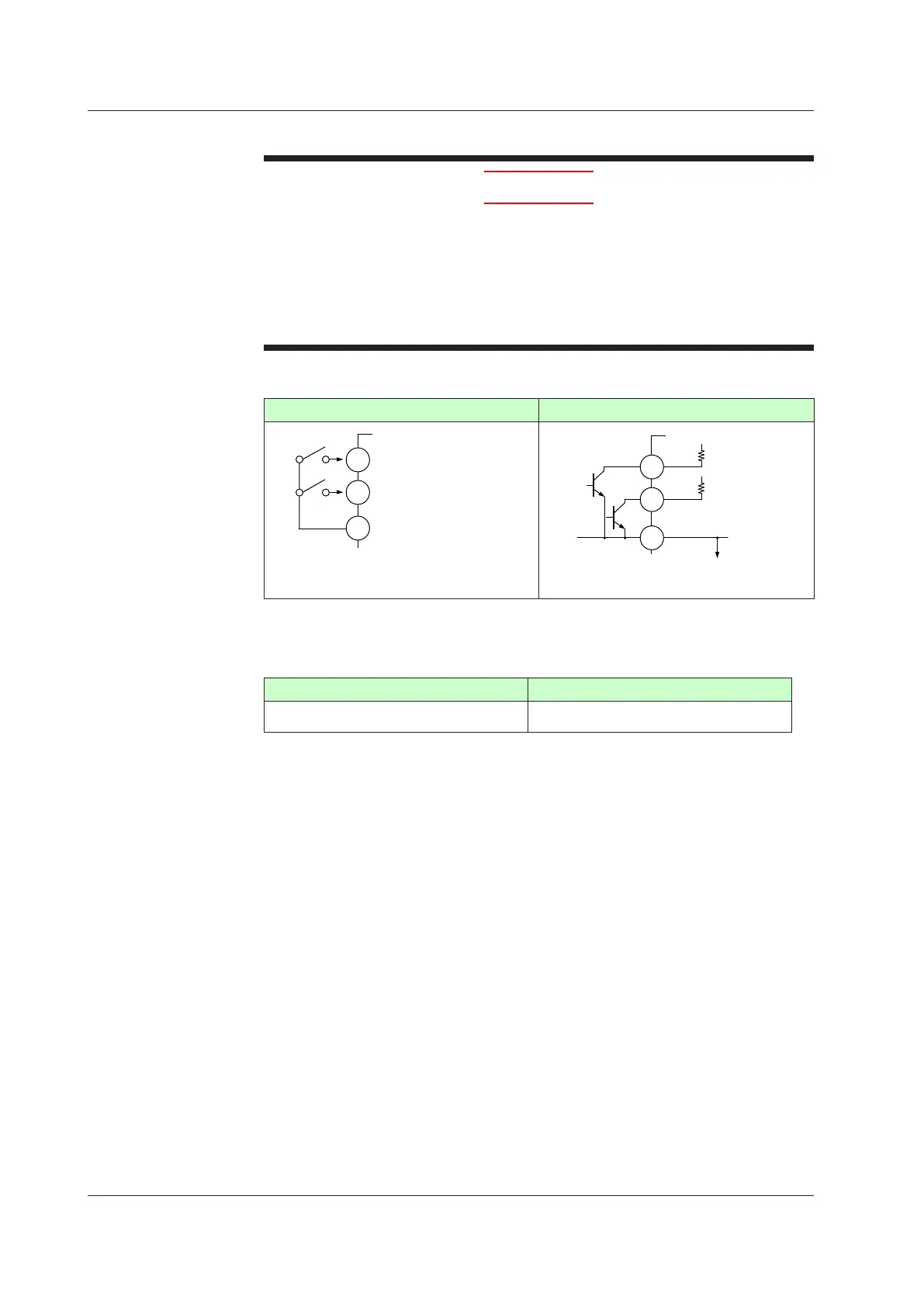

ContactInputEquippedasStandard
No-voltage contact Transistor contact
DI2
DI1
COM
210
211
212
DI
Contact rating: 12 V DC, 10 mA or more
DI2
DI1
COM
210
211
212
DI
+
+
–
+5 V
+5 V
Contact rating: 12 V DC, 10 mA or more
The following table shows the initial status.
► Contact input function registration: 11.1 Setting Contact Input Function
DI1 DI2
OFF→ON:PVpeakandbottomvaluesreset OFF→ON:Latchrelease
16.4 Wiring
