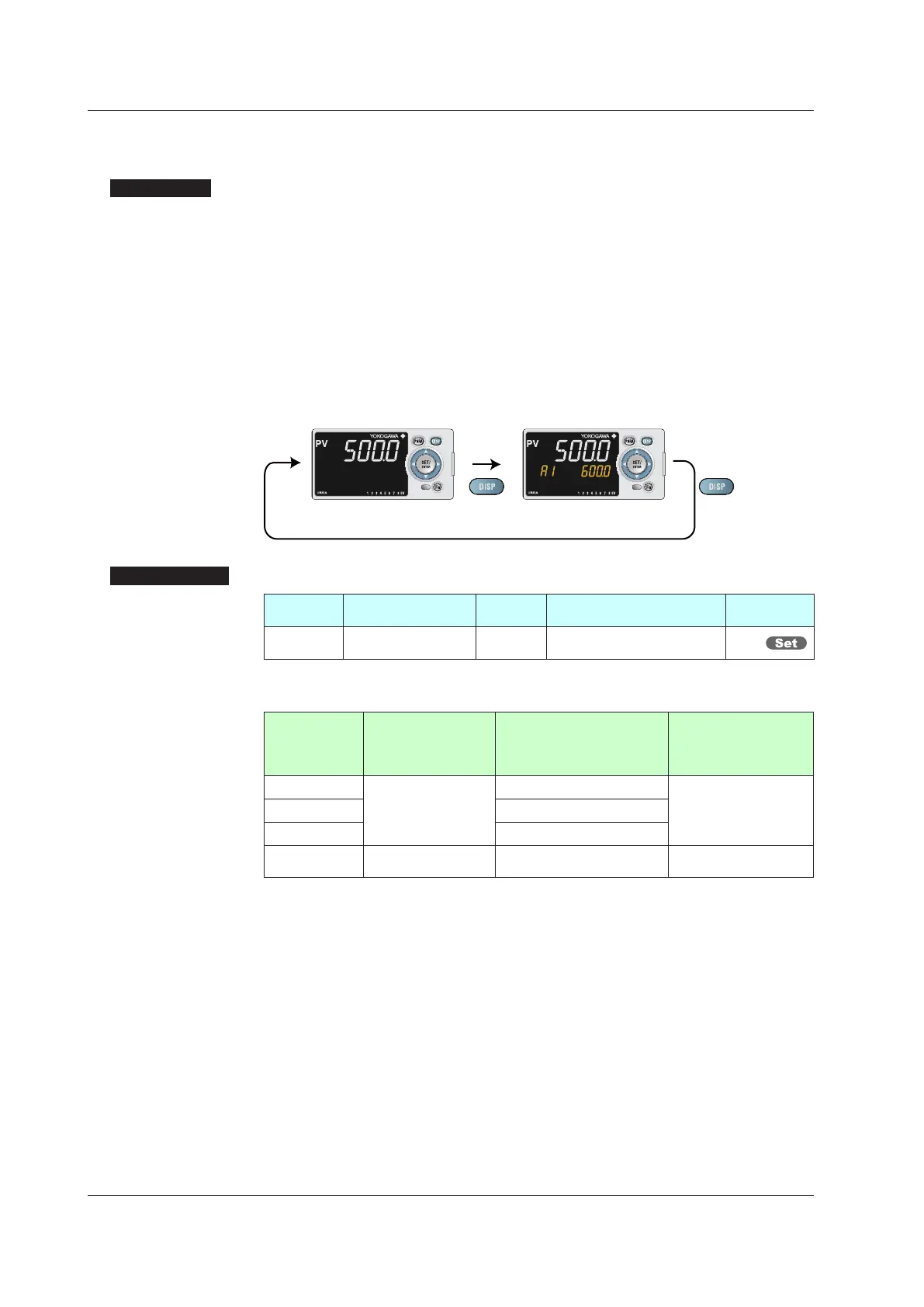

12.1.3 RegisteringSELECTDisplay(Upto5Displays)
Description
Registering frequently changed-operation parameters (except for the operation mode)
in the SELECT Display of the Operation Displays will allow you to change parameter
settings easily. A maximum of five Displays can be registered.
Set the D register number of the parameter you wish to register for the registration to the
SELECT Display.
However, the parameters in the following menu cannot be set:
CTL, PV, MPV, OUT, R485, KEY, DISP, CSEL, KLOC, MLOC, DI.SL, DI.D, ALM, DO, I/O,
SYS, INIT, VER, and LVL.
When each parameter is displayed, the terminal area (E1 to E4) is displayed on Group
display according to the suffix code and optional suffix code.
PV Display
Ordinary Operation Displays SELECT Display
Example: Alarm Setpoint Setting Display
8 8
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
CS1toCS5
SELECT Display-1 to
-5 registration
STD
OFF: No registration D register
number (2301 to 5000)
CSEL
For D register numbers, see sections 10.4.2 and 10.4.3 in the UTAdvanced Series Communication
Interface User’s Manual.
D Resistor
Number
Category Description
Referencein
Communication
Interface
User's Manual
2301 to 2400
Operation Parameters
Alarm setpoint setting
Section 10.4.22801 to 2900 Alarm function settings
2901 to 3000 PV-related settings
4801 to 5000
10-segment Linearizer
Setting Parameters
10-segment linearizer setting Section 10.4.3
