YOKOGAWA UM33A User Manual

3-1
IM 05P03D21-01EN
Part Names
3

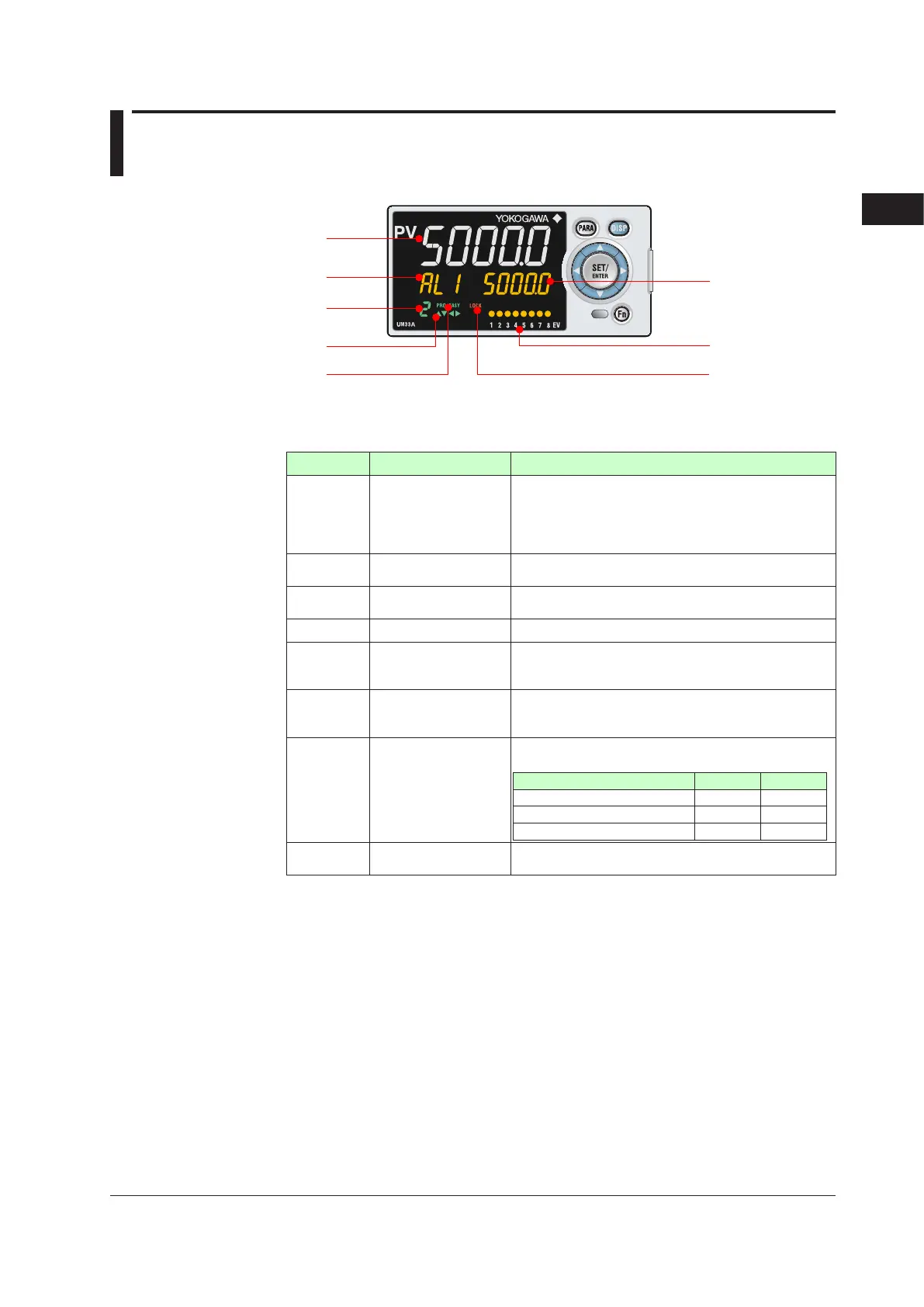

3.1 NamesandFunctionsofDisplayParts
UM33A
8
(1) PV display
(2) Group display
(8) Security indicator
(4) Data display
(2) + (3) + (4) : Setpoint display
(3) Symbol display
(5) Event indicator
(6) Key navigation indicator
(7) Parameter display level
indicator
No.ingure Name Description
(1)
PVdisplay
(white or red)
Displays PV.
Displays an error code if an error occurs.
Displays the scrolling guide in the Menu Display and
Parameter Setting Display when the guide display ON/
OFF is set to ON.
(2)
Groupdisplay
(green)
Displays a group number.
(3)
Symboldisplay
(orange)
Displays a parameter symbol.
(4) Datadisplay(orange) Displays a parameter setpoint and menu symbol.
(5)
Event indicator
(orange)
Lit when the alarms 1 to 8 occur.
Event displays other than alarms can be set by the
parameter.
(6)
Keynavigation
indicator
(green)
Lit or blinks when the Up/Down or Left/Right arrow key
operation is possible.
(7)
Parameterdisplay
level indicator
(green)
Displays the setting conditions of the parameter display
level function.
Parameterdisplaylevel EASY PRO
Easy setting mode Lit Unlit
Standard setting mode Unlit Unlit
Professional setting mode Unlit Lit
(8) Securityindicator(red)
Lit if a password is set. The setup parameter settings are
locked.
Chapter 3 Part Names
