YOKOGAWA UM33A User Manual

6-3
IM 05P03D21-01EN
Monitoring of Regular Operations
6

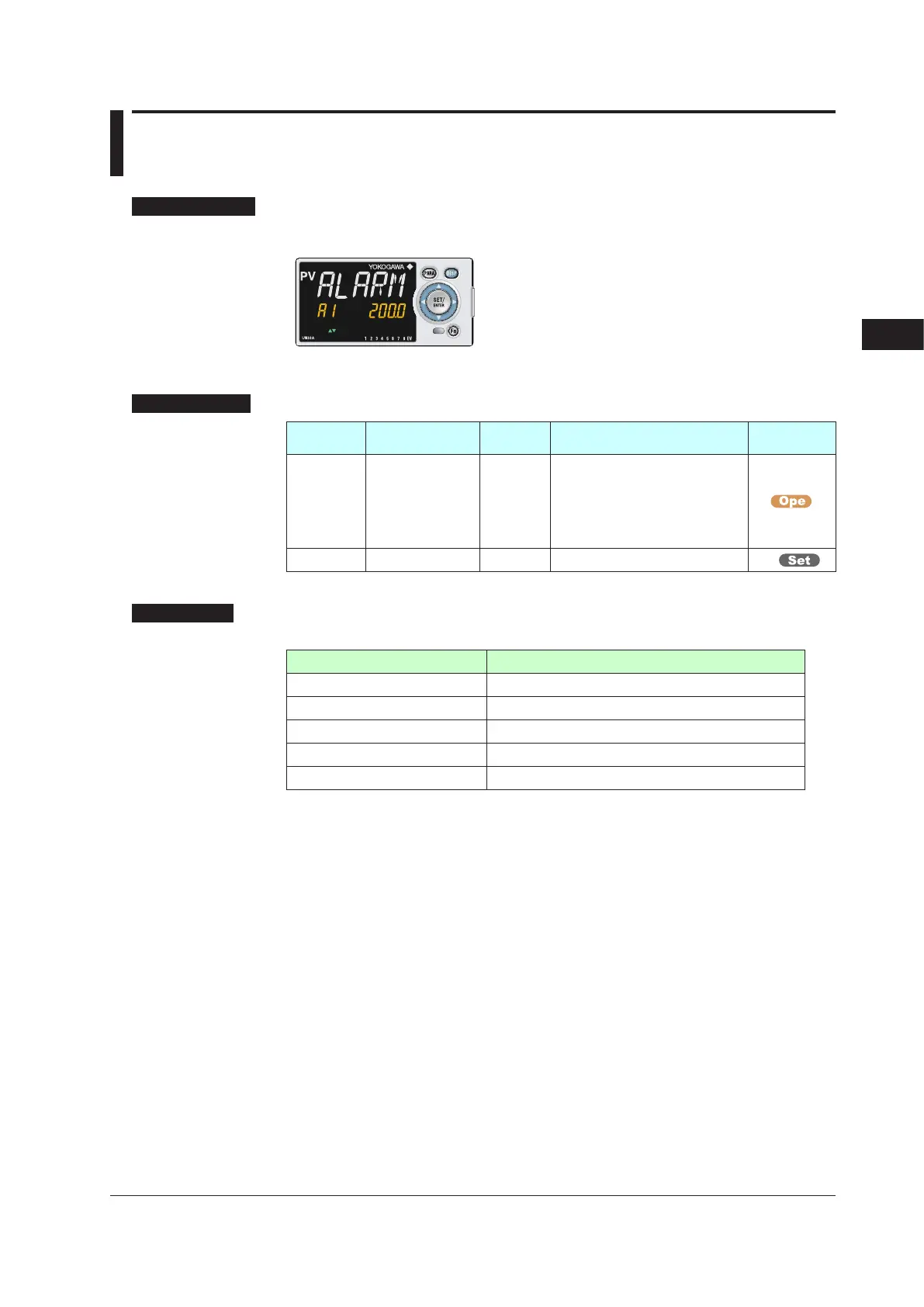

6.2 SettingAlarmSetpoint
SettingDisplay
Parameter Setting Display
8
Operation Display > PARA key for 3 seconds (to
[AL] Menu Display) > SET/ENTER key (The setting
parameter is displayed.) > Down arrow key (The setting
parameter is displayed.)
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
A1 to A8
Alarm-1 to -8
setpoint
EASY
Set a display value of setpoint of
PV alarm or velocity alarm.
-19999 to 30000 (Set a value
within the input range.)
Decimal point position depends on
the input type
AL
ALNO. Number of alarms PRO 0 to 8 CTL
Description
Each alarm type has eight alarm setpoints.
Alarm-related parameter Numberofsettings
Alarm type 8 (number of settings)
PV velocity alarm time setpoint 8 (number of settings)
Alarm hysteresis 8 (number of settings)
Alarm delay timer 8 (number of settings)
Alarm setpoint 8 (number of settings)
► Alarmtype:Chapter9AlarmFunctions
