16.2 Mounting Method
WARNING
Be sure to turn OFF the power supply to the indicator before installing it on the
panel to avoid an electric shock.
Mounting the Instrument Main Unit
Provide an instrumented panel steel sheet of 1 to 10 mm thickness.
After opening the mounting hole on the panel, follow the procedures below to install the
indicator:
1. Insert the indicator into the opening from the front of the panel so that the terminal
board on the rear is at the far side.

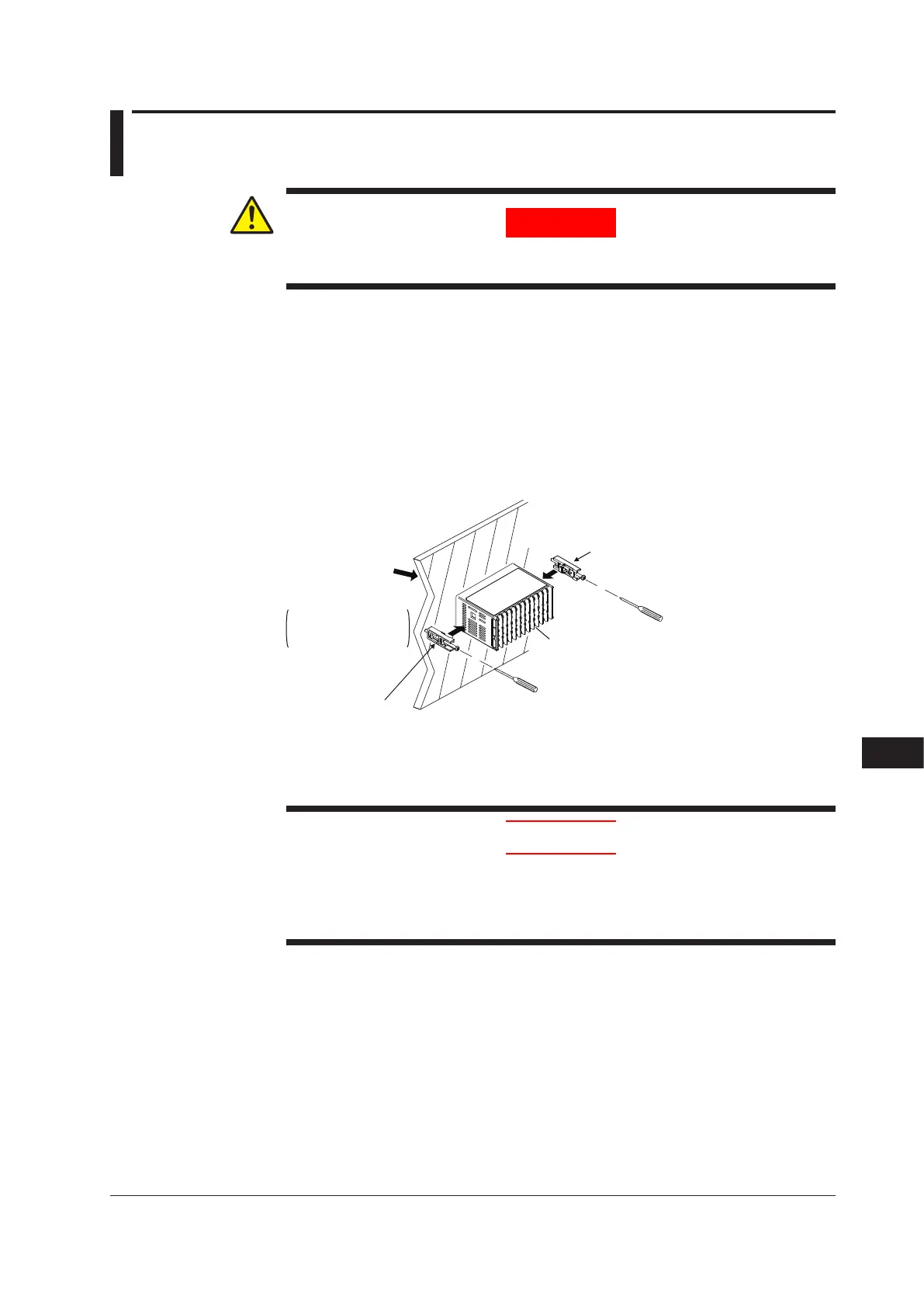

2. Set the brackets in place on the right and left of the indicator as shown in the figure
below, then tighten the screws of the brackets. Take care not to overtighten them.
Terminal
board
Bracket
(side mounting
Panel
Insert a screwdriver into the
brackets to tighten the screws.
Appropriate
tightening torque:
0.25 N•m
Direction to insert the
indicator
Insert the indicator
into the opening at
the front of the panel.
Bracket
(side mounting hardware)
To uninstall the indicator, perform the procedure in the reverse order.
CAUTION
1) Tighten the screws with appropriate tightening torque within 0.25 N•m. Otherwise
it may cause the case deformation or the bracket damage.
2) Make sure that foreign materials do not enter the inside of the instrument
through the case's slit holes.
