YOKOGAWA UM33A User Manual

10-2
IM 05P03D21-01EN

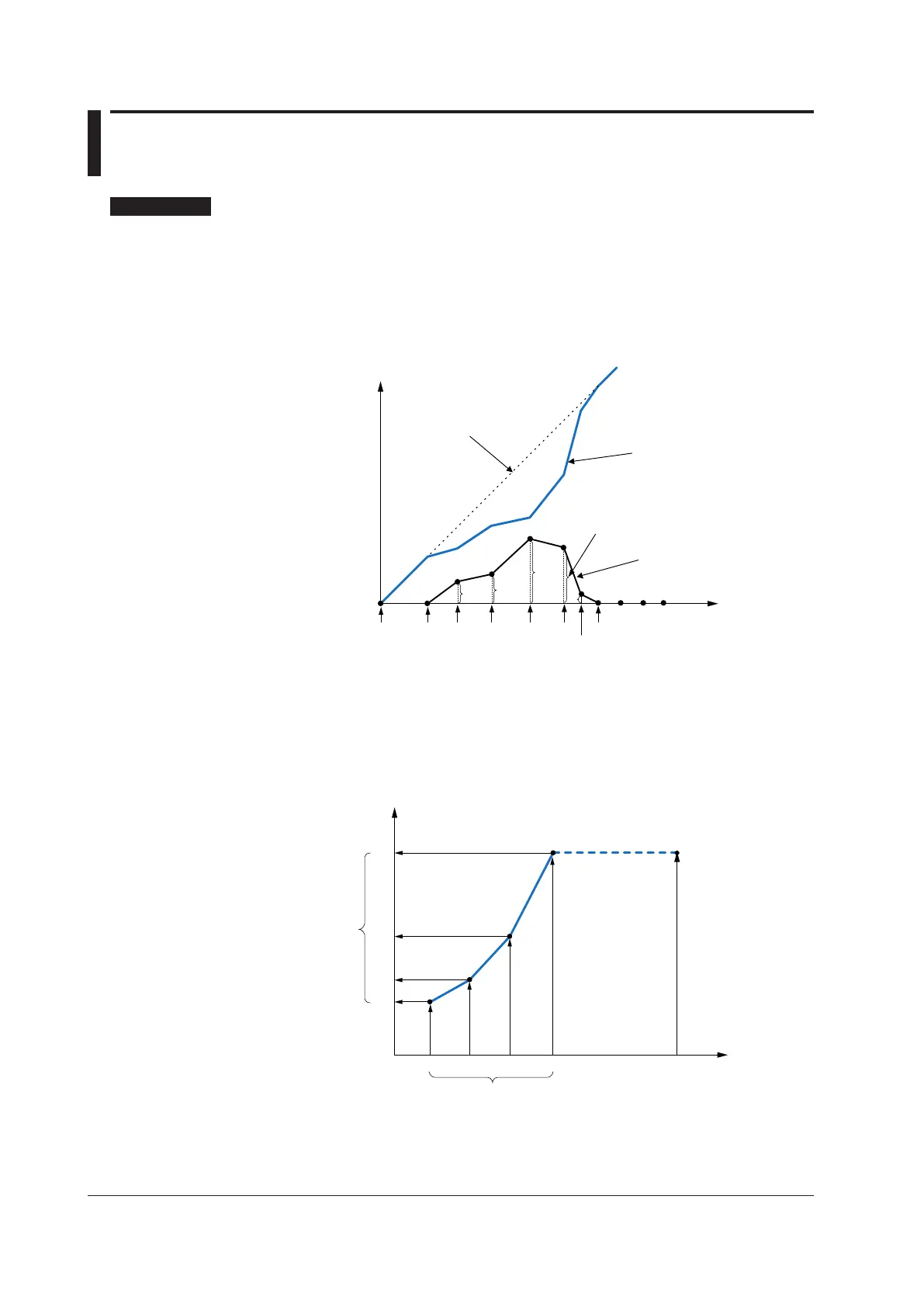

10.2 Setting10-segmentLinearizerforOutput
Description
The 10-segment linearizer can be used for PV input and retransmission output.
► Function block diagram: 8.1 Function block diagram
► 10-segment linearizer input: 7.1.4 (3) Setting 10-segment Linearizer
10-segment Linearizer Biasing
This function is used to correct the output by adding the corresponding bias values to
each of the 11 points of optionally set input values. When the 10-segment linearizer input
is A1 or less, B1 is added. Moreover, the input is A11 or more, B11 is added.
A1 A2 A3 A4 A5 A6
A7
A8
A9 A10 A11
B3
B4
B5
B6
10-segment
linearizer input
Actual output
10-segment linearizer bias
Corrected value
(Actual output +
10-segment linearizer bias)
10-segment
linearizer output
-5.0 to 105.0%
-5.0 to 105.0%
10-segmentLinearizerApproximation
This function is used to correct the output.
As shown in the figure below, the output values can be optionally set to 11 points of the
optionally set input values. When the 10-segment linearizer input is A1 or less, the value
of extended line between B1 and B2 is output. Moreover, when the input is A11 or more,
the value of extended line between B10 and B11 is output.
B1
A1 A2
A3 A4 A11
B2
B3
B4
-5.0 to 105.0%
-5.0 to 105.0%
A5 to A11 are
equalized to A4.
B5 to B11 are equalized to B4.
10-segment
linearizer input
10-segment
linearizer output
Actual output range
Output range
after
10-segment
linearizer
approximation
