Retransmission Output Functions
10

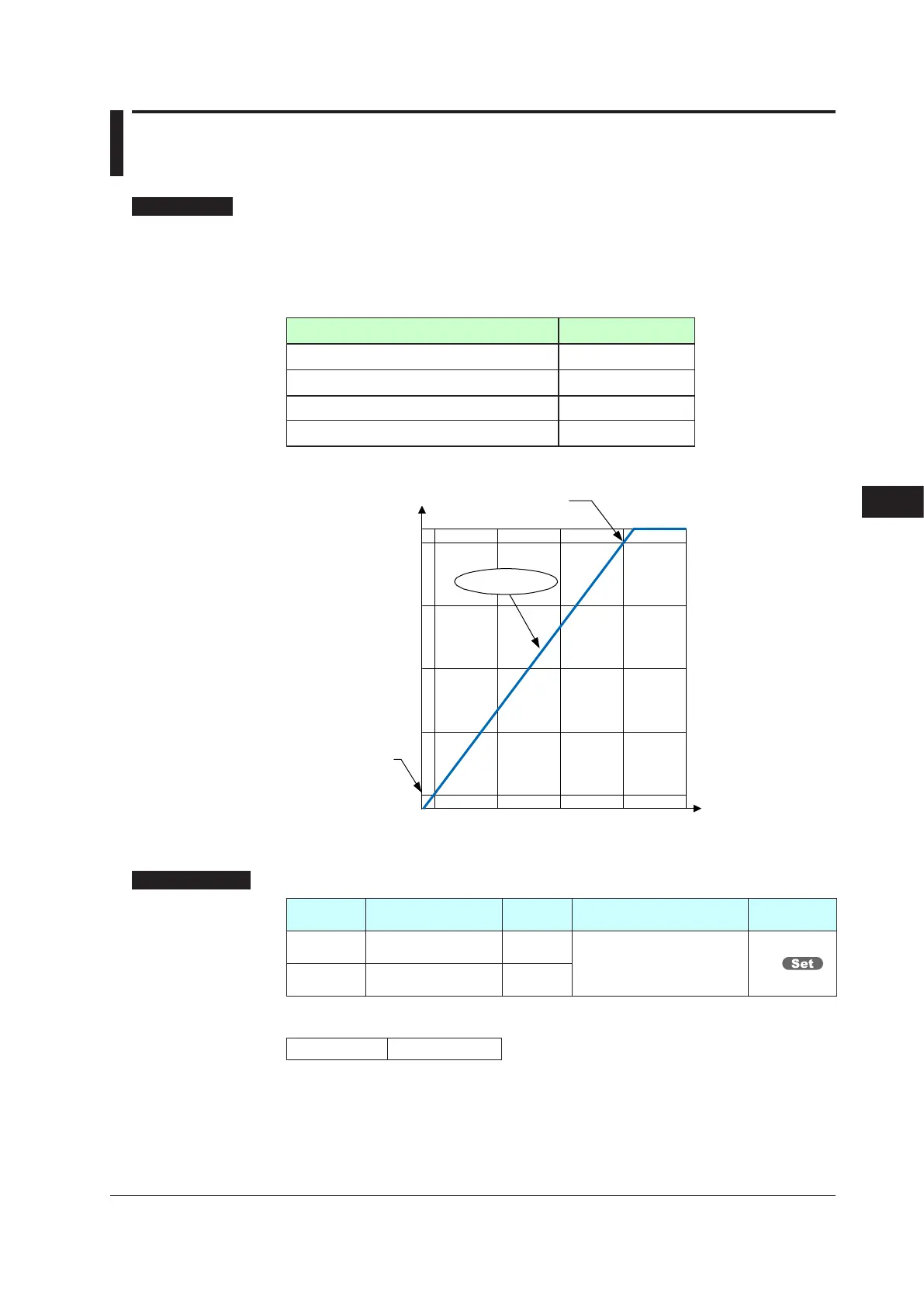

10.4 SettingSplitComputationOutputFunction
Description
The split computation output can be output by setting the breaking points for two points.
The current output range can be changed.
► Current output range: 10.3 Changing Current Output Range
SettingExample
RET terminal
Retransmission output type RTS=PV1
Current output 100% segmental point RET.H=75.0%
Current output 0% segmental point RET.L=0.0%
Current output range RET.A=4-20
Output before split computation
Output after computation
RET current output
0% segmental point
RET current output
100% segmental point
RET terminal
0
5025 75 100
25
50
75
100
105
%
%
20
mA
4 0
-5
-5
10
5
15
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
RET.H
100% segmental point
of RET current output
PRO
-100.0 to 200.0% OUT
RET.L
0% segmental point of
RET current output
PRO
Parameters and Corresponding Terminals
RET.H, RET.L RET terminal
