YOKOGAWA UM33A User Manual

7-5
IM 05P03D21-01EN
Input (PV) Functions
7

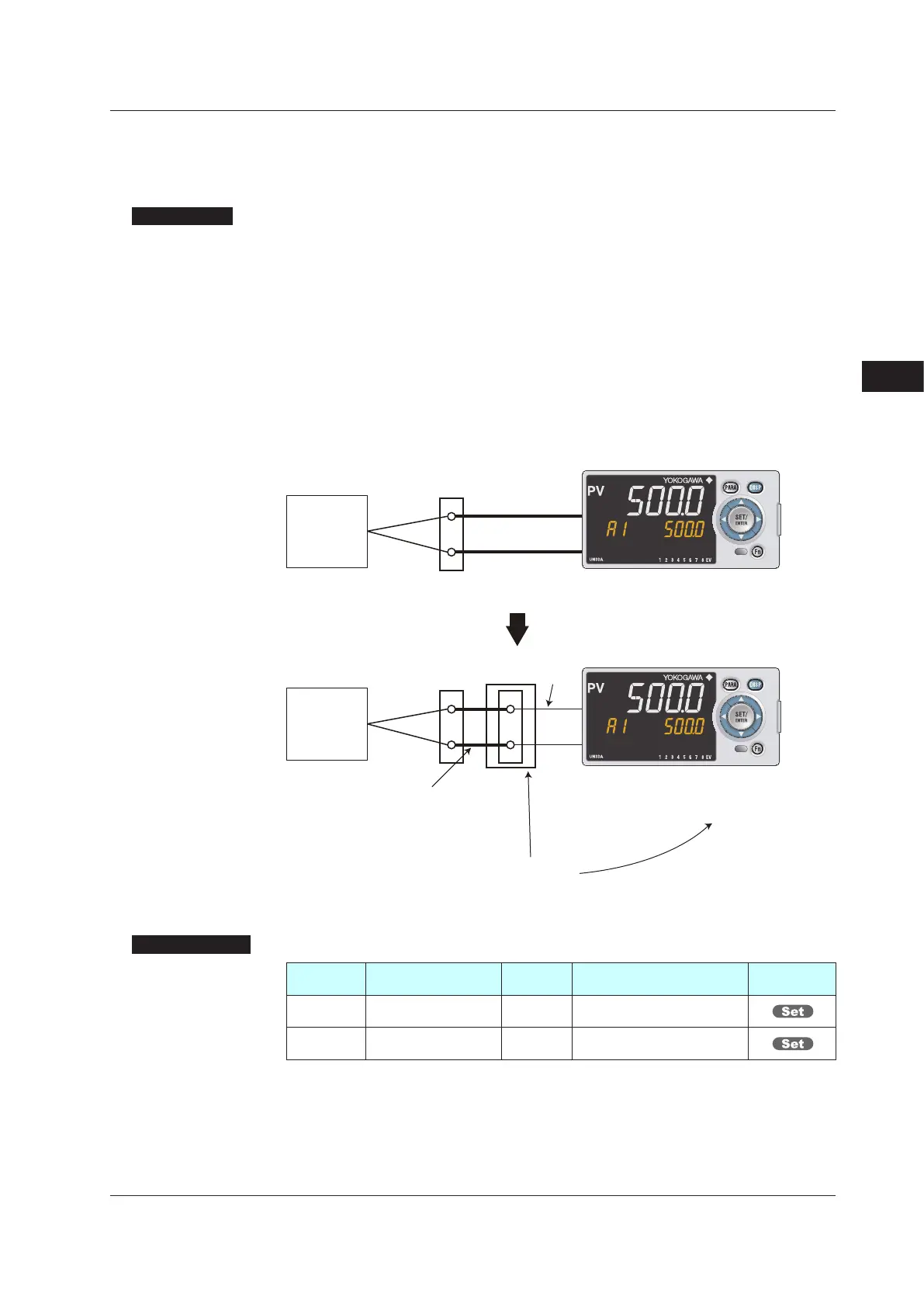

7.1.3 SettingReferenceJunctionCompensation(RJC)orExternalReference
JunctionCompensation(ERJC)
Description
ReferenceJunctionCompensation(RJC)
WhenTCinputisselected,presence/absenceofinputreferencejunctioncompensation
can be set.
Usually input values are compensated with the RJC function provided for the indicator.
However, if it is necessary to rigorously compensate the values with a device other than
the function of the indicator, for example with a zero-compensator, the RJC function of
the indicator can be turned off.
ExternalReferenceJunctionCompensation(ERJC)
For TC input, a temperature compensation value for external device can be set.
The external RJC can be used only when RJC = OFF.
8
8
Furnace
Furnace
UM33A
UM33A
Compensating lead wire
Compensating lead wire
Terminal block
Terminal block
TC
TC
Installed in an area where
ambient temperature is
fixed to 25°C.
Set the temperature in the
area using ERJC parameter.
Normal wiring
Example:
Setting parameters
RJC = OFF,
ERJC = 25.0°C
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
RJC
PV input reference
junctioncompensation
PRO
OFF: RJC OFF
ON: RJC ON
PV
ERJC
PV input external RJC
setpoint
PRO -10.0 to 60.0°C PV
7.1SettingFunctionsofPVInput
