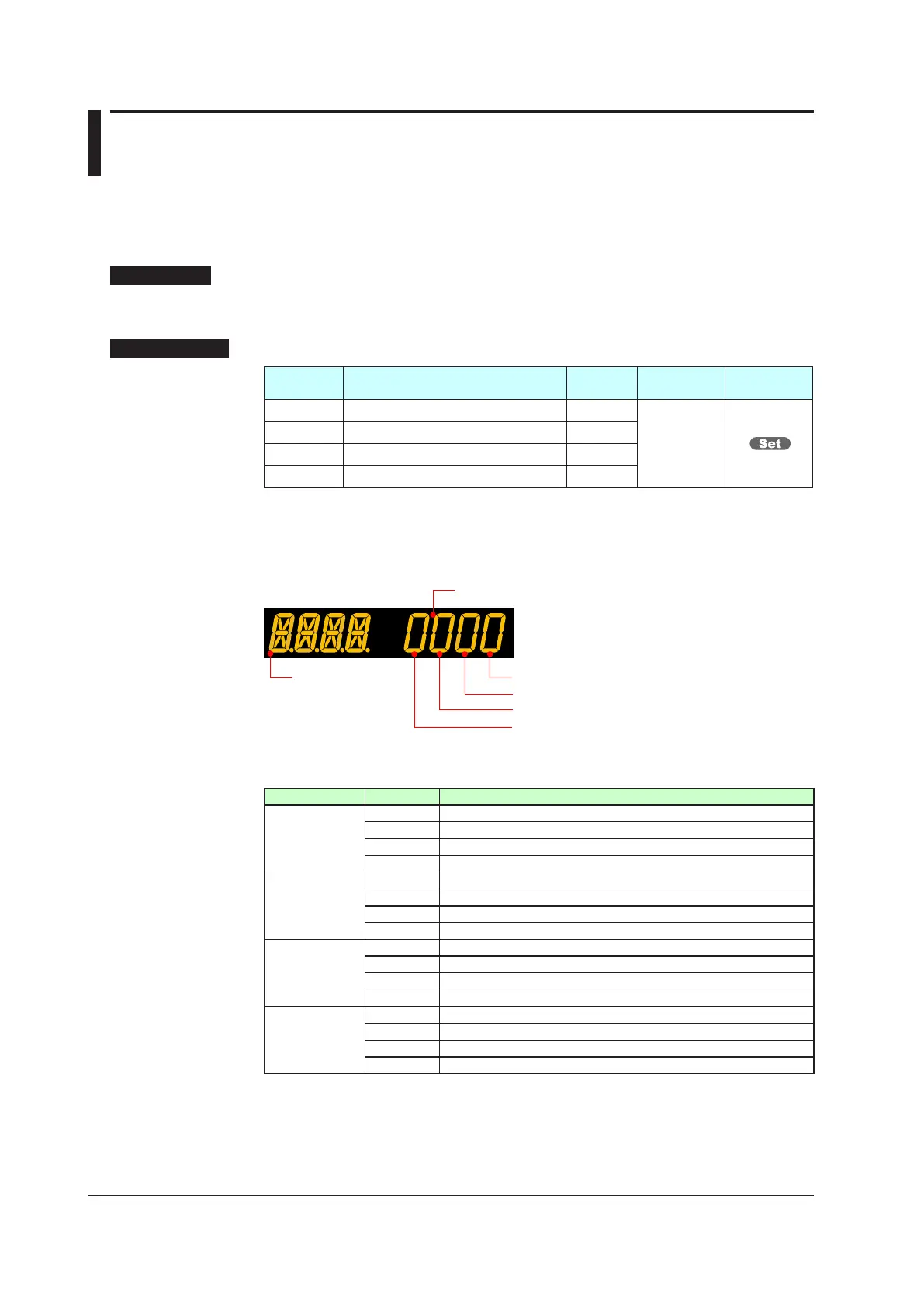

12.4 ConfirmationofKeyandI/OConditionand
Version
12.4.1 ConfirmationofKeyandI/OCondition
Description
Can be confirm the Key and I/O condition.
SettingDetails
Parameter
symbol
Name
Display
level
Settingrange Menusymbol
KEY Key status PRO
Read only. I/O
X000 DI1-DI2 status (equipped as standard) PRO
Y000 AL1-AL4 status (equipped as standard) PRO
Y100 DO11-DO15 status (E1-terminal area) PRO
Key confirmation parameters are displayed in hexadecimal.
When the error occurs, "1" is set on the bit of corresponding error , and the bit data is
displayed in hexadecimal.
Data display
1st digit (hexadecimal)
2nd digit (hexadecimal)
3rd digit (hexadecimal)
4th digit (hexadecimal)
Symbol display
ParameterKEY
Displayeddigit bit Description
1st digit
0 PARA key (0: OFF, 1: ON)
1 DISP key (0: OFF, 1: ON)
2 RIGHT arrow key (0: OFF, 1: ON)
3 DOWN arrow key (0: OFF 1: ON)
2nd digit
4 SET/ENTER key (0: OFF, 1: ON)
5 UP arrow key (0: OFF, 1: ON)
6 LEFT arrow key (0: OFF, 1: ON)
7 –
3rd digit
8 –
9 –
10 Fn key (0: OFF, 1: ON)
11 –
4th digit
12 –
13 –
14 –
15 –
