DetailsoftheOperationDisplay
The following is the Operation Display types and each display and operation description.
PV display
Setpoint display
8
OperationDisplay Displayandoperationdescription
PVDisplay
PV display: Displays measured input value (PV).
(Setpoint display shows nothing.)
SELECTDisplay
SELECT Display is for registering frequently-used parameters from
Parameter Setting Display, and for displaying them on Operation
Display so that the parameter settings can be easily changed in normal
operation.
PV display: Displays measured input value (PV).
Setpoint display: Displays and changes the registered parameter.

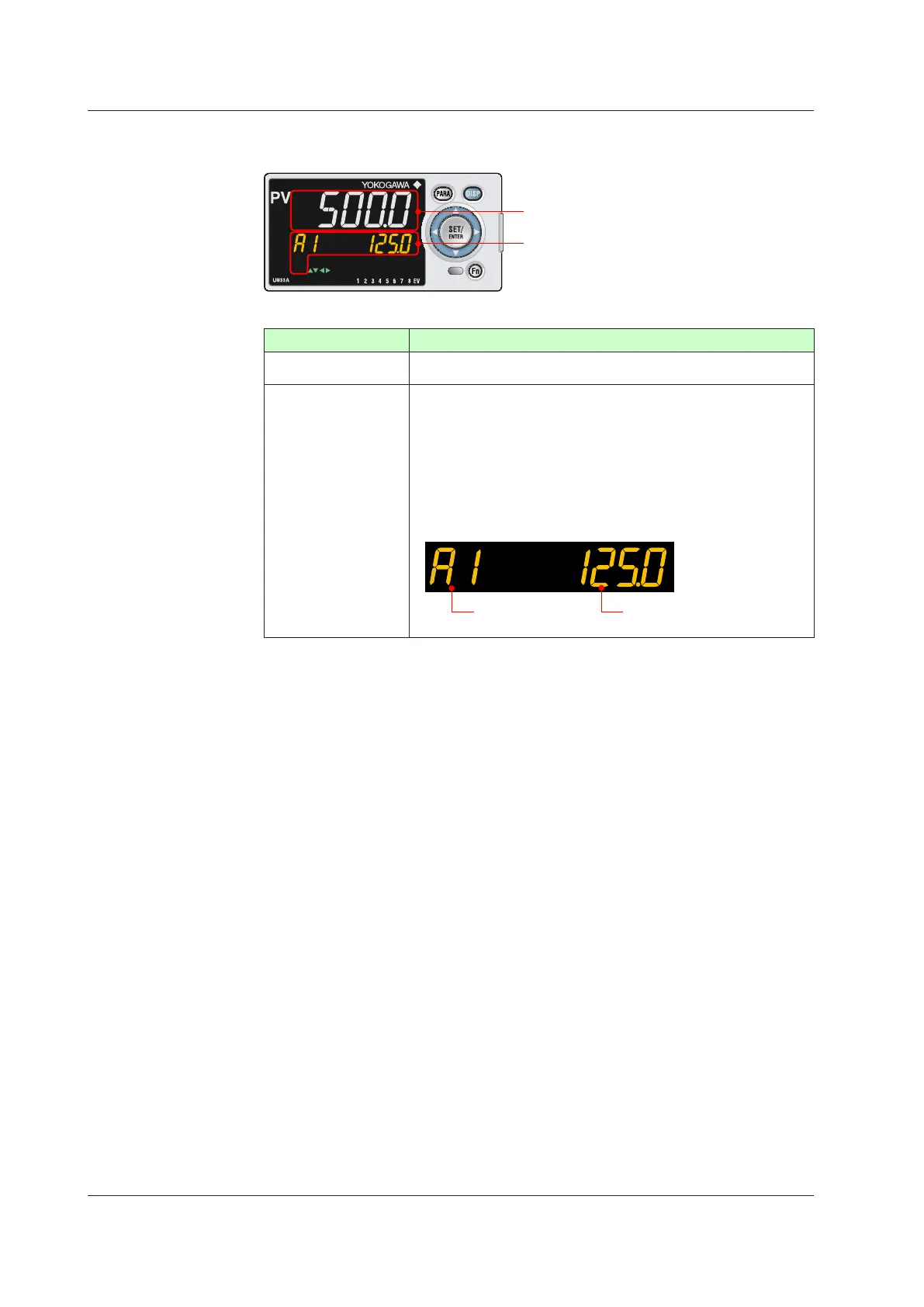

The following is the display example when the parameter A1 (alarm-1
setpoint) is registered.
PV inputSymbol
6.1MonitoringofOperationDisplays
