OFFLINE MAPS
Offline Maps allows the Pilot to download and save map tiles of mission areas. Downloading Offline Maps
requires a WiFi connection to the Internet to access the map provider download servers. Downloading
Offline Maps allows the Pilot to use map tiles in Mission Planner mode to visually assess the location of the
mission flight area. It is highly encouraged to download Offline maps at an office/home location due to map
tile sizes. Offline Maps can also be downloaded via mobile hotspot in the mission area if desired.
Add New Set
Tap the Add New Set soft key (ensure the ST16S is connected to a WiFi network with Internet access). Tap
and drag the map until the desired mission area (depending on the Internet connection speed and size of
the area, map tiles might take a few moments to appear) is displayed. To resize the map tiles, pinch or
expand two fingers on the screen. The two rectangles on the left of the screen will show the Minimum zoom
level and the Maximum zoom level. Using the right menu, the Pilot can name the map tile set using the

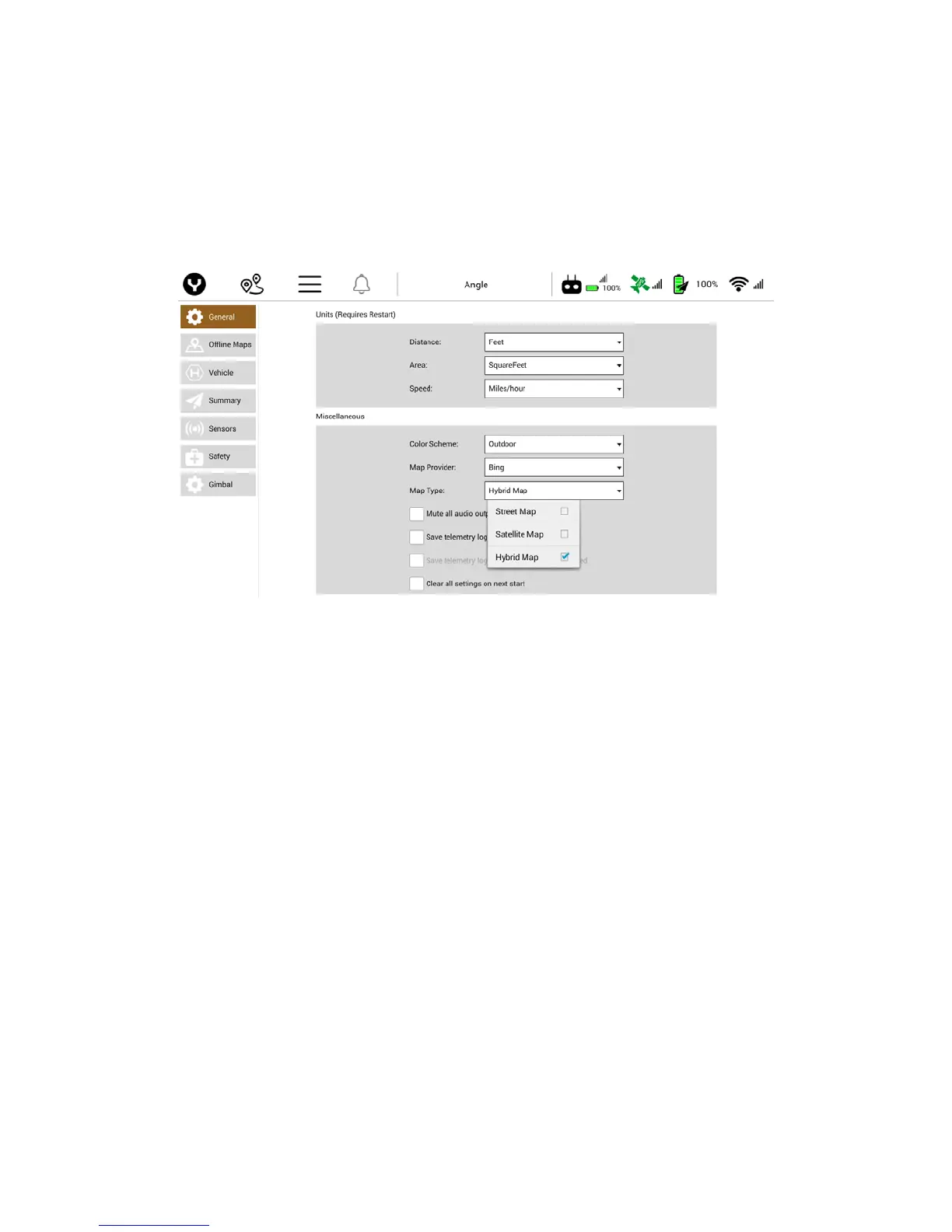

custom text box. Using the drop down menu, the Pilot can change between the following Maps:
 Google Street Map
 Google Satellite Map
 Google Terrain Map
 Bing Street Map
 Bing Satellite Map
 Bing Hybrid Map
 Esri Street Map
 Esri Satellite Map
 Esri Terrain Map
 Mapbox Map(s)
If the Mapbox Access Token has been added under the options menu, Mapbox Account maps will be
accessible.
