Zebra TC20

Accessories
31

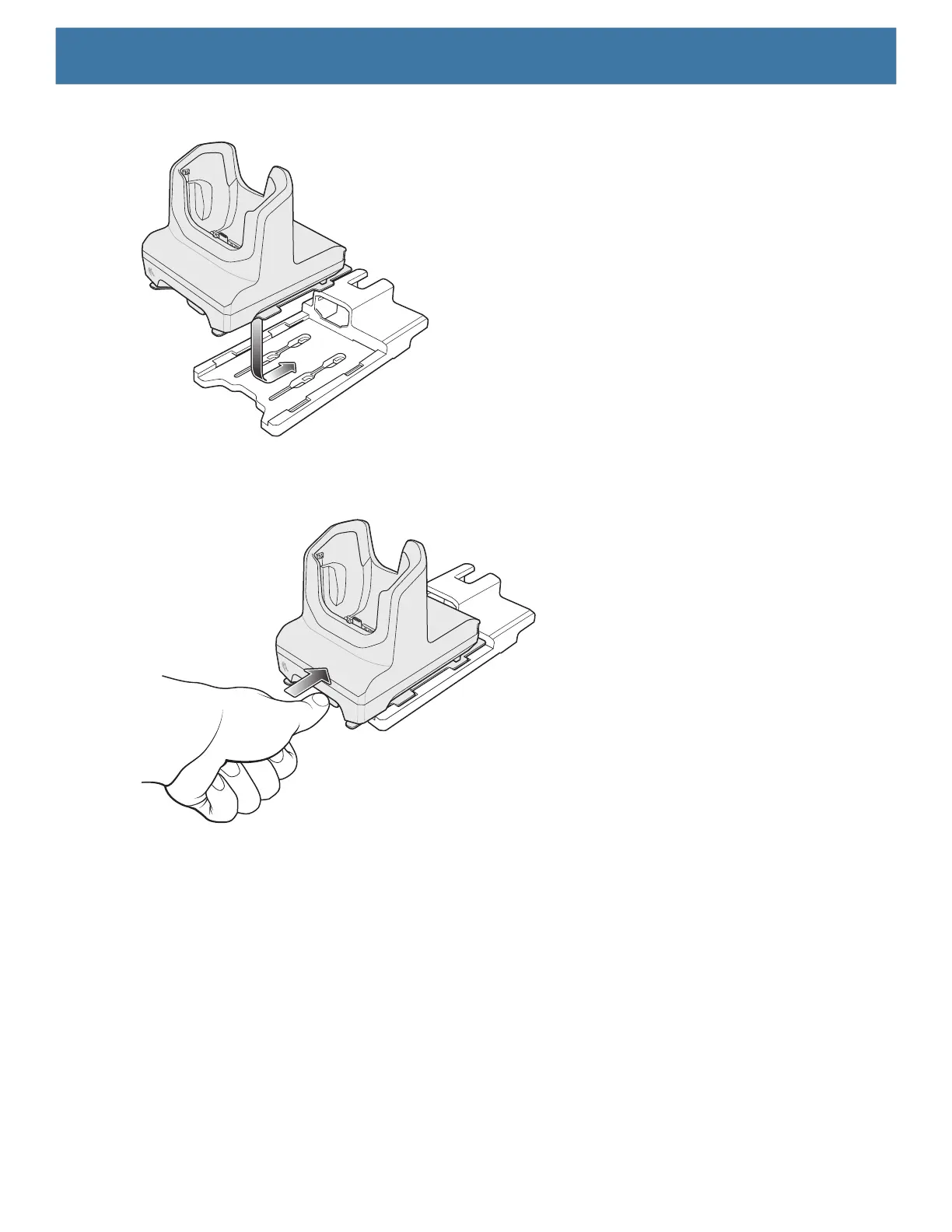

Figure 23 Align Cradle/Plate with Bracket
6. Push the plate into the bracket.
Figure 24 Push Plate into Bracket
7. Turn over the bracket and cradle.
8. Secure the thumbscrew.
