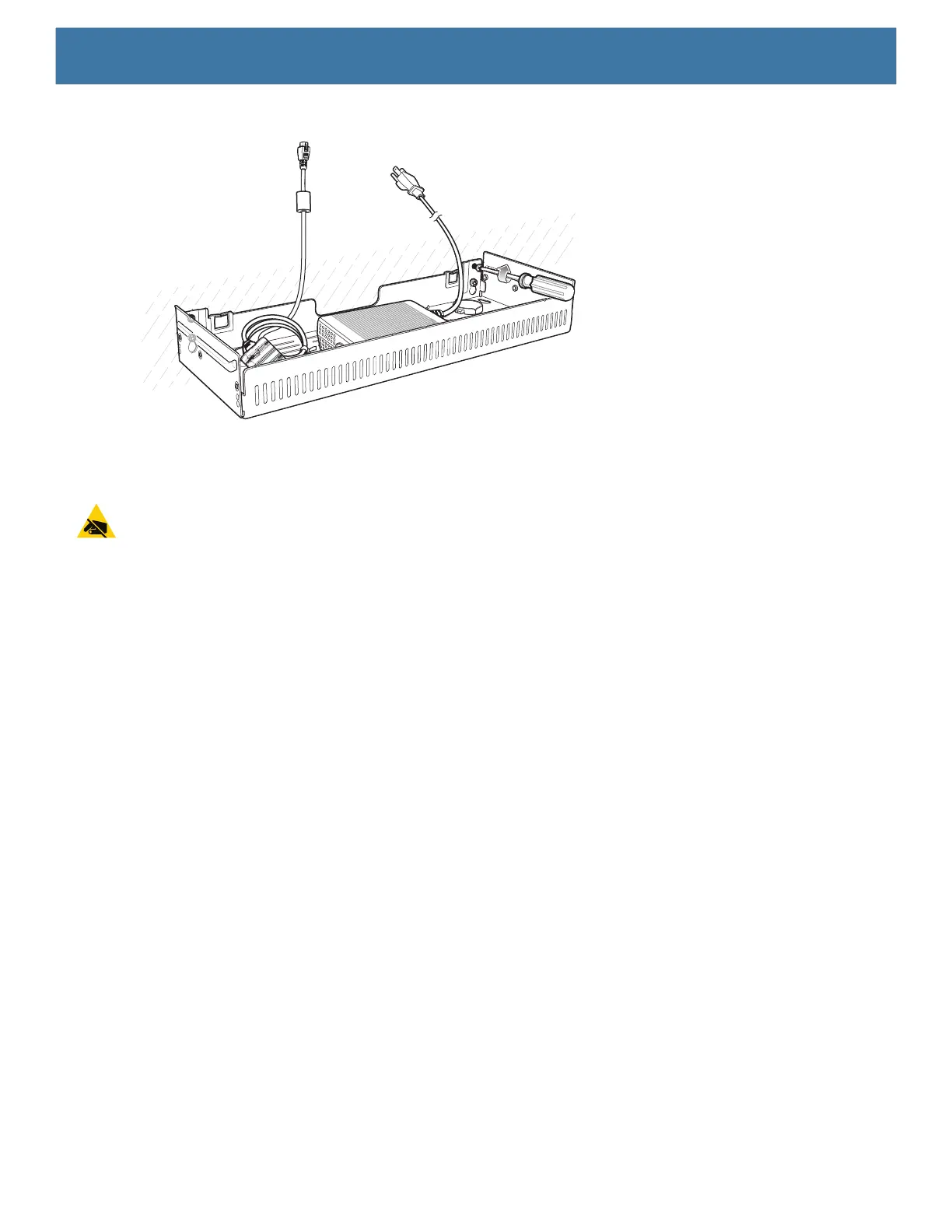

Figure 48 Horizontal Installation - Tighten Screws
7. Assembly the 5-Slot Charge Only cradle onto the bracket. See steps 7 through 11 on page 40.
8. Route cables and connect to power source.
CAUTION: Installer should ensure that all building codes are followed when connecting the power supplies to an AC power
source.
While installing the brackets, power supplies and cables:
• Use tie wraps to secure cables to the bracket and rails.
• Coil cables wherever possible.
• Route power cables along the rails.
• Route inter-cradle cables to the side rails and then from the rails to the bracket.
