139
Troubleshooting
Print Engine Diagnostics
8/23/12 P1051584-002

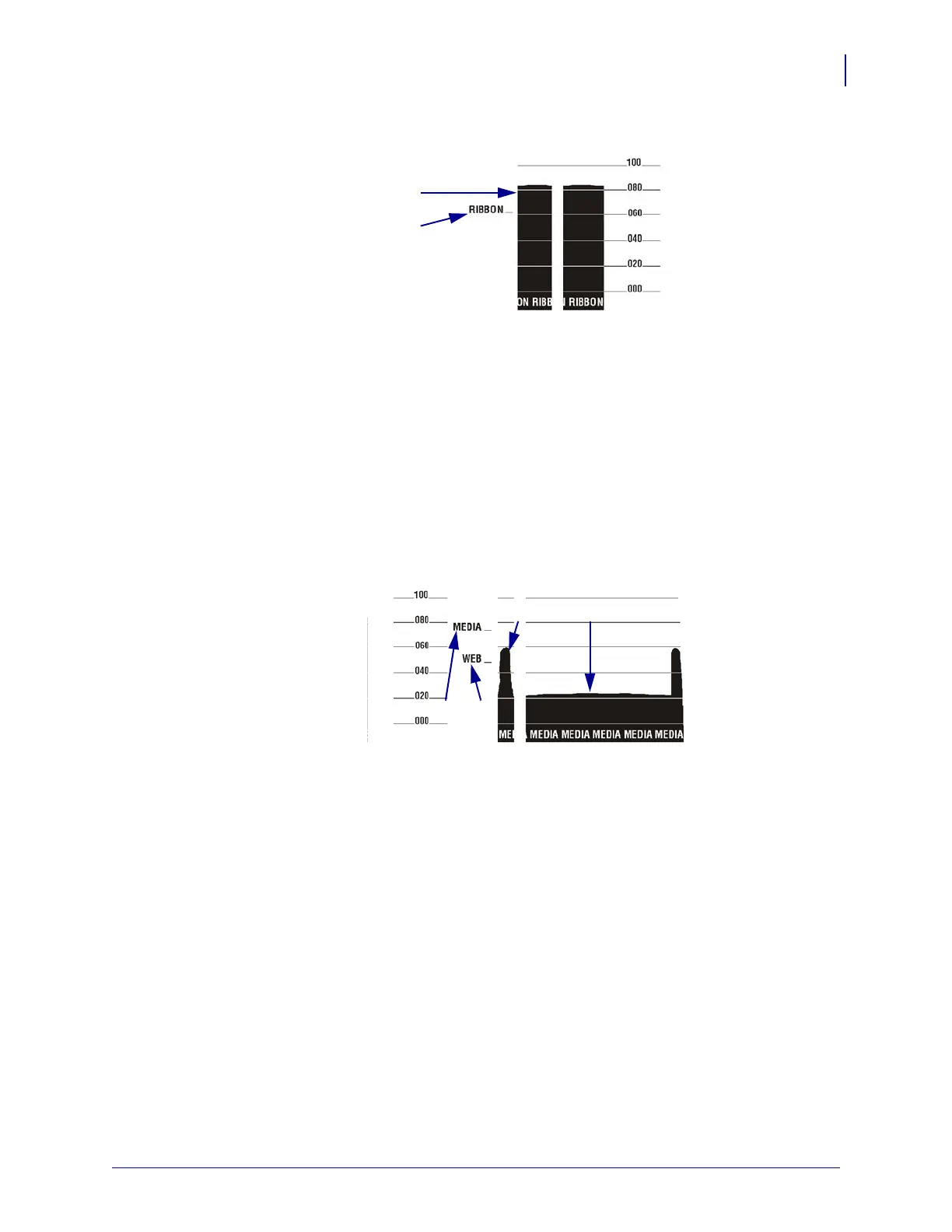

Figure 18 • Sensor Profile (Ribbon Section)
Media Sensor Profile (Figure 19) The media sensor readings are shown as bars and flat
areas on the sensor profile (
Figure 19). The bars (1) indicate gaps between labels (the web),
and the low areas (2) indicate where labels are located. If you compare the sensor profile
printout to a blank length of your media, the bars should be the same distance apart as the gaps
on the media. If the distances are not the same, the print engine may be having difficulty
determining where the gaps are located.
The media sensor threshold settings are shown by the words MEDIA (3) for the media
threshold and
WEB (4) for the web threshold. Use the numbers to the left of the sensor
readings to compare the numeric readings to the sensor settings.
Figure 19 • Sensor Profile (Media Section)
