149
Applicator Interface Board Reconfiguration
Changing Jumper Settings for Isolated Mode
8/23/12 P1051584-002

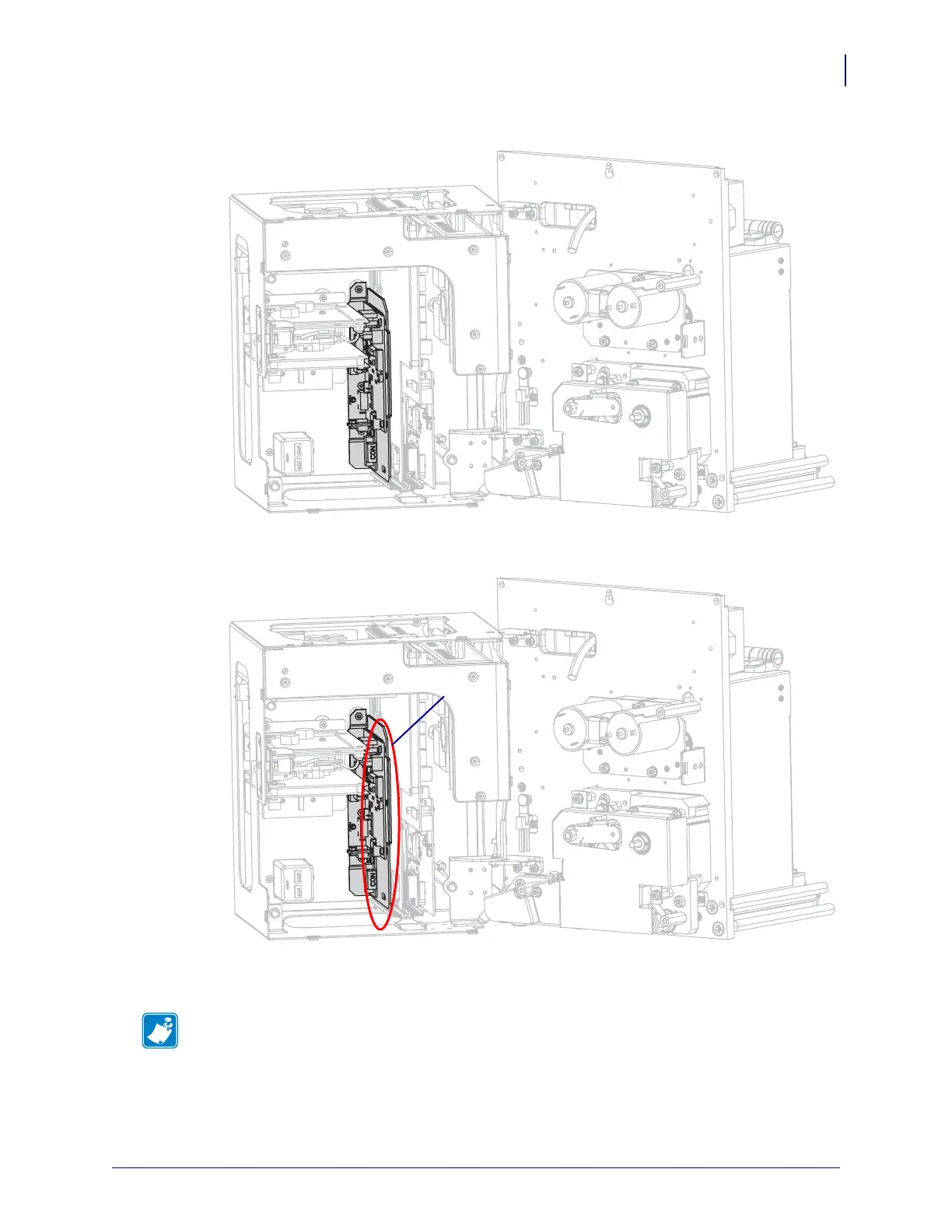

8. Inside the print engine, locate the applicator interface board.
9. Disconnect the connectors (1) along the accessible edge of the applicator interface board.
Note how the connectors are attached to assist with reattachment later in this procedure.
10. Gently pull the applicator interface board partially away from the back plane of the print
engine.
Note • Avoid disconnecting or pinching any cables inside the electronics enclosure.
