Zebra ZE500 User Manual

Applicator Interface Board Reconfiguration
Changing Jumper Settings for Isolated Mode
154
P1051584-002 8/23/12
17. Align the mounting holes in the applicator interface board with the holes in the back plane
of the print engine.

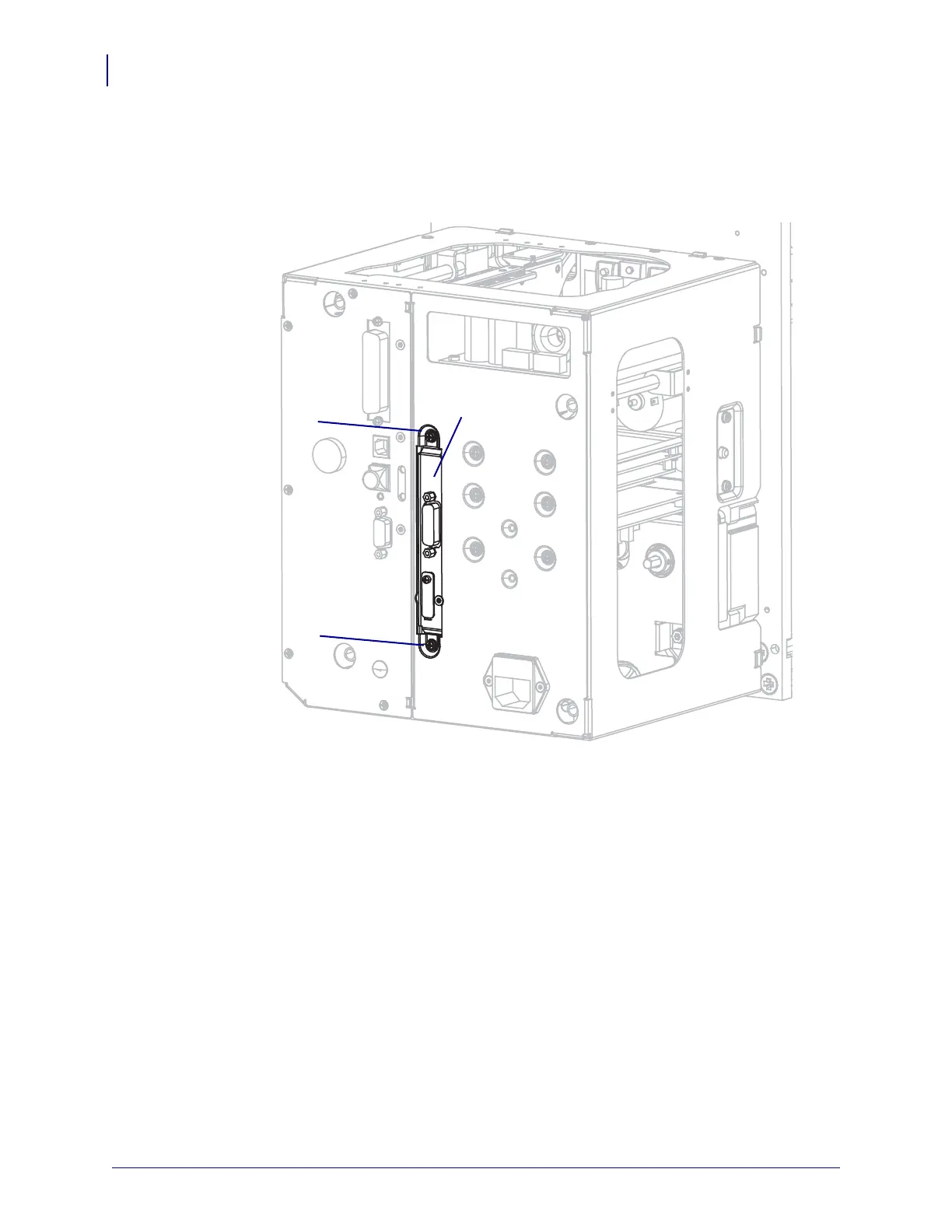

18. Reinstall the two mounting screws (1) to secure the applicator interface board (2) to the
back plane of the print engine.
Close the Electronics Enclosure
19. Ensure that all wires are routed properly and are not causing any obstructions, and then
carefully swing the electronics enclosure closed.
20. Slide the electronics cover onto the print engine.
21. Reinstall the four electronics cover mounting screws.
2
1
1

Zebra ZE500 Specifications

General

Print technology	-
Maximum resolution	300 x 300 DPI
Maximum printing width	168 mm
Wi-Fi	No
Ethernet LAN	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Connectivity technology	Wired
Parallel ports quantity	1
Flash memory	64 MB
Internal memory	16 MB
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 129-Auto, Code 39, Code 49, Code 93, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E
Processor frequency	133 MHz
Page description languages	XML, ZPL, ZPL II
Display	LCD
Product color	Black
Housing material	Metal
Core diameter	25.4 mm
Ribbon length	600 m
Maximum label width	180 mm
Maximum media length	3810 mm
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	-40 - 71 °C
Operating temperature (T-T)	32 - 104 °F
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 85 %
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	438 mm
Width	245 mm
Height	300 mm
Weight	17300 g
