Zebra ZE500 - Page 153

153
Applicator Interface Board Reconfiguration
Changing Jumper Settings for Isolated Mode
8/23/12 P1051584-002

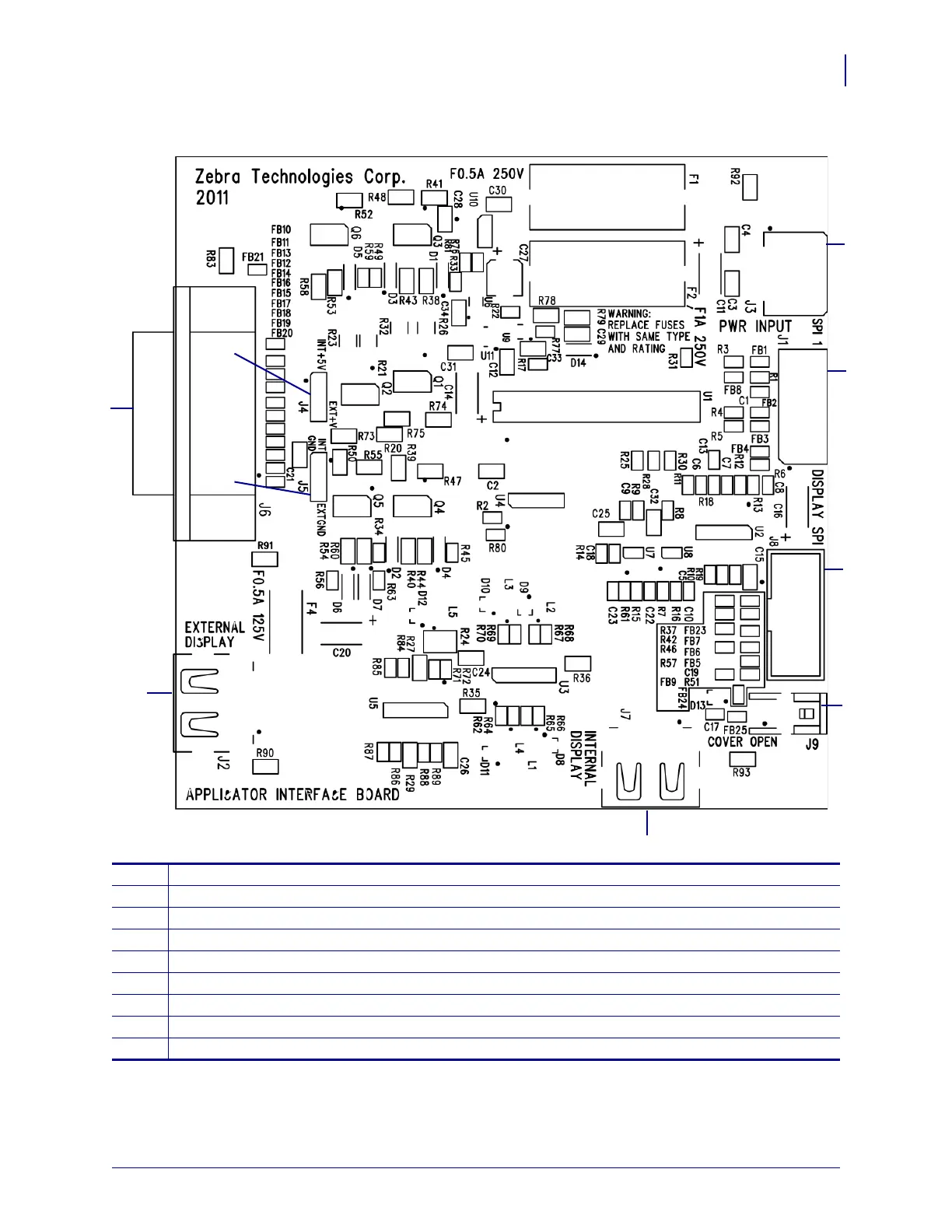

Figure 20 • Applicator Interface Board Connections
1
2
3
4
5
7
8
9
6
1
J3: Applicator interface power cable
2
J1: Locking SP comm cable
3
J8: Control panel SPI extension (ribbon) cable
4
J9: Door-open sensor cable
5
J7: Internal HDMI connector for control panel
6
J2: External HDMI connector for deported control panel
7
J5: Jumper
8
J6: Applicator interface cable
9
J4: Jumper
