Printer Setup and Operation
Print Engine Installation
52
P1051584-002 8/23/12

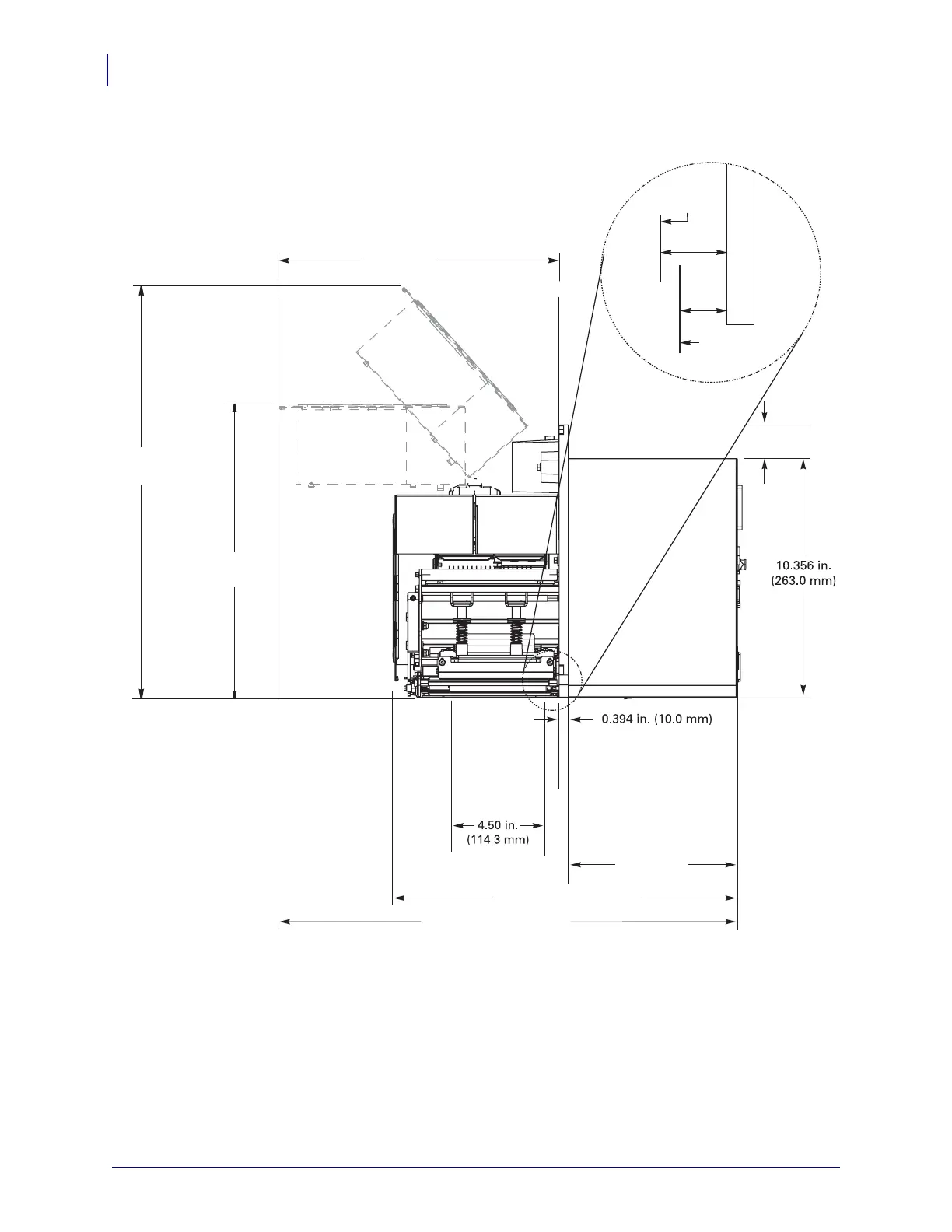

Side View—ZE500-4 Print Engine
12.13 in
(308.2 mm)
1.454 in. (37 mm)
15.89 in.
(403.7 mm)
12.73 in.
(323.2 mm)
7.34 in.
(186.5 mm)
14.95 in. (379.73 mm)
19.87 in. (504.7 mm)
0.613 in.
(15.6 mm)
0.52 in.
(13.2 mm)
Ribbon and
media edge
First print
element
Mainframe
