Zebra ZE500 - Page 53

53
Printer Setup and Operation
Print Engine Installation
8/23/12 P1051584-002

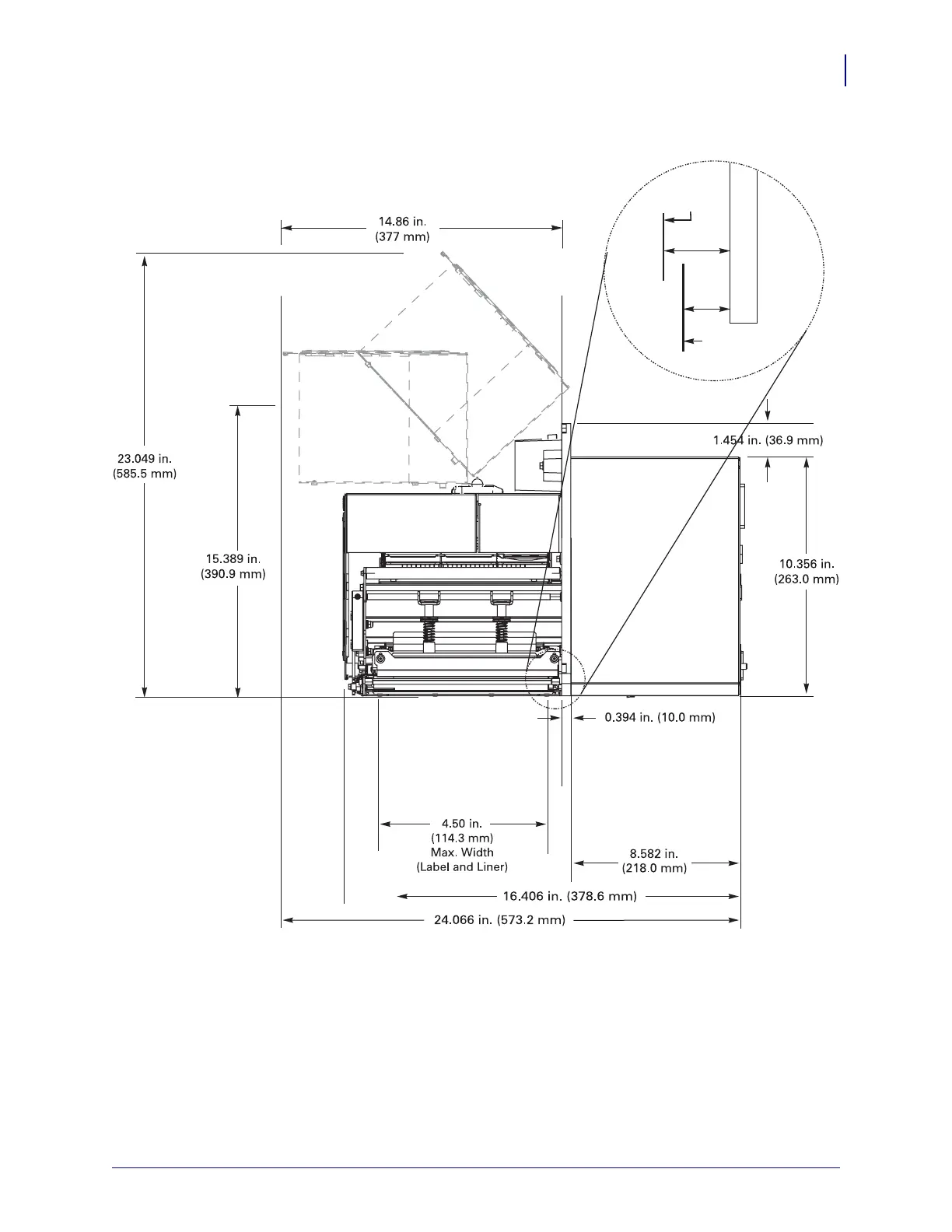

Side View—ZE500-6 Print Engine
0.613 in.
(15.6 mm)
0.52 in.
(13.2 mm)
Ribbon and
media edge
First print
element
Mainframe
