Zebra ZE500 - Page 63

63
Printer Setup and Operation
Load Ribbon and Media
8/23/12 P1051584-002

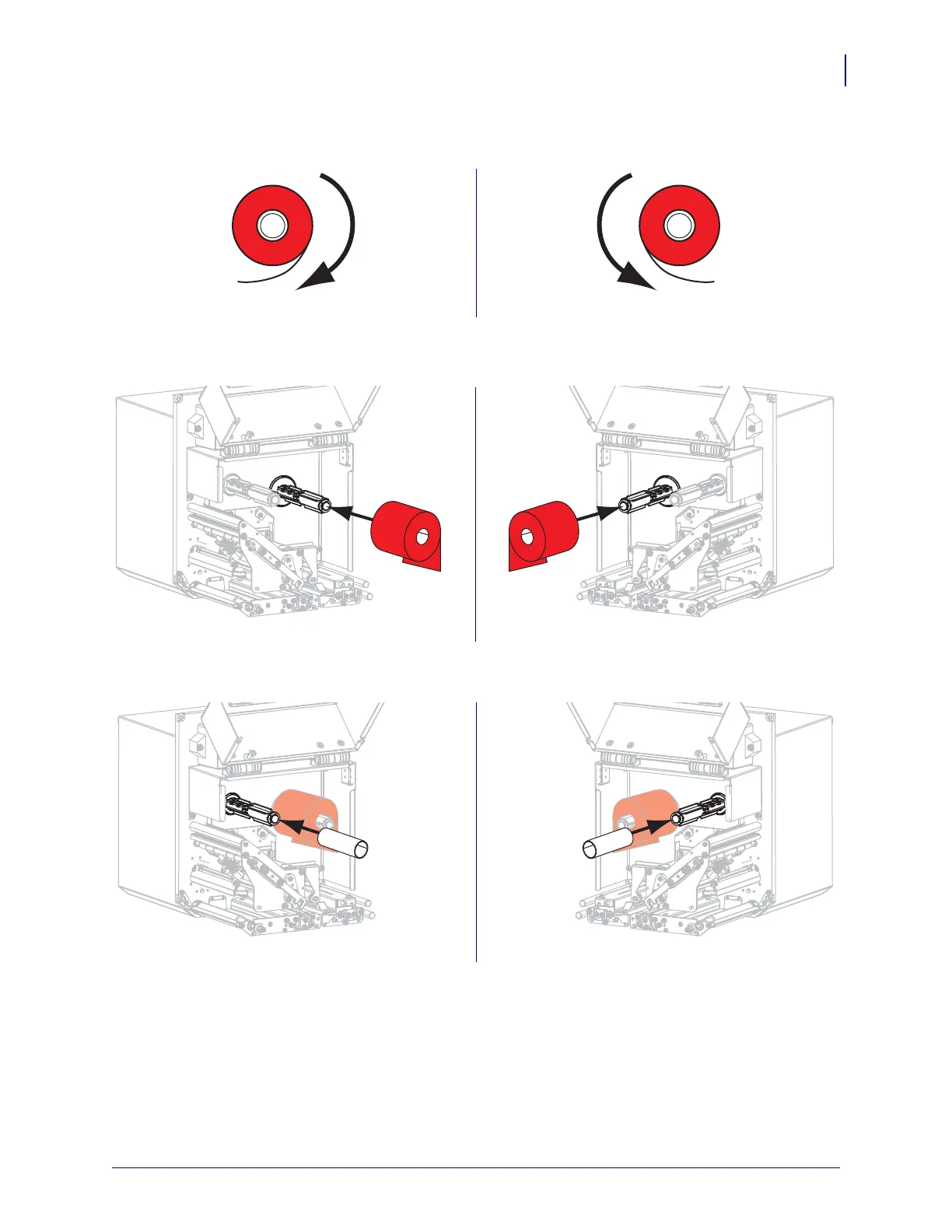

2. Position the ribbon roll with the loose end unrolling in the direction shown.
3. Place the roll of ribbon on the ribbon supply spindle. Push the roll back as far as it will go.
4. Place an empty ribbon core on the ribbon take-up spindle. Push the core back as far as it
will go.
LH RH
LH RH
LH RH
