Zebra ZE500 - Page 65

65
Printer Setup and Operation
Load Ribbon and Media
8/23/12 P1051584-002
Loading Media
7. Load media on the media supply reel of the applicator (refer to the applicator’s
documentation for more information).

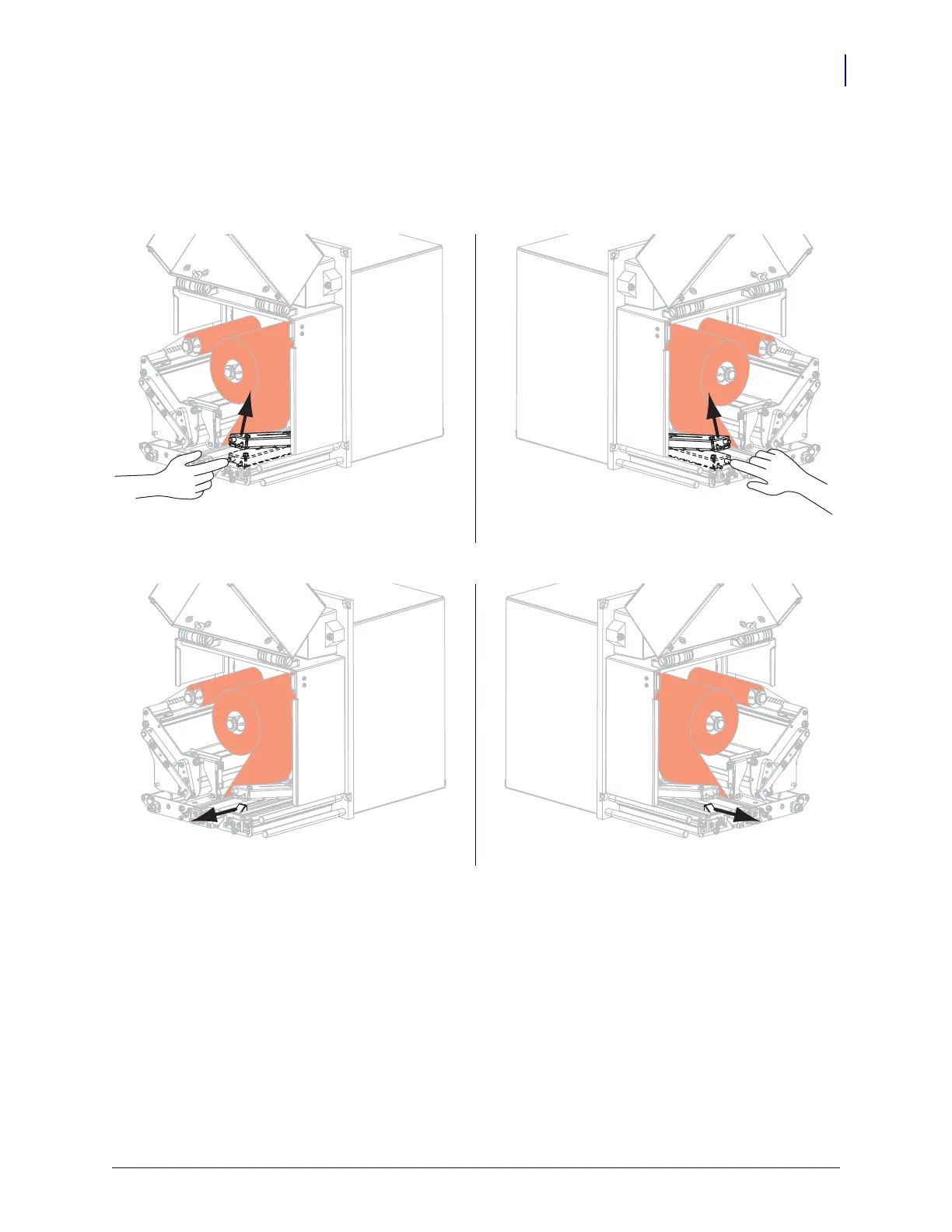

8. Press the release button on the pinch roller assembly. Allow the assembly to pivot upward.
9. Slide the media guide all the way out.
LH RH
LH RH
