Device overview S88 / OPMI Lumera T
Version 8.0
Page 98 G-30-1682-en
6 Flap
The flap is used as the mechanical indicator for the operating status of the
halogen lamps.
– When the flap is closed, the main lamp is operative.
– When the flap is open, the main lamp has failed. The backup lamp is on.
7 Filter selector knob for the additional integrated halogen light source

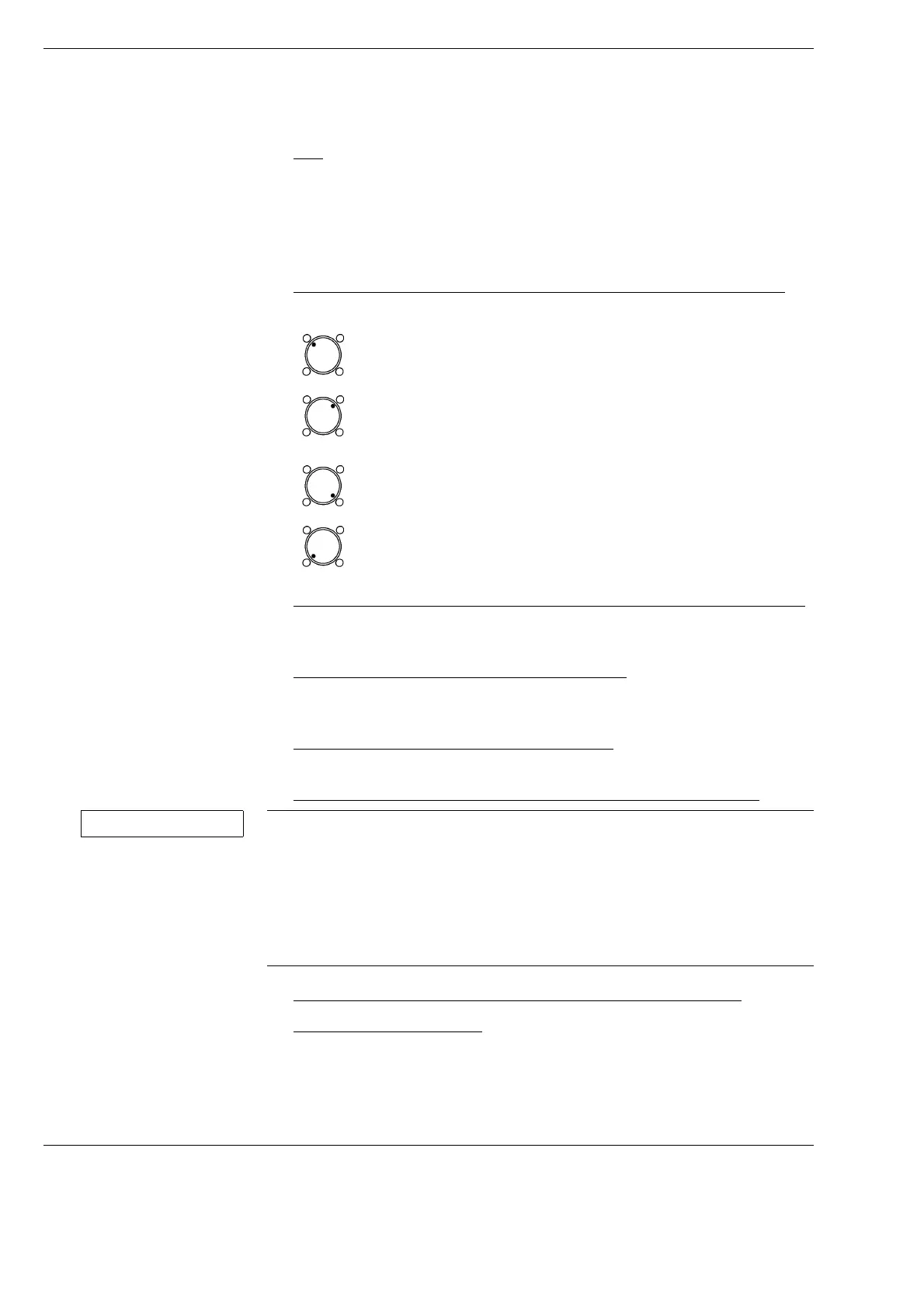

The filter selector knob has four positions:
8 Opening the lamp module of the additional integrated halogen light source
When you press this button, the slide-in lamp module is partially ejected.
Pull out the lamp module all the way to change the lamp.
9 Manual activation of the halogen backup lamp
If the automatic activation function fails, press this button to switch on the
backup lamp.
10 Indicator: Superlux Eye backup lamp is in use
When the segment in the knob lights up, the backup lamp is in use.
11 Ventilation grid for the additional integrated halogen light source
12 Lamp module of the additional integrated halogen light source
13 Superlux Eye lamp module
No filter
blue barrier filter (retina protection filter): When operating on
the eye, always use this filter to protect the patient's eye against
unnecessary radiation (retinal injury).
KK 40 filter:
to increase the color temperature
Empty filter position
NOTE Overheating of the lamp module!
If ventilation grids are covered e.g. by drapes, this may lead to overheating
of the ventilation modules and deactivation of the lamp.
• Never cover the ventilation grids.
• Lamps switched off due to overheating will be automatically switched on
again when they have cooled down.
