Setting up the light curtain
79
10.2.3 Adjusting the height of the light curtain

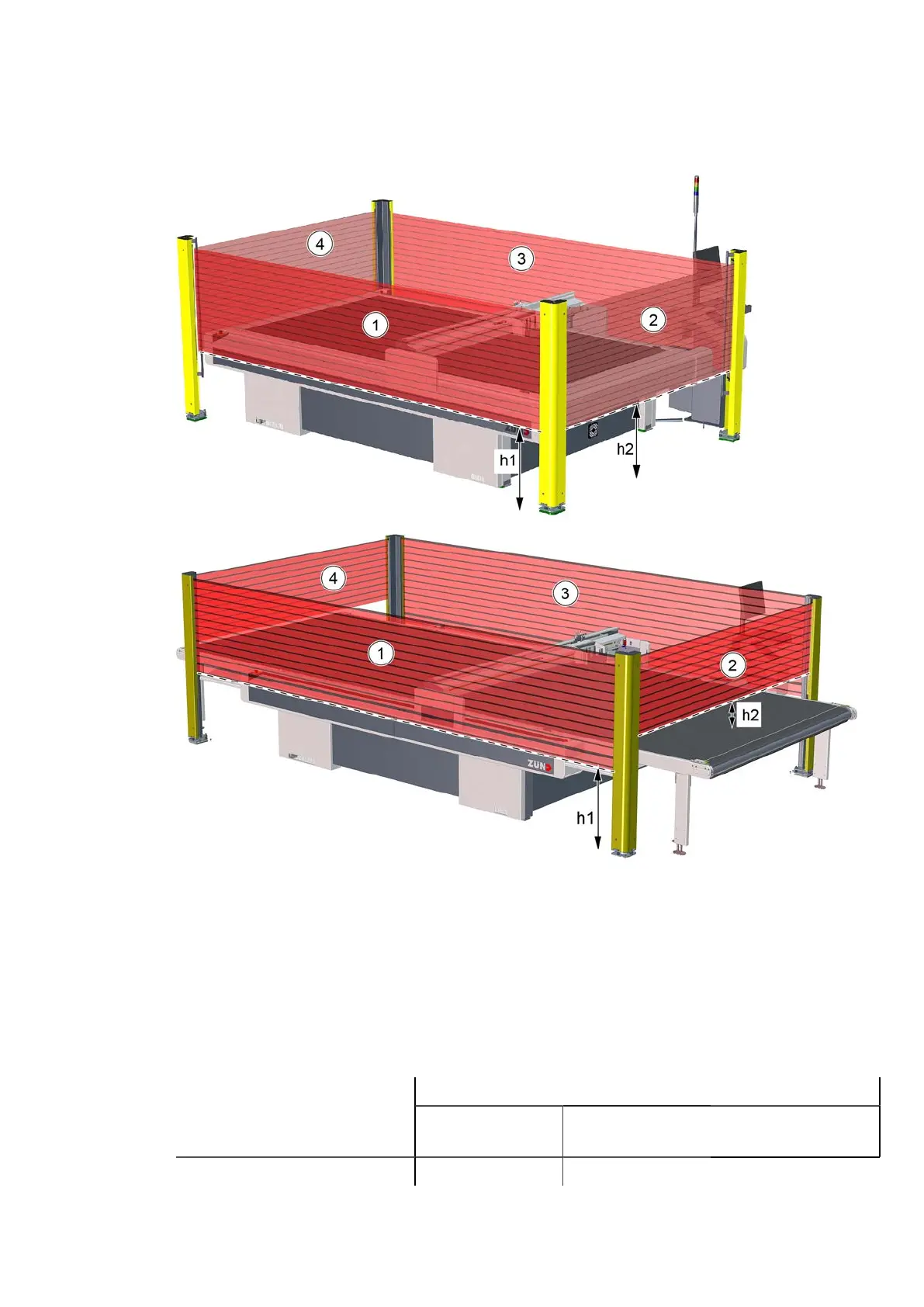

1 Left light curtain h1 Height from floor to bottom light beam
2 Front light curtain h2
3 Right light curtain
Height from floor/conveyor to bottom light
beam
4 Rear light curtain
Height of the bottom light beamCutter
h1 (items 1 and 3)
[mm]
h2 (items 2 and 4)
[mm]
Cutter without material transport min. 640 min. 640
