Chapter 1 Introducing the VDSL Router
Basic Home Station VDSL2 P8701T User’s Guide
14

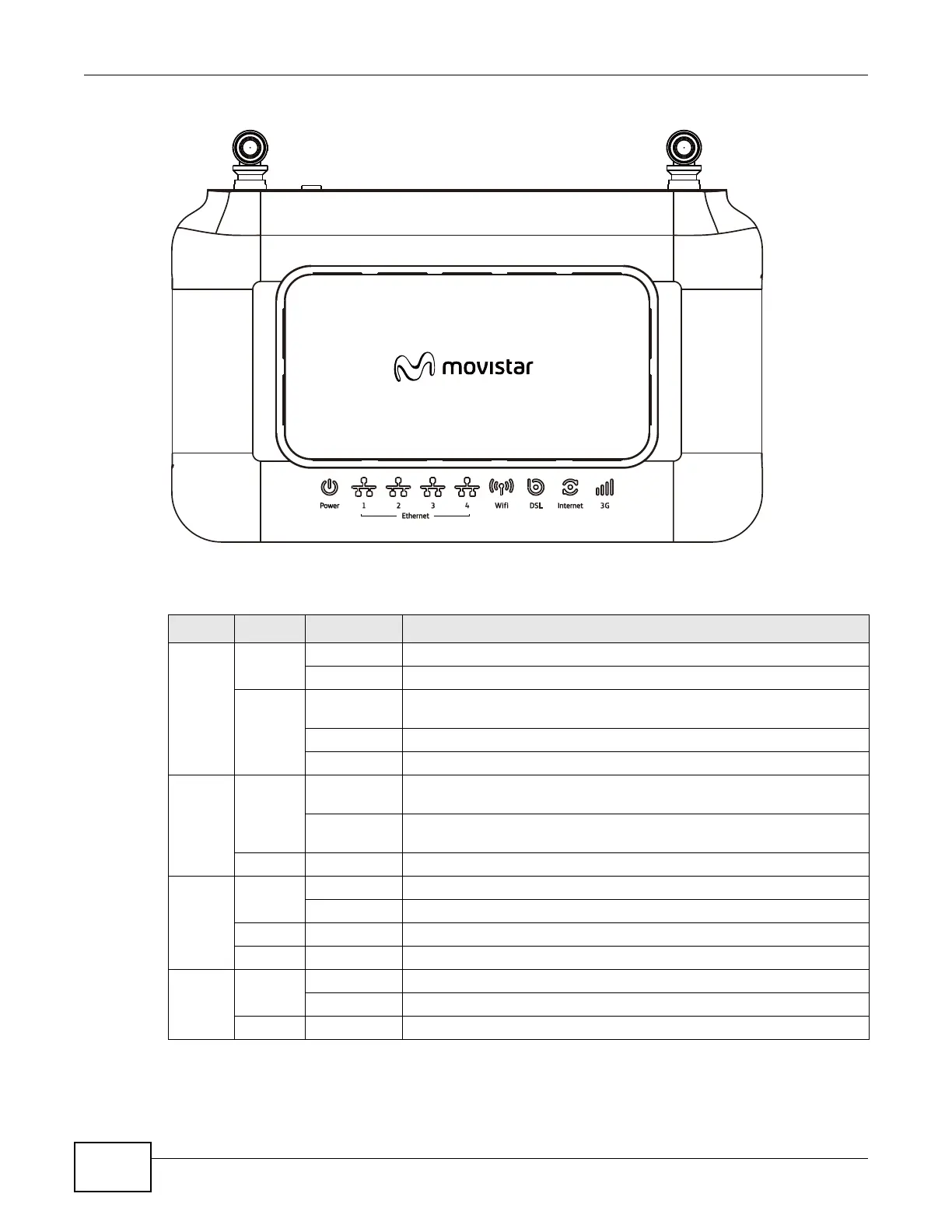

Figure 1 LEDs on the Device
None of the LEDs are on if the VDSL Router is not receiving power.
Table 1 LED Descriptions
LED COLOR STATUS DESCRIPTION
POWER Green On The VDSL Router is receiving power and ready for use.
Blinking The VDSL Router is self-testing.
Red On The VDSL Router detected an error while self-testing, or there is a
device malfunction.
Off The VDSL Router is not receiving power.
Blinking Firmware upgrade is in progress.
Ethernet
1-4
Green On The VDSL Router has a successful 100 Mbps Ethernet connection with a
device on the Local Area Network (LAN).
Blinking The VDSL Router is sending or receiving data to/from the LAN at 100
Mbps.
Off The VDSL Router does not have an Ethernet connection with the LAN.
Wifi Green On The wireless network is activated.
Blinking The VDSL Router is communicating with other wireless clients.
Orange Blinking The VDSL Router is setting up a WPS connection.
Off The wireless network is not activated.
DSL Green On The DSL line is up.
Blinking The VDSL Router is initializing the DSL line.
Off The DSL line is down.
