3D Systems, Inc.
42
• Change or reset values, such as Build Style, Shrink Comp (%), and Units. (See “Default Job Options Dialog Box” in the 3-D
Modeling Client online Help for job options denitions.)
• Parts shrink in X and Y. The degree of shrinkage depends on part geometry. To improve part accuracy, apply the X, Y, and Z
Shrink Comp (%) values then measure your parts and rene these values. Refer to 8.10 Shrink Compensation for ProJet®
VisiJet® Materials.

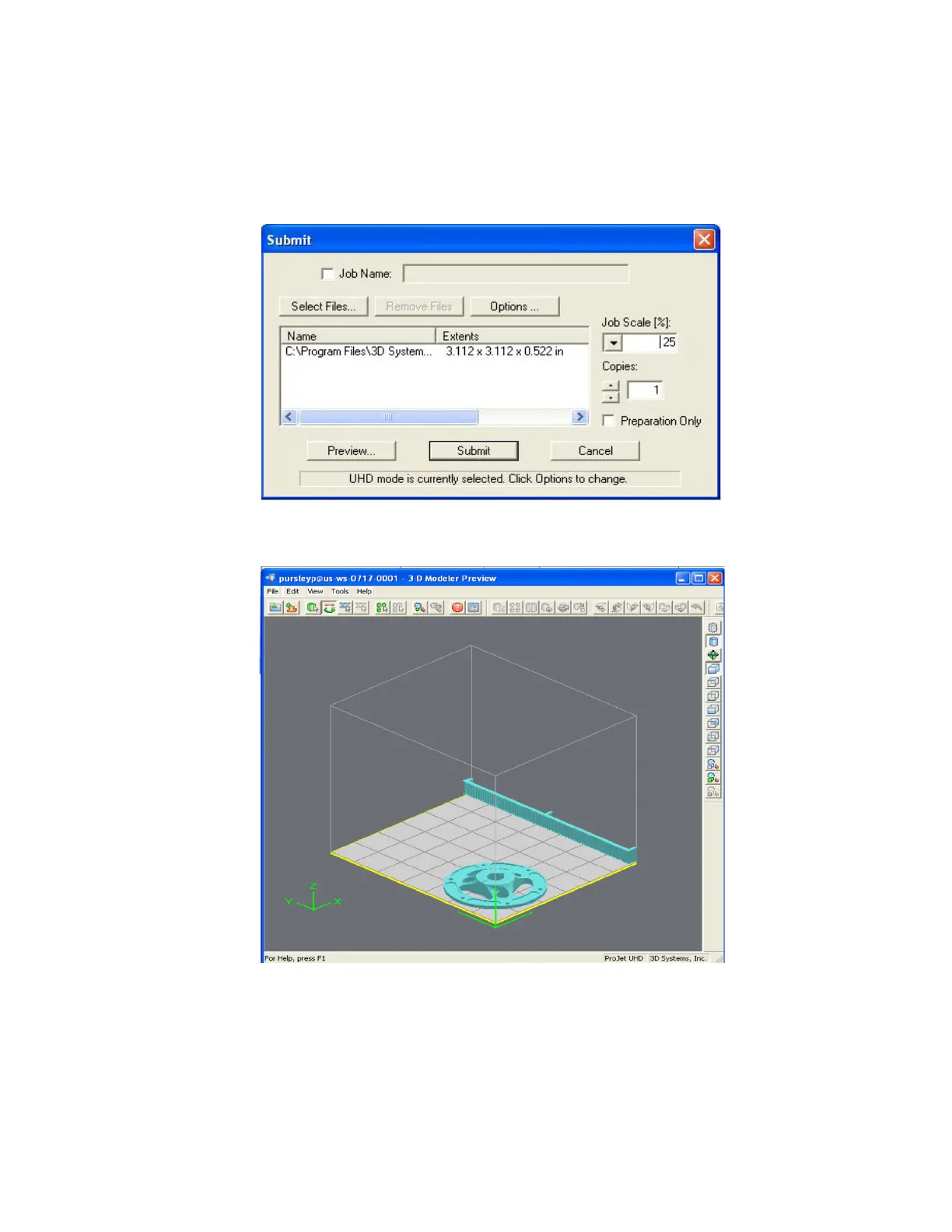

• Click Preview on Submit dialog box. If the le you are trying to preview is beyond the threshold of a certain le size, the system
will automatically access the Bounding Box Display feature. See Section 8.1 Preview Build Job for details.
• Manipulate parts interactively in the Preview window’s virtual printer 3-D build workspace.
