383D SYSTEMS, INC. PN:80-D27 Rev.B
Icon Description
Access button for Preparation Menu (see section "Preparation menu" on page 39)
Access button for Manufacturing Menu (see section "Manufacturing menu" on page 47)
Access button for User Level Selection (see section "User level selection" on page 51)
Access button for Settings Menu page (see section "Setting menu" on page 52)
Access button for the Machine Status page (see section "Machine Status menu" on page 50)
This button enables chamber lighting. It is always available for use
Machine off button (see section "Shutting printer down" on page 66)
Close Application button (see section "Closing / opening PX Control application" on page 66)
5
SYSTEM USE

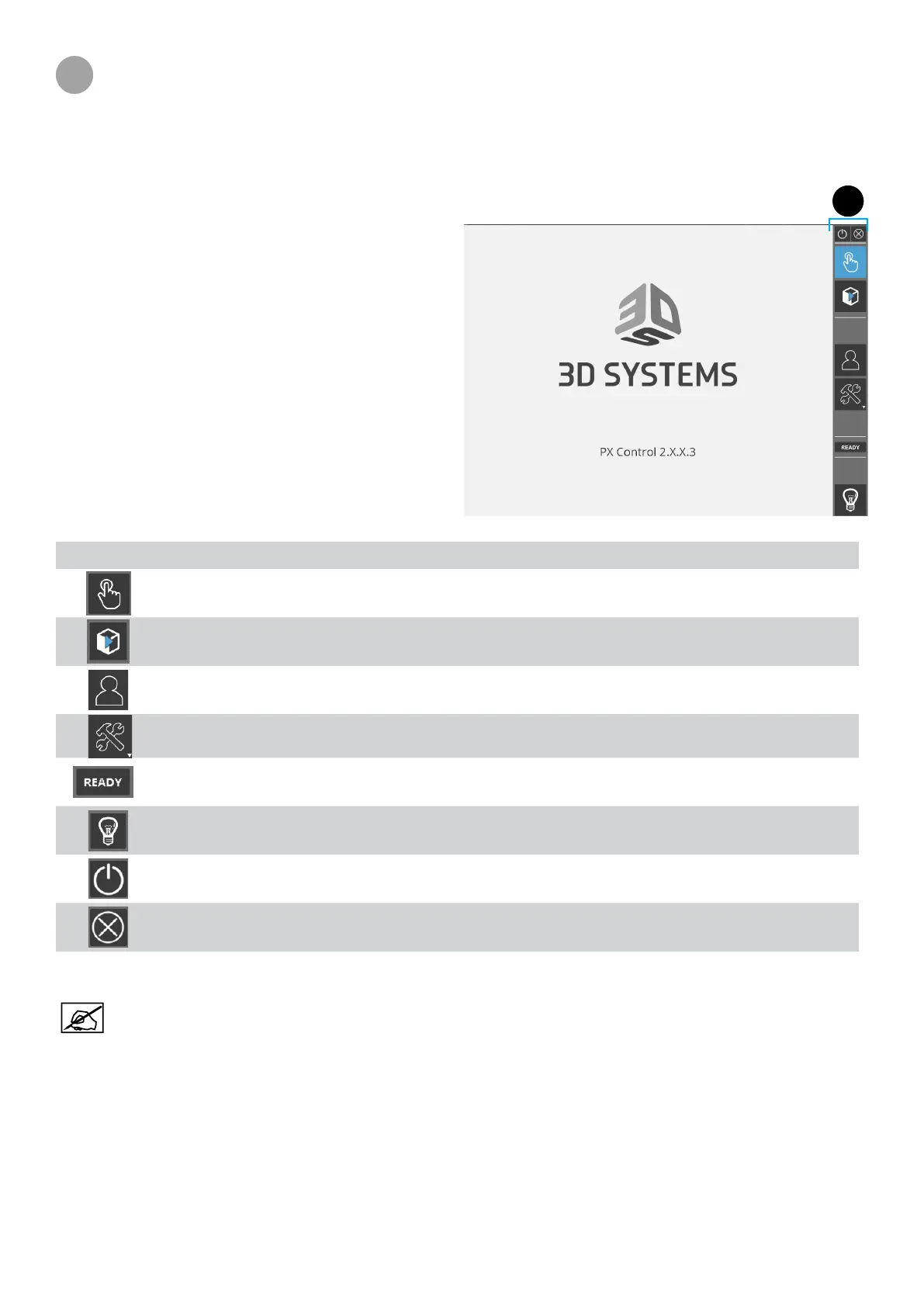

USER INTERFACE
After the start of the ProX
®
DMP300 machine, PX Control V2 automatically opens. By default, the Operator level is logged
at the start of the machine. Only Operator functions are available from the main tool bar (1).
NOTE: The text displayed on the Machine Status access button indicates the current status of the
machine:
• INIT : the machine is initializing (during start-up or after an emergency shutdown),
• READY : the machine is operational,
• UNLOCK : the machine is in unlocked mode (front doors or sas door opened, or unlocked),
• RESET : the machine is reinitializing (after a STOP button, or a relock of the doors),
• MANUF : the machine is manufacturing,
• C.B. : the machine is on a cycling break, during manufacturing,
• PREPA : the machine is on a preparation cycling,
• MAINT : the machine is in maintenance mode.
The main tool bar (1) consists of :
1
