Preparation menu

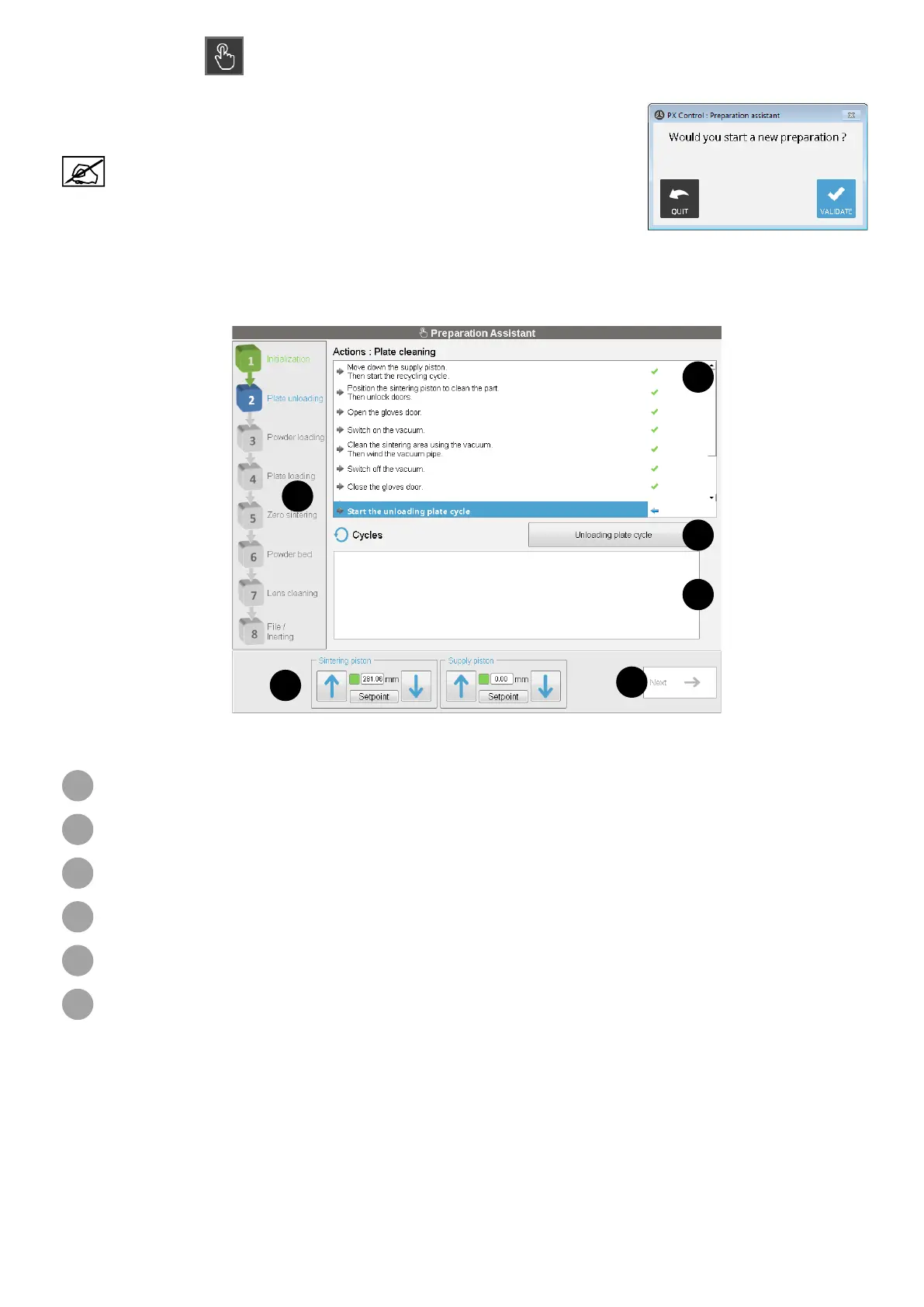

By clicking on the Preparation Menu button, the “PX Control : Preparation assistant” window appears.
Click "Validate" to conrm, or "Quit" to cancel.
NOTE: This window will appear only if the machine has nished the
previous preparation. Otherwise, the application will display the
Preparation Assistant window at the current step.
The Preparation Menu allows user to prepare the printer to print a job, and to unload the building plate when completed.
This menu is composed by 8 successive steps. Each step shows manual and automatic actions to be performed, and
consists of :
1
2
4
6
5
3
1
LIST OF THE PREPARATION STEPS (GREEN: COMPLETED, BLUE: IN PROGRESS, GREY: NOT PERFORMED)
2
ACTIONS LIST OF THE CURRENT STEP TO BE PERFORMED BY THE OPERATOR
3
BUTTON TO LAUNCH THE AUTOMATIC CYCLE WHEN REQUIRED
4
ACTIONS EXECUTED DURING THE AUTOMATIC CYCLE
5
AVAILABLE COMMANDS OF THE CURRENT STEP
6
BUTTON TO NAVIGATE TO THE NEXT STEP
The 8 steps are explained on the next pages.
