Machine Status menu

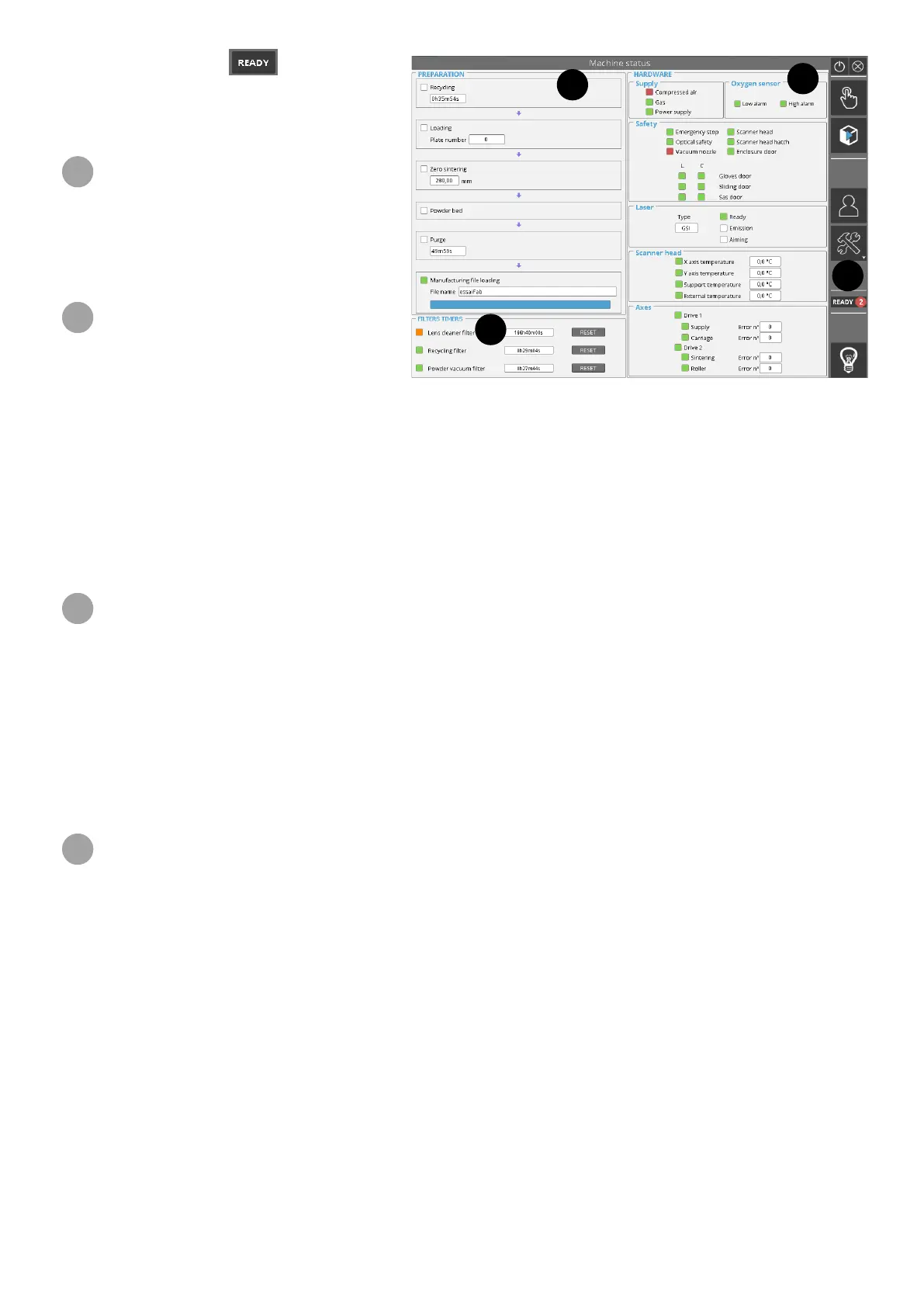

This menu displays a global view of the status of the
printer. It consists of 4 parts.
1
PREPARATION
Summary of operations of machine preparation,
• Green light = process complete
• No light = process not complete
2
HARDWARE
Status of components (Green light = OK, Red light =
fault)
• Supply : indicates the status of various power supplies of the machine: compressed air supply, gas supply, and
power supply,
• Oxygen sensor: indicates the status of the oxygen sensor (low/high alarm),
• Safety : includes all the safety of the machine and interlocks states (open, locked) that can block a movement or a
manufacturing start,
• Laser : indicates the type of laser, and its state,
• Scanner head : state of the thermo-couples, and the temperature values,
• Axes : indicates the state of the 2 drivers, of the 4 motors, and the corresponding error code.
3
FILTERS TIMERS
This area indicates the following information (in this order) for the Lens Cleaner lter, Recycling lter and Vacuum lter:
• Status of the lter operating hours:
• Green light: operating hours < 90% of the recommanded lter replacement
• Orange light (caution): operating hours > 90% and < 100% of the recommanded lter replacement
• Red light (warning): operating hours > 100% of the recommanded lter replacement
• Value of the current operating hours
Each timer can be reset by clicking on the "Reset" corresponding button, to be done after lter replacement.
4
WARNING TOOLTIP (encircled number)
Displayed only if one of the followings occures. It indicates the number of:
• orange lights activated of the lter timers: the corresponding number is displayed with orange background.
• red lights activated of the lter timers or any sensor fault: the corresponding total number is displayed with red back-
ground.
If both colors occur, the red one is only displayed.
If none of them occur, the tooltip is not displayed.
