863D SYSTEMS, INC. PN:80-D27 Rev.B
EVERY 6 MONTHS MAINTENANCE

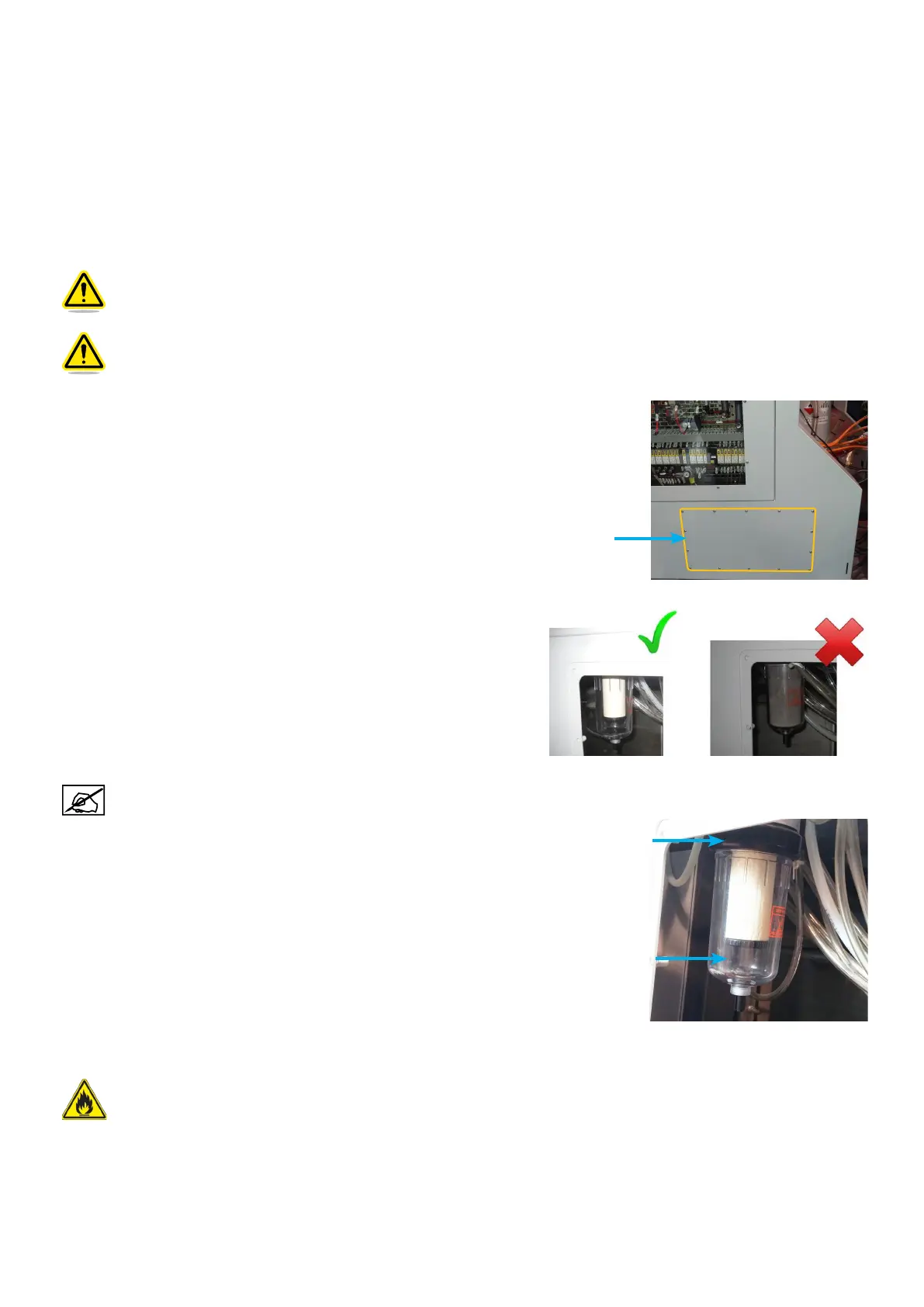

Clamping lter inspection/replacement
The clamping lter must be inspected once a month, and replaced every 6 months. The clamping lter is located on the
control cabinet.
Part required :
• Filter element : 1001884R00.
• Damp cotton cloth.
Caution: wear PPE (disposable rubber gloves, anti-static coverall, FFP3 respiratory protection, anti-static
safety shoes).
Caution: make sure the clamping system is not activated.
1. Remove the cover plate located at the bottom of the control cabinet.
2. Inspect the clamping lter :
• If metal powder is covering large surface of the lter element or is
found at the bottom of the lter guard, then proceed to the next
step.
• If the inspection does not reveal any presence of powder, then t
back the cover plate removed previously.
The following steps must be performed if the lter element contains excessive metal powder (see step 2)
or according to the recommended maintenance interval.
3. Remove the lter guard from the lter cap by unscrewing it.
4. Remove the lter element. Dispose of it in accordance with all local/
regional/national, state and federal regulations.
WARNING : FLAMMABLE POWDERS.
PLACE THE USED FILTER ELEMENT IN A CLOSED METALLIC CONTAINER IN A ROOM WITH FIRE DETECTION.
5. Clean the lter guard with the use of a damp cotton cloth.
6. Install the new lter element.
7. Replace the lter guard.
8. Fit back the cover plate previously removed.
Cover plate
Filter guard
Filter cap
