Aastra OpenCom 100 series User Manual

Installation
62
Actor/Sensor Ports
For the assignment of the ports, refer to the section Available Ports starting on
page 42. The OpenCom 100 also functions together with a Freehand Entry-Phone
manufactured by Siedle or Behnke.

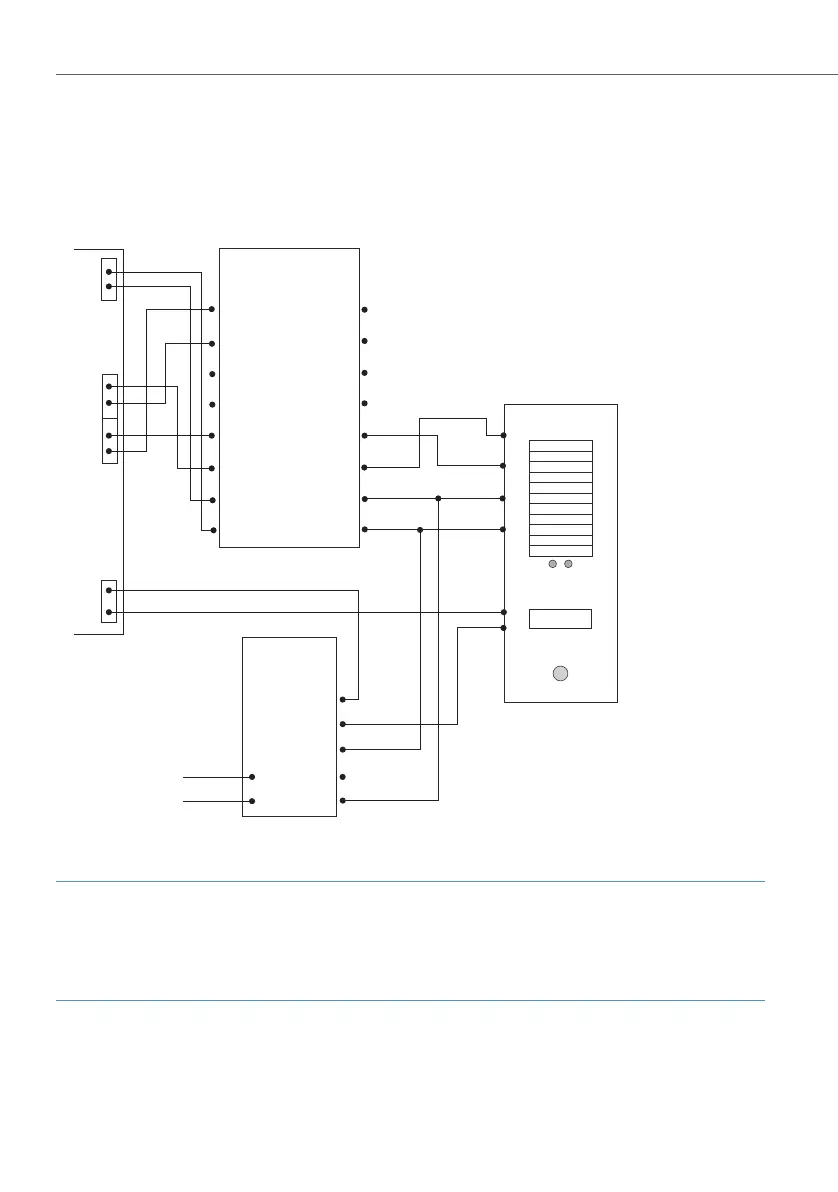

Connection of doorway equipment produced by Siedle
Note
The above diagram shows the usage of the “PVG 402-0” module (which merely
serves as an example). Other modules can also be operated, such as its successor,
“PVG 602-01”.
Door bell
Siedle
12
11
9
+
Sensor
Actor1
Actor2
a/b1
Door opener
Relay
PVG 402-0
Amplifier
c1
7
LW
1
12
11
9
+
To
Ts
-T
+T
To
Ts*
b
a
9
-
+
c
b
NG 402-02
Ac adapter
230 V ~
12 V ~
