Installation Configuring the CEI-620
CEI-100/CEI-200/CEI-x20 User’s Manual 12
Configuring the CEI-620
This section provides configuration information for the CEI-620.

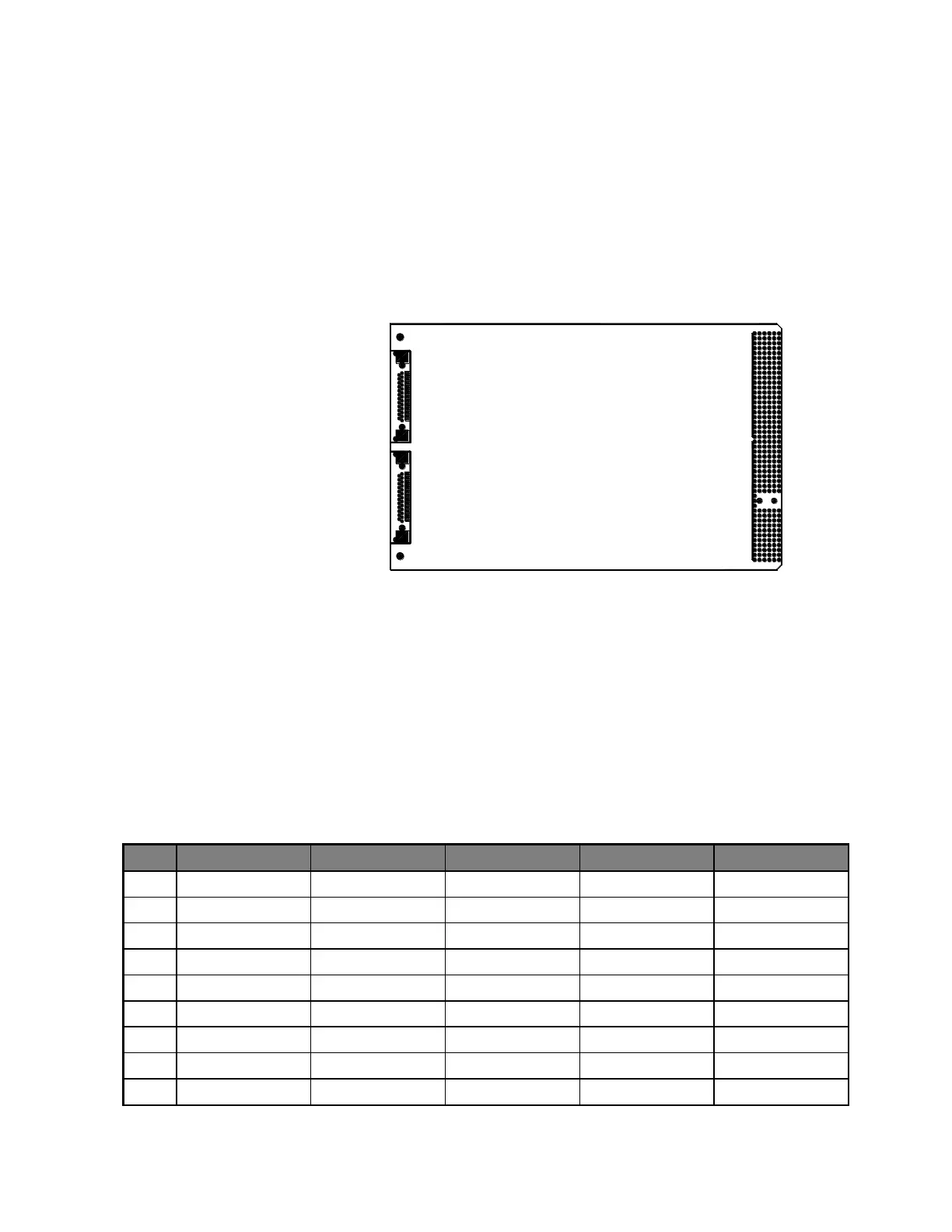

CEI-620 Outline Drawing
P1 Connector
(front panel)
P2 Connector
(front panel)
J2 Connector
(rear panel)
J1 Connector
(32 bit cPCI)
Figure 4. CEI-620 Outline Drawing
CEI-620 Input/Output Connector Pin Out
Use the cPCI J2 back plane connector to couple the CEI-620 to ARINC
devices and discrete inputs and outputs for rear panel configurations. For
front panel configurations, two connectors, P1 and P2, are provided. Each
connector is identical.
Table 7. CEI-620 Rear Panel Input/Output Connector Definition
Row a
Row b
Row c
Row d
Row e
22
Discrete Output 16
Discrete Output 12
Discrete Output 9
Discrete Output 6
Discrete Output 3
21
Discrete Output 15
Discrete Output 11
Discrete Output 8
Discrete Output 5
Discrete Output 2
20
Discrete Output 14
Discrete Output 10
Discrete Output 7
Discrete Output 4
Discrete Output 1
19
Discrete Output 13
Discrete Input 12
Discrete Input 9
Discrete Input 6
Discrete Input 3
18
Discrete Input 16
Discrete Input 11
Discrete Input 8
Discrete Input 5
Discrete Input 2
17
Discrete Input 15
Discrete Input 10
Discrete Input 7
Discrete Input 4
Discrete Input 1
16
Discrete Input 14
RX16B
RX16A
RX8B
RX8A
15
Discrete Input 13
RX15B
RX15A
RX7B
RX7A
14
RX14B
RX14A
RX6B
RX6A
