Installation Configuring the CEI-220
CEI-100/CEI-200/CEI-x20 User’s Manual 24
Pin
Signal
Pin
Signal
P3-16
TX8-
P3-35
RX8-
P3-17
TX9+
P3-36
RX9+
P3-18
TX9-
P3-37
RX9-
P3-19
GND (Note 1)

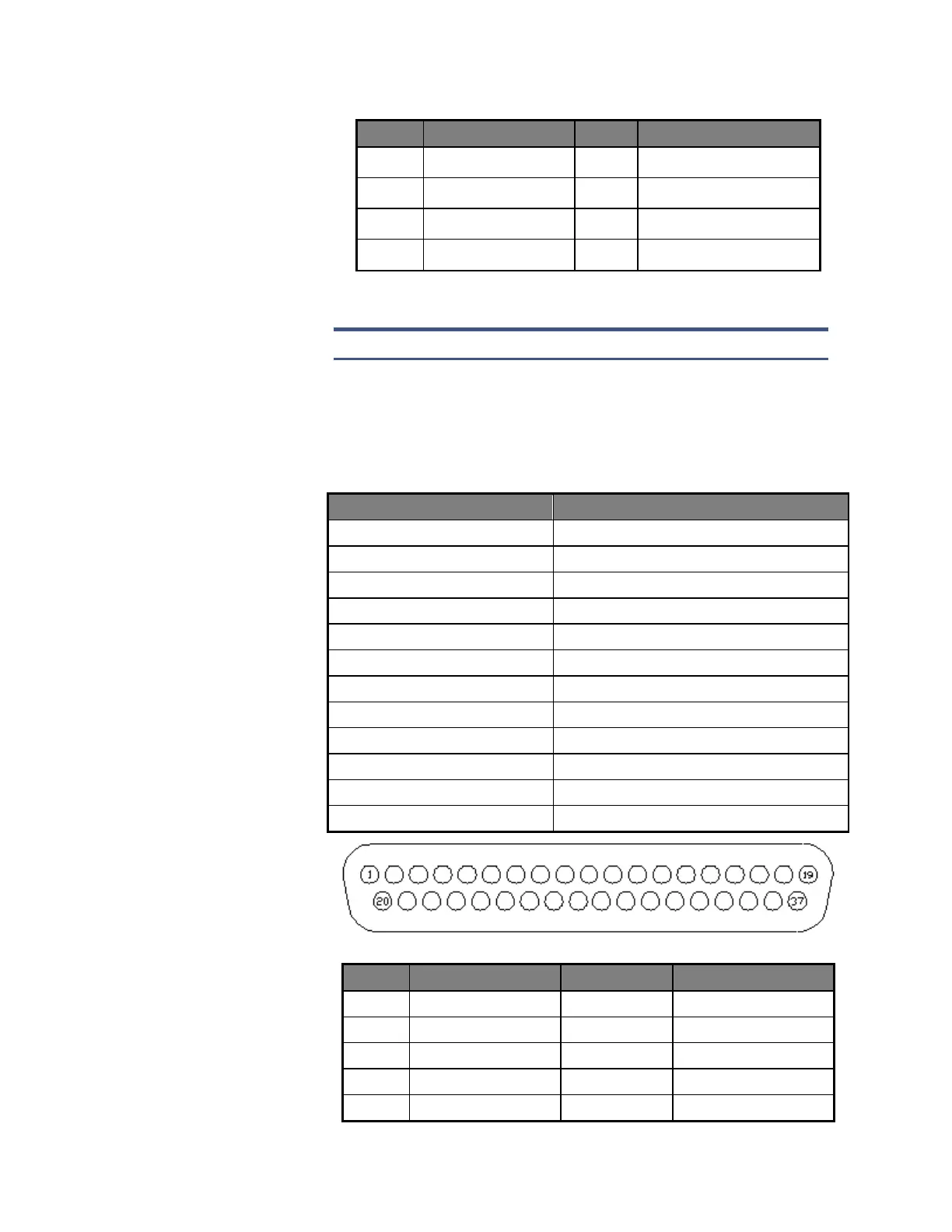

Figure 11. CEI-220 P3 Connector Pinout
See Table 18 for ARINC 561/568 configurations.
For configurations with ARINC 561/568 (six-wire) capability, pin
connections are made as follows:
Table 18. CEI-220 P3 Connector Change for ARINC 6-wire
Configurations
Pin
Signal
P3-9
ARINC 561 transmit data
P3-19
ARINC 561 transmit data ground
P3-11
ARINC 561 transmit clock
P3-19
ARINC 561 transmit clock ground
P3-13
ARINC 561 transmit sync
P3-19
ARINC 561 transmit sync ground
P3-28
ARINC 561 receive data +
P3-29
ARINC 561 receive data -
P3-30
ARINC 561 receive clock +
P3-31
ARINC 561 receive clock -
P3-32
ARINC 561 receive sync +
P3-33
ARINC 561 receive sync -
Pin
Function
Pin
Function
P4-1
TX10+
P4-20
RX10+
P4-2
TX10-
P4-21
RX10-
P4-3
TX11+
P4-22
RX11+
P4-4
TX11-
P4-23
RX11-
P4-5
TX12+
P4-24
RX12+
Note
