Installation Configuring the CEI-820
CEI-100/CEI-200/CEI-x20 User’s Manual 8
Configuring the CEI-820
This section provides configuration information for the CEI-820.
CEI-820 Outline Drawing

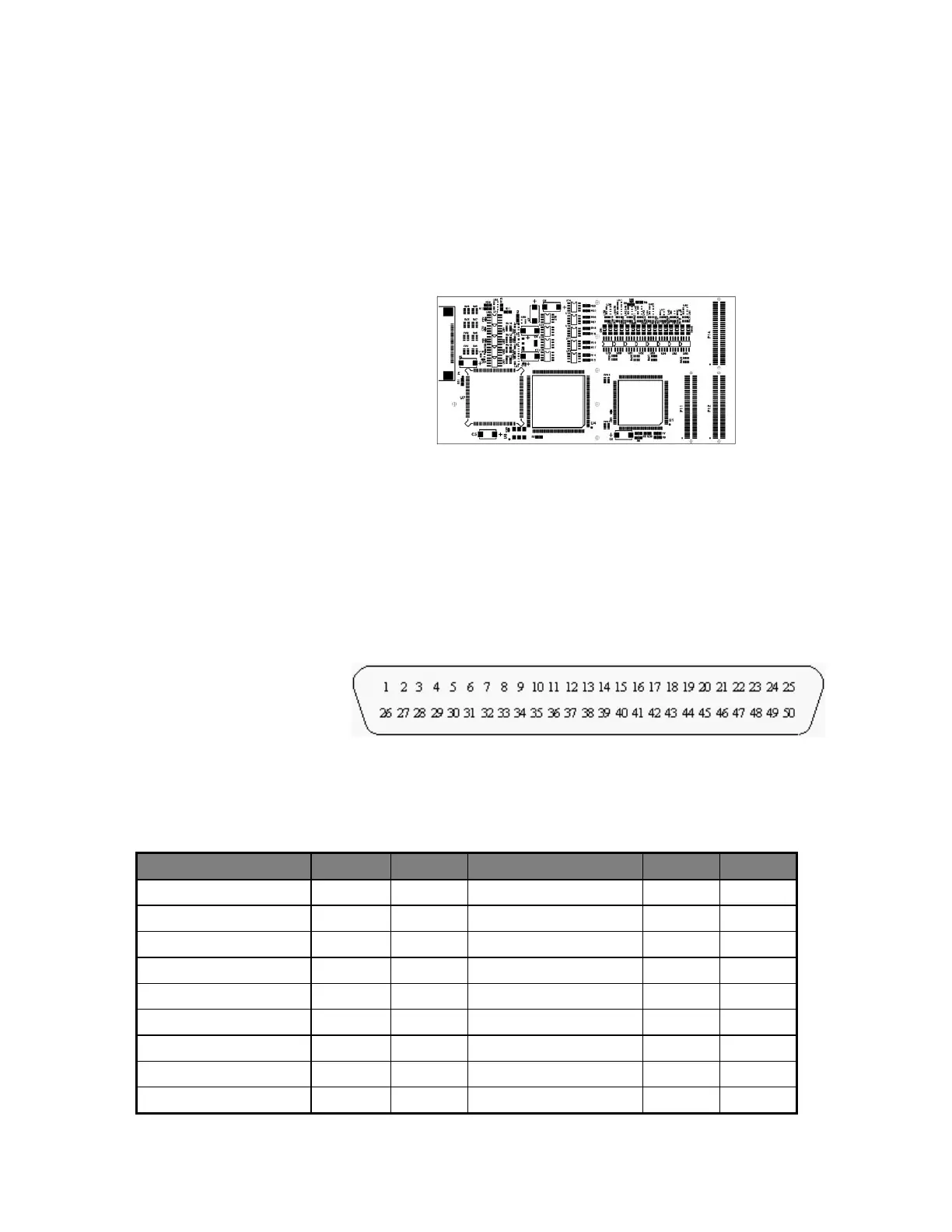

Figure 2. CEI-820 Outline Drawing
CEI-820 Input/Output Connector Pin Out
To couple the CEI-820 to ARINC devices and discrete inputs and outputs,
a front panel connector (P1) and a mezzanine PMC connector (P14) are
provided.
Figure 3. 50-pin P1 connector (AMP Champ 0.8 mm receptacle
connectors - AMP part number 787096-1)
Table 3. CEI-820-xx and CEI-820-xxJ Connector Definitions (P1 and P14)
Signal
P1 Pin
P14 Pin
Signal
P1 Pin
P14 Pin
TX8A
1
9
TX8B
26
10
TX7A
2
11
TX7B
27
12
TX6A
3
13
TX6B
28
14
TX5A
4
15
TX5B
29
16
TX4A
5
17
TX4B
30
18
TX3A
6
19
TX3B
31
20
TX2A
7
21
TX2B
32
22
TX1A
8
23
TX1B
33
24
RX8A
9
25
RX8B
34
26
